HDG Compact 25 - Installing the Automatic Cleaning System

4 Planning and installation – Installing the heating system
65
ATTACHING THE COVER PLATE
OF THE ASH REMOVAL DOOR
32.Set the two clamp handles (1 + 3) in a horizontal position.
33.Insert the cover plate (1) below with the recesses in the guides on
the boiler.
34.Press the cover plate (1) above into the pre-mounted shaped
studs on the boiler.
✓ The cover plate of the ash removal door is attached.
✓ The ash removal system is installed.
INSTALLING THE AUTOMATIC CLEANING SYSTEM
INSTALLING THE CROSSBEAMS 1. Release the pre-mounted M12 nuts from the short or long cross-
beam.
2. Place the two crossbeams (1) on the turbulators in the cleaning
shaft.
3. Bolt the crossbeams (1) onto the turbulators with the M12 19 mm
screws (4) and allowing about 2 mm clearance between nuts and
turbulator/crossbeam retainer.
4. Counter the M12 nuts with the 19 mm M12 lock nuts.

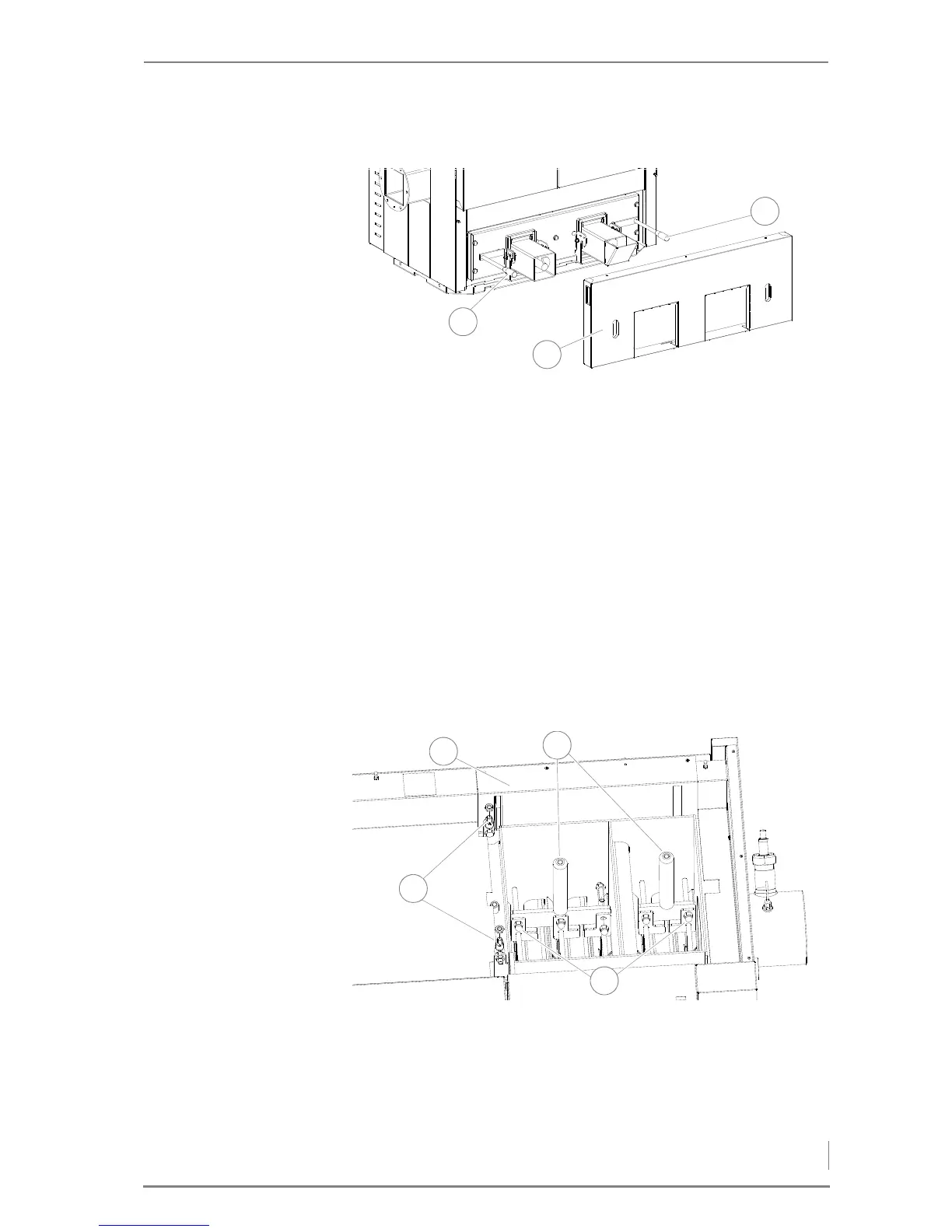

Figure 4/31 - Attaching the cover plate of the ash removal door
3
1
2
Figure 4/32 - Installing the crossbeams
1
4
3
1
