3 Mode of operation – Overview
17

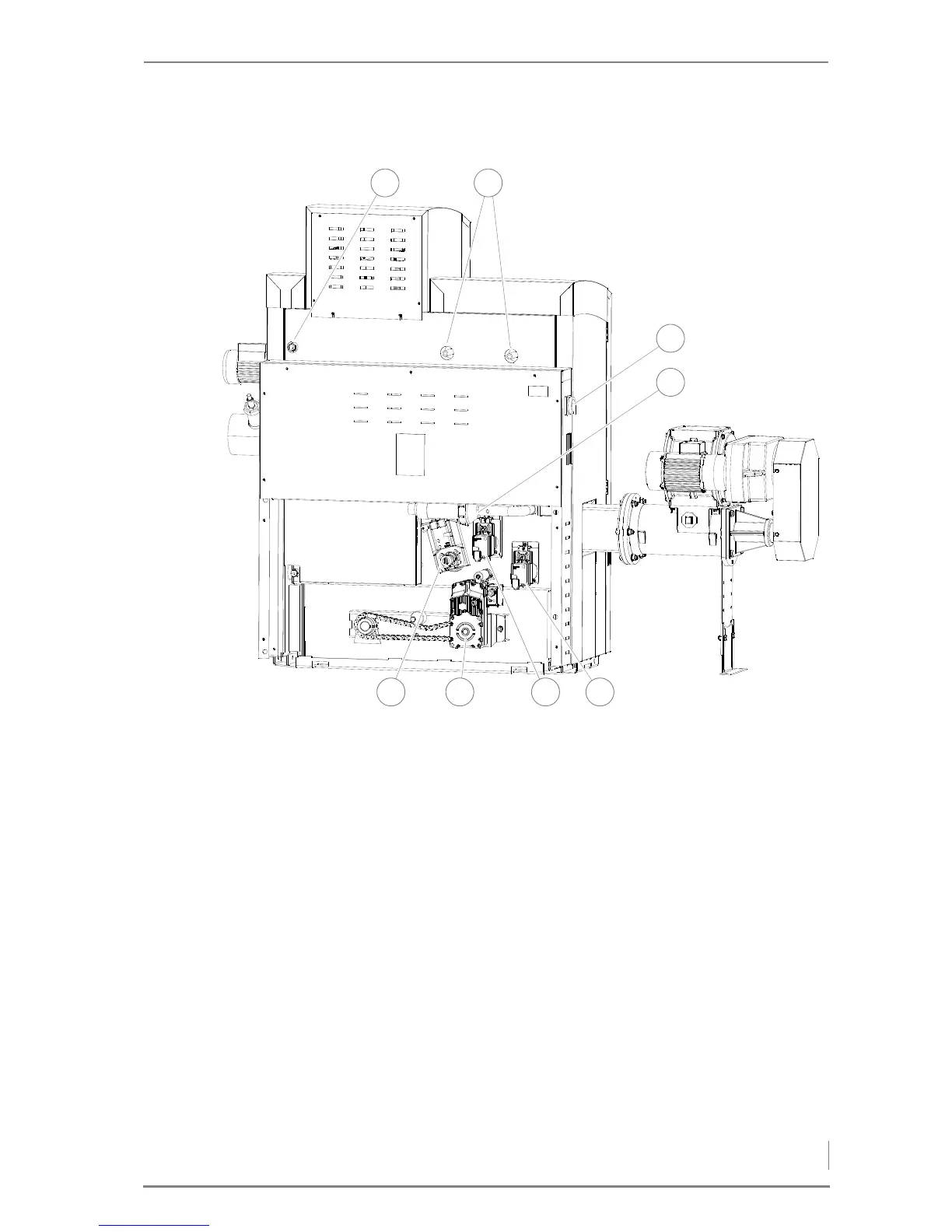

HDG COMPACT 25/35, BACK SIDE
1 Connection of immersion sleeve for thermal safety device
(DN 15 female)
2 Safety heat exchanger connections (DN 15, outside thread)
3Main switch
4 Ignition fan
5 Servo motor for primary air
6 Servo motor for secondary air
7 Ash removal motor
8 Grate tilting motor
Figure 3/2 - HDG Compact 25/35 boiler back side
8 7 6 5
4
3
21
