HDG Compact 25 - HDG Compact 45;50;65;80 Front Side

3 Mode of operation – Overview
18

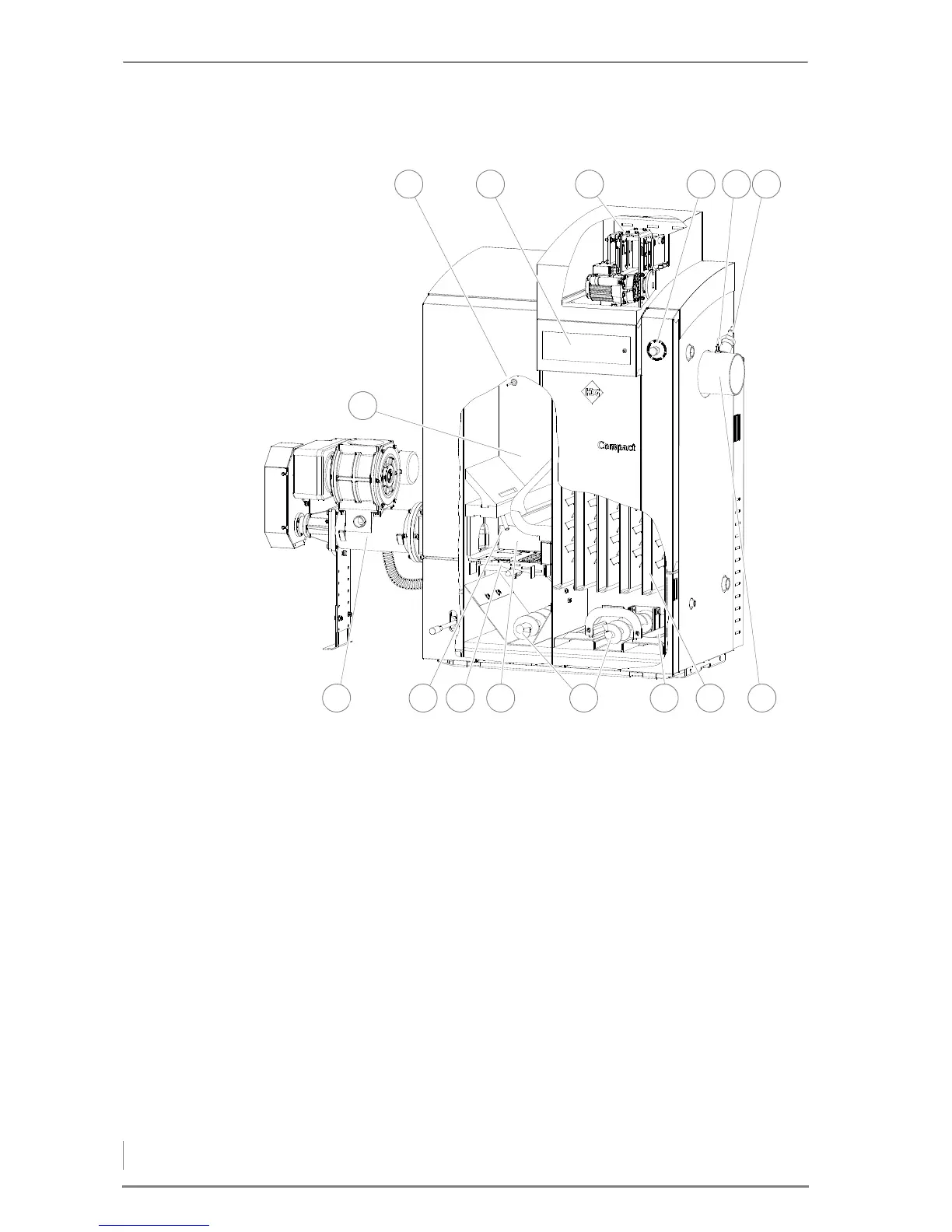

HDG COMPACT 45/50/65/80 FRONT SIDE
1 Combustion chamber temperature sensor
2 Control unit of HDG Compatronic
3 Cleaning system drive
4EMERGENCY STOP switch
5 Flue gas temperature sensor
6Lambda sensor
7 Flue pipe connection
8 Heat exchanger surfaces with cleaning turbulators in between
9 Walking floor for ash removal
10 Ash removal augers
11 Combustion chamber primary burning
12 Tilting grate
13 Ignition pipe
14 Feeding system
15 Combustion chamber secondary burning
Figure 3/3 - Front side of the HDG Compact 45/50/65/80 boiler
2
8 7
4 63
13
15
14
1 5
101112 9
