9. Screw on the nuts and check that the clamp handles clamp firmly.
✓ Grasp the clamp handles and tighten the ash containers solidly on
the ash removal door.
10.Lock the nuts with the cap nuts.
11.Close the ash containers in the reverse sequence.
✓ The ash containers are mounted and adjusted.
CONNECTING THE CHIMNEY
✎ See section “4.2 Connections” in this chapter.
1. Connect the flue pipe to the chimney connection.
2. Make sure that the connecting piece does not protrude into the
chimney.
3. Seal the connection to the chimney with highly fireproof silicone
or with a suitable mortar.
✓ The boiler is now connected to the chimney.
4.5 Delivery system
The description for planning, installation and operation of the em-
ployed delivery system can be found in the corresponding operating
manual.
✎ See the operating manual, "Delivery system".
6. Remove the cover from the
ash container.
7. Release the cap nuts (1) in the
ash container.
8. Adjust ash containers with
the nuts under the cap nuts
(1) until the clamping handles
latch firmly.

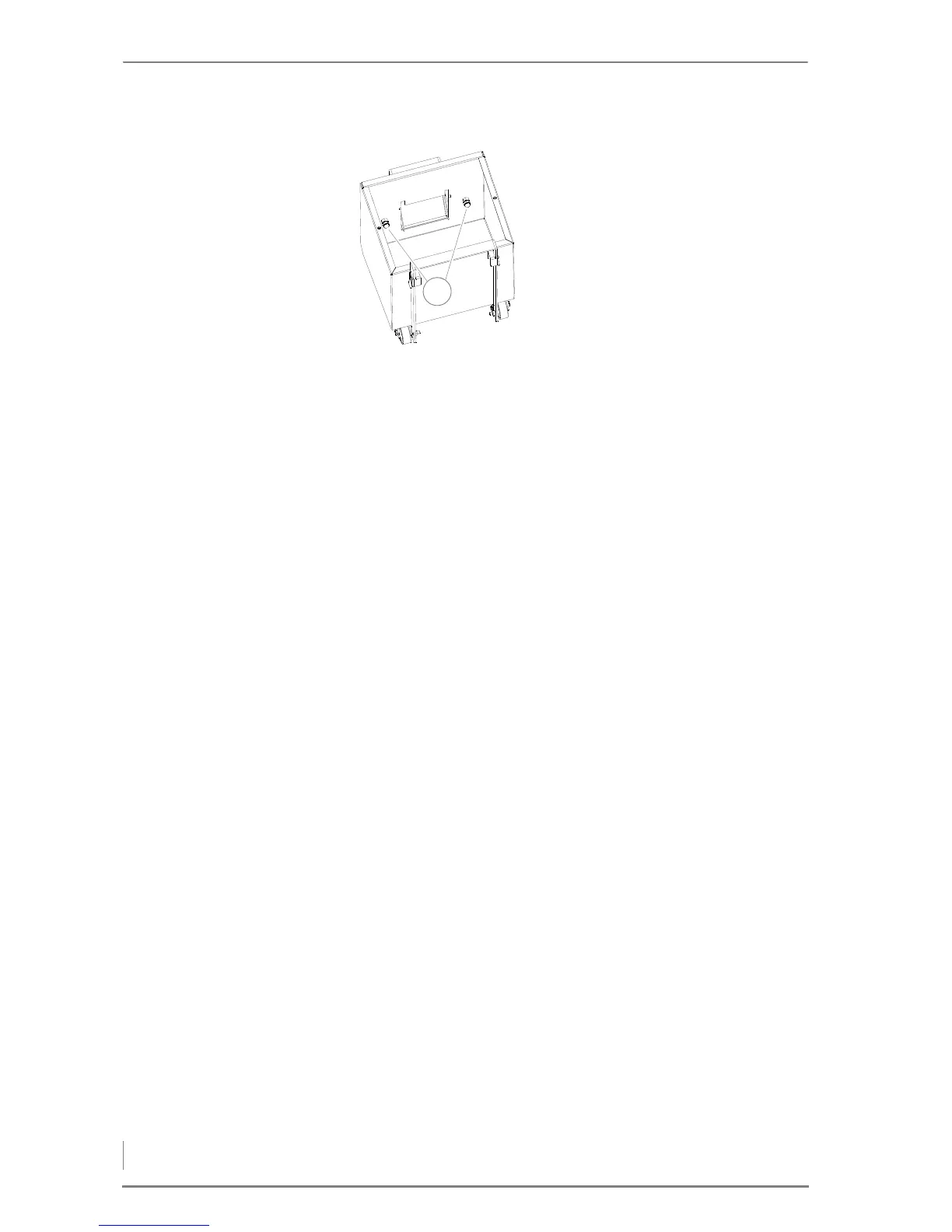

Figure 4/45 - Adjusting the ash containers
