HDG Compact 25 - Dimensions on Flue Pipe Side, HDG Compact 45;50;65;80

4 Planning and installation – Connections
51
DIMENSIONS ON FLUE PIPE SIDE, HDG COMPACT 45/50/65/80
1 Boiler supply connection
(HDG Compact 45/50/65: DN 32 inside thread; HDG Compact 80:
DN 40, inside thread)
2 Flue pipe connection
(HDG Compact 45/50/65: Ø 180 mm; HDG Compact 80: Ø 200 mm)
3 Boiler return connection
(HDG Compact 45/50/65: DN 32 inside thread; HDG Compact 80:
DN 40, inside thread)
4 Filling / draining connection (DN 15, inside thread)

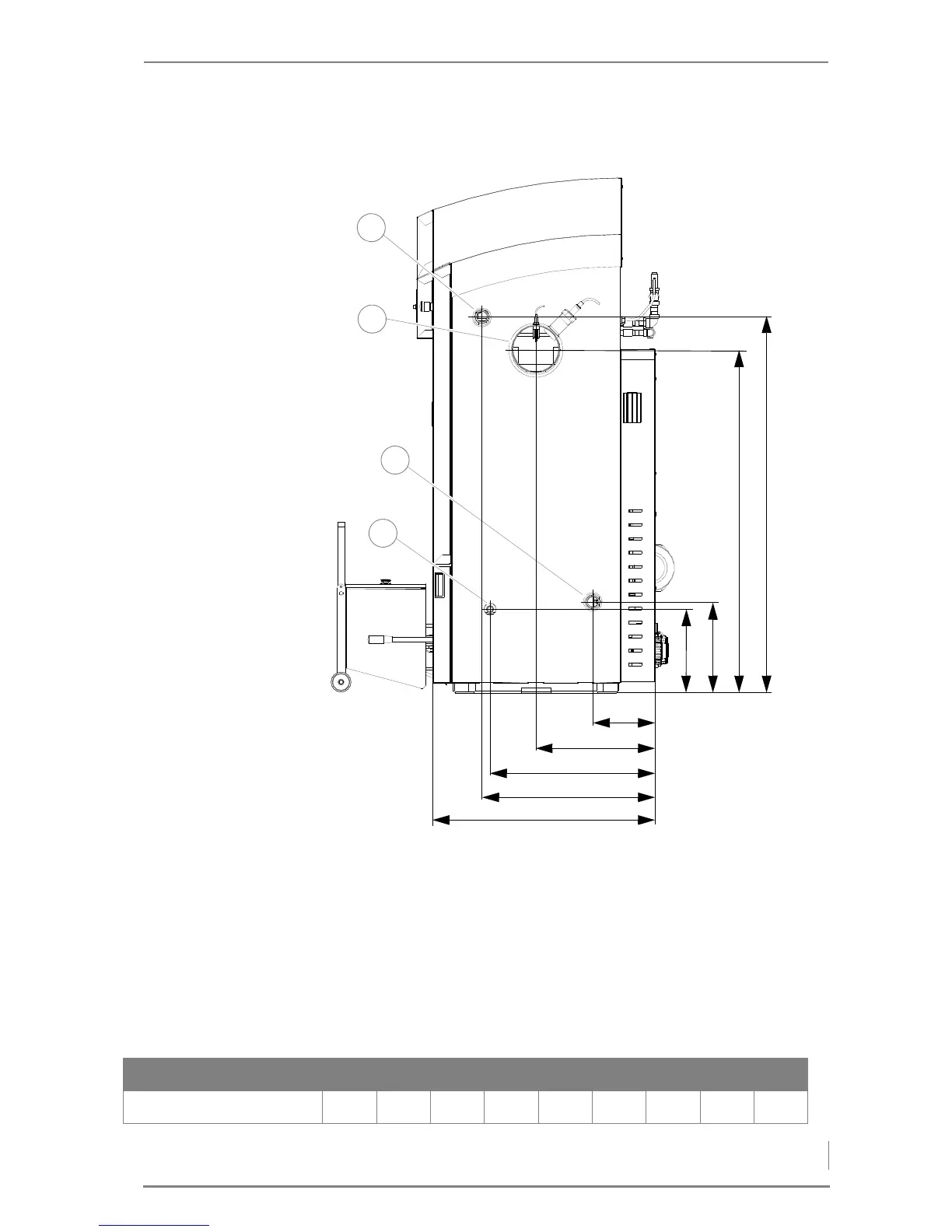

Figure 4/10 - Dimensions on flue pipe side HDG Compact 45/50/65/80
B
E
F
G
H
I
A
D
C
1
4
3
2
Model A B C D E F G H I
HDG Compact 45/50/65/80 1400 1280 340 310 234 445 615 646 830
Table 4/5 - Dimensions on back side HDG Compact 45/50/65/80 (mm)
