INSTALLING THE AUTOMATIC ASH REMOVAL SYSTEM -
HDG COMPACT 25/35
INSTALLING THE ASH PLATES
3. Slide the ash plate (1) from the front on the feed side into the ash
compartment of the combustion chamber.
4. Slide the second ash plate (2) from the front into the fly ash com-
partment.
5. Bolt on the two ash plates with the M8 screws using a 13 mm
spanner.
✓ The two ash plates are installed.
1. Unscrew the cover of the cir-
cuit boards (1) with a Phillips-
tip screwdriver.
2. Unscrew the ash removal
cover (2) with a Phillips-tip
screwdriver.

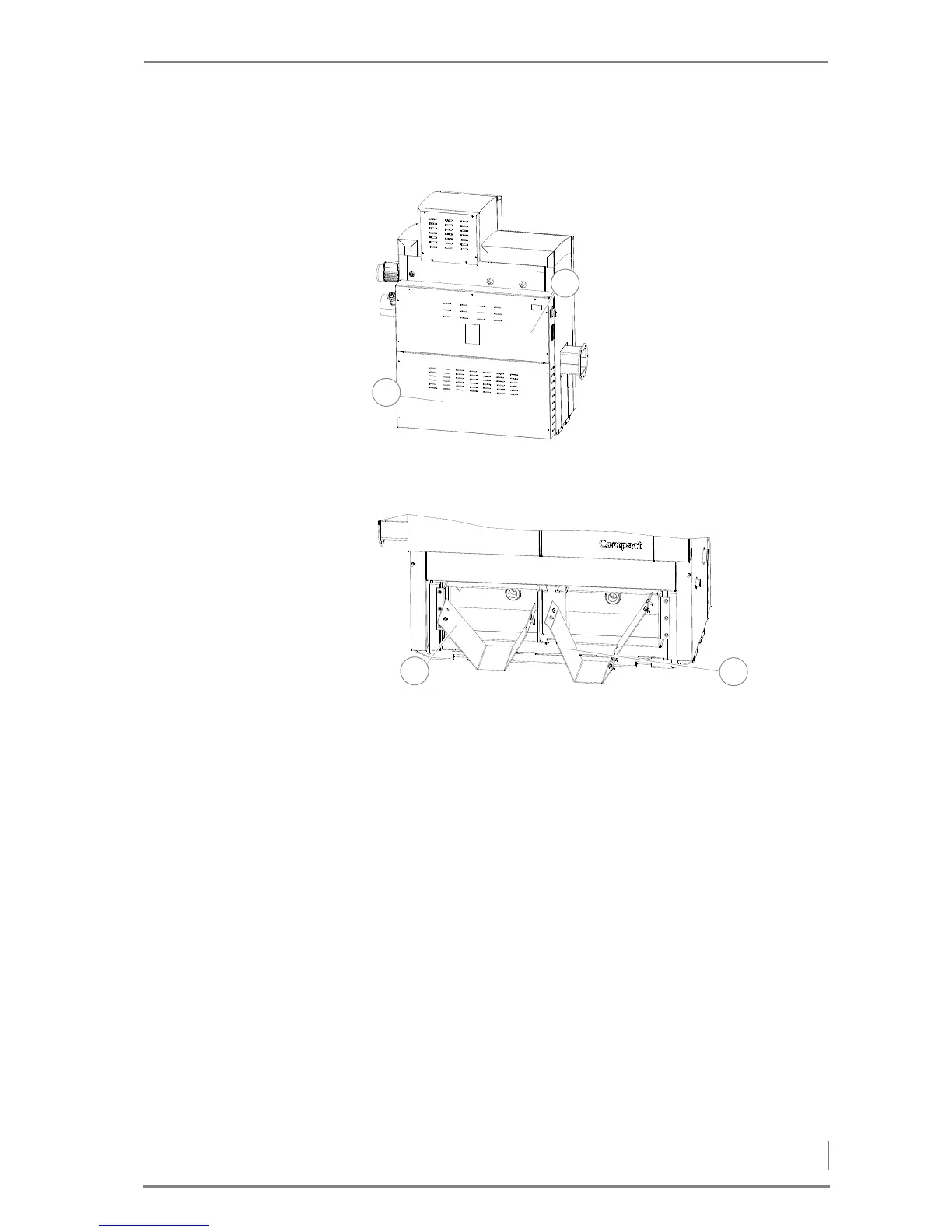

Figure 4/16 - Remove the rear covers
2
1
Figure 4/17 - Installing the ash plates
1
2
