ATTACHING THE CLEANING
SHAFT LID
5. Mount the blind side cover (1) with the two Phillips-head screws.
6. Unscrew the two 19 mm M12 nuts on the hinges (2) of the
cleaning shaft lid on the boiler.
7. Fold up the hinges (2).
8. Place the cleaning shaft lid (1) on the boiler.
9. Guide the screws (2) of the hinges into the holes on the cleaning
shaft lid (1).
10.Bolt on the cleaning shaft lid (1) with the M12 nuts on the hinges
using a 19 mm spanner.
11.Open the cleaning shaft lid (1).
Warning!
Danger of injury
The cleaning shaft lid is very heavy. Hands can become crushed
when installing it.
Always take care not to grasp under the cleaning shaft lid when put-
ting it on.

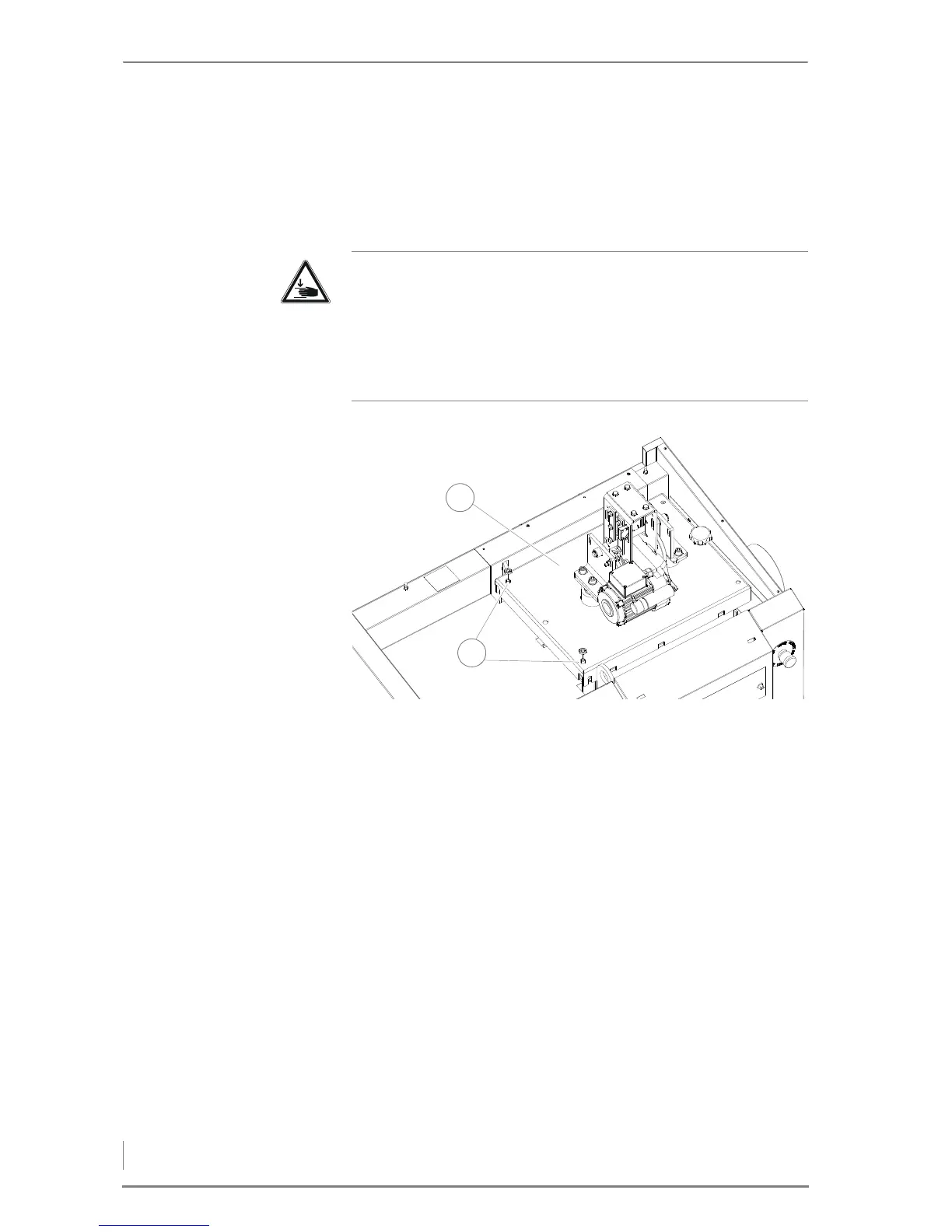

Figure 4/33 - Putting on the cleaning shaft lid
