4 Planning and installation – Thermal safety device
80
HDG COMPACT 25/35
1 Connection of immersion sleeve for thermal safety device (DN 15,
inside thread)
2 Safety heat exchanger connections (DN 15, outside thread)
HDG C
OMPACT 45/50/65/80
1 Connection of immersion sleeve for thermal safety device (DN 15,
inside thread)
2 Safety heat exchanger connections (DN 15, outside thread)
Important!
In order to prevent leaks, avoid turning the connections of the sa-
fety heat exchanger anticlockwise when installing the thermal sa-
fety device.

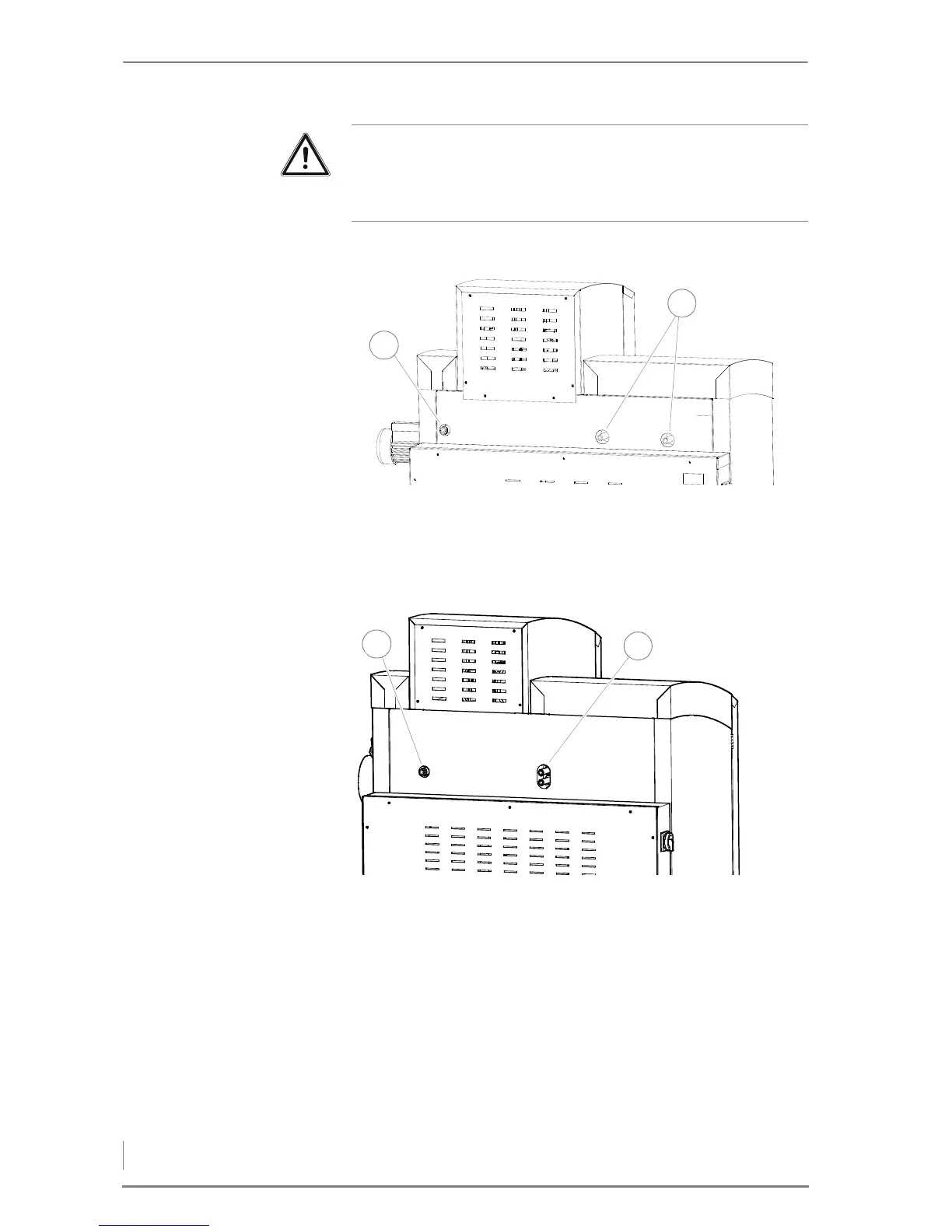

Figure 4/52 - Installing the thermal safety device HDG Compact 25/35
1
2
Figure 4/53 - Installing the thermal safety device (HDG Compact 45/50/65/80)
1
2
