e) Slide the retention clip forward until it stops near the cable connector. Doing this will ensure that the
retention clip functions properly in the event the cable is pulled on for some reason.

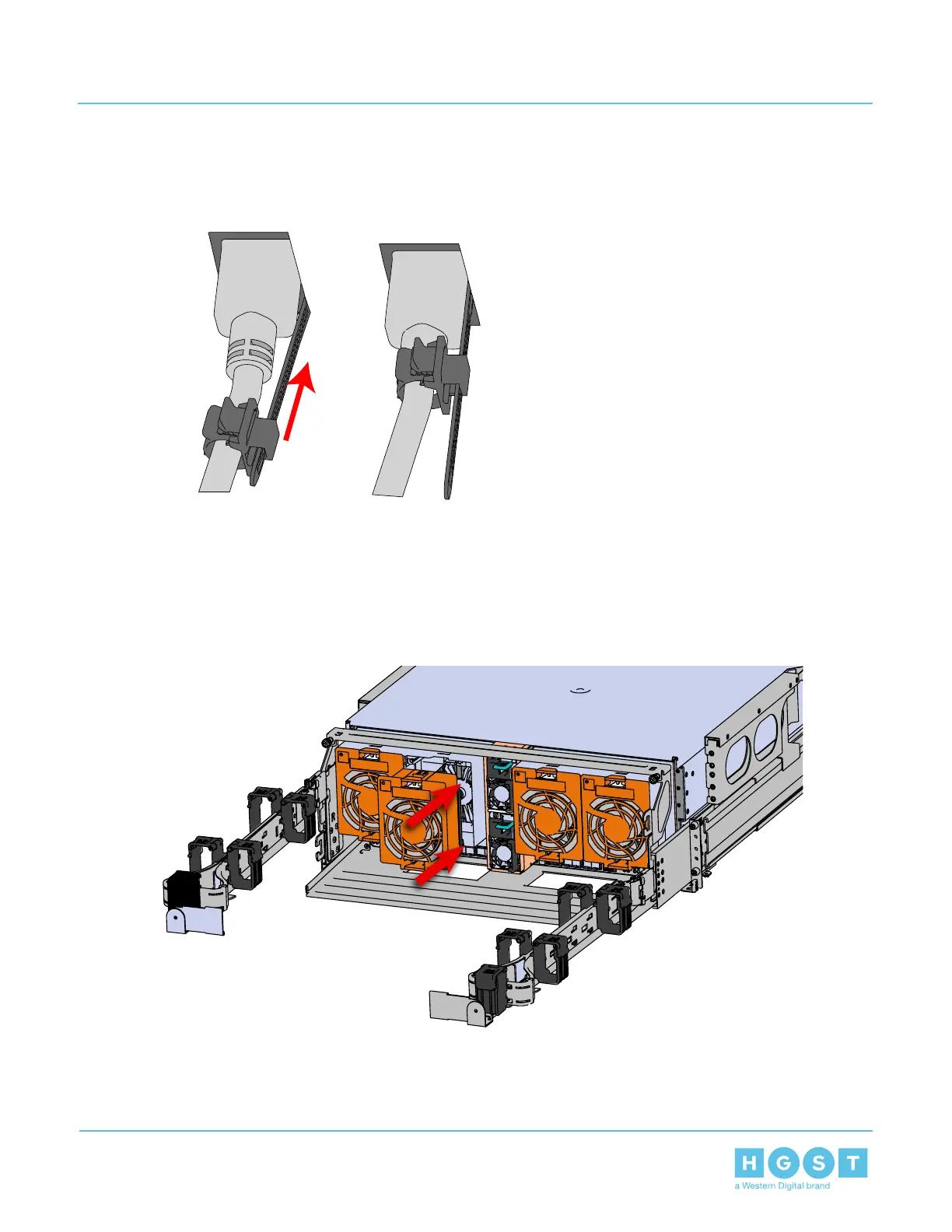

Figure 155: Cinching Cable Retention Clip
41. Install the second PSU.
42. Install Rear Fan
a) Orient the rear fan as shown in the following image.
b) Insert the rear fan into the housing as shown in the following image.
Figure 156: Installing the Rear Fan
43. Install the rest of the rear fans into the rear of the enclosure.
44. Install the upper CMA.
134
4 Part Replacement
User Guide 4.9 Chassis Replacement
