a) Orient the CMA so that the elbow is on the right hand side as it is being installed.

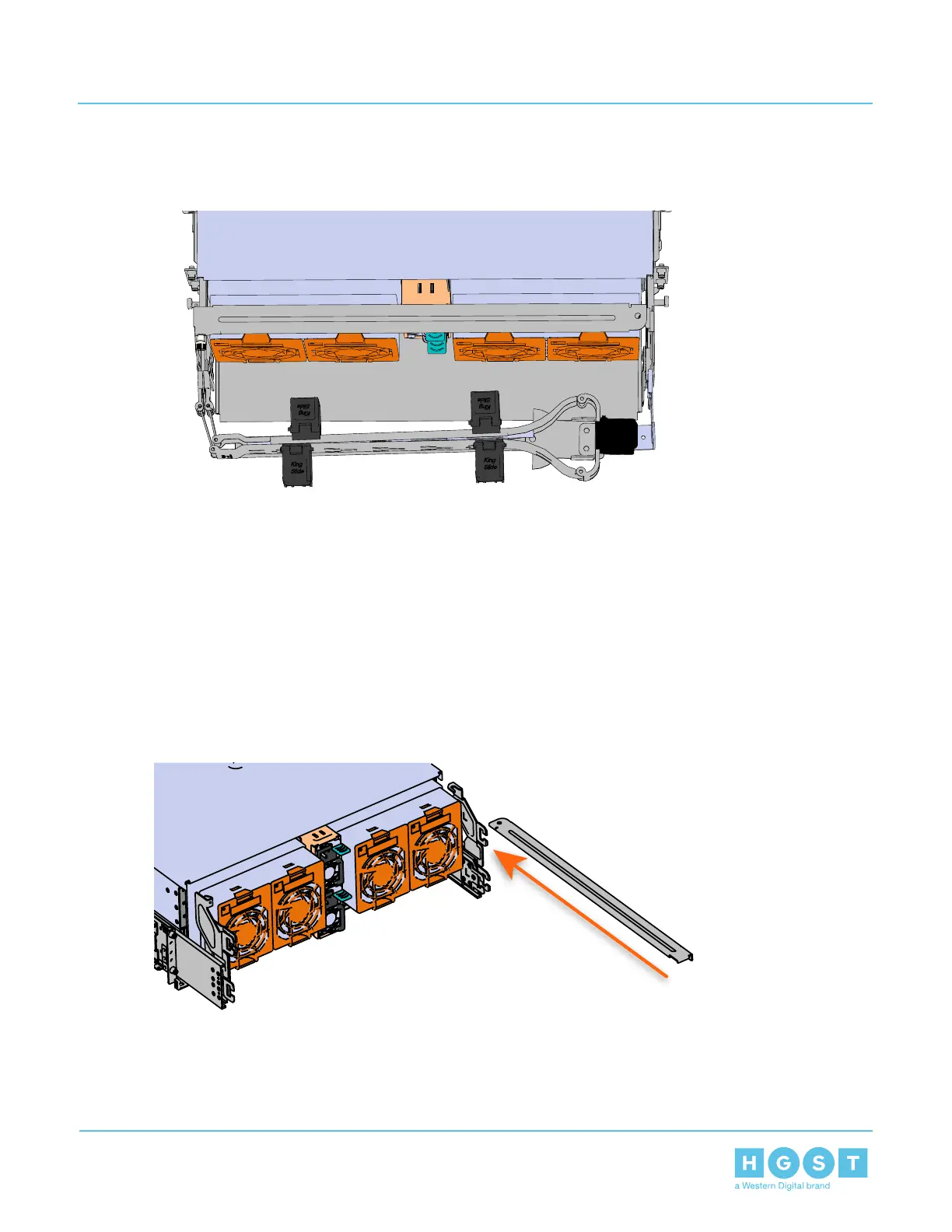

Figure 157: Upper CMA Orientation
b) Attach all of the connectors to the brackets on the rails and chassis. There should be one at the elbow
side and two on the left hand side.
45. Install the crossbar onto the CMA mounting bracket.
a) Align the crossbar with the mounting peg facing down and pointing toward the CMA mounting bracket.
Figure 158: Initial Alignment
135
4 Part Replacement
User Guide 4.9 Chassis Replacement
