HGST Ultrastar Data60 H4060-J User Manual

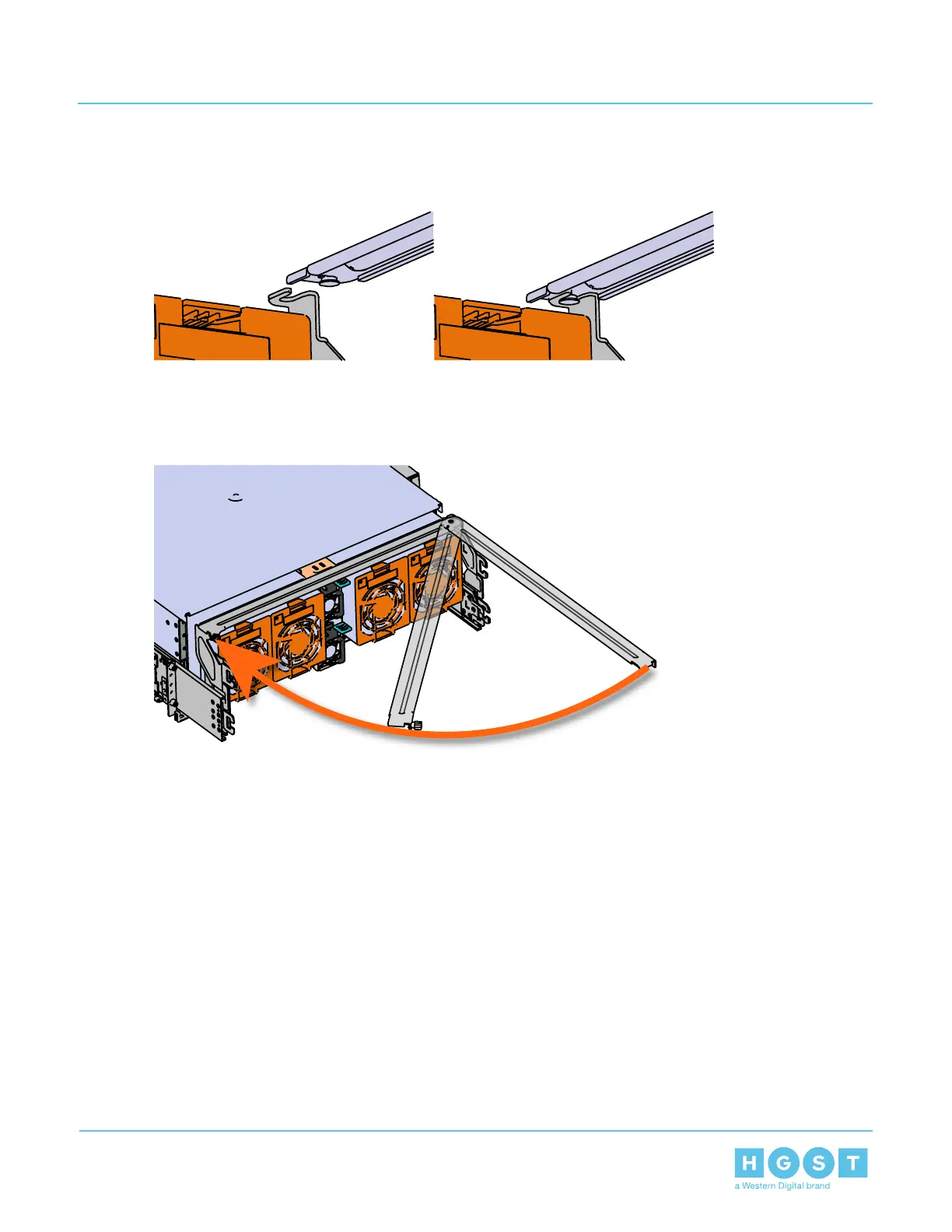

b) Insert the peg on the underside of the crossbar into the slot on the CMA mounting bracket.
Figure 159: Crossbar Underside Peg
c) Swing the crossbar so that the thumbscrew lines up with the mounting hole on the opposite side of
the enclosure.
Figure 160: Swinging Motion of Crossbar to Locking Position
136
4 Part Replacement
User Guide 4.9 Chassis Replacement
