Servicing
TURN OFF all the power switches.

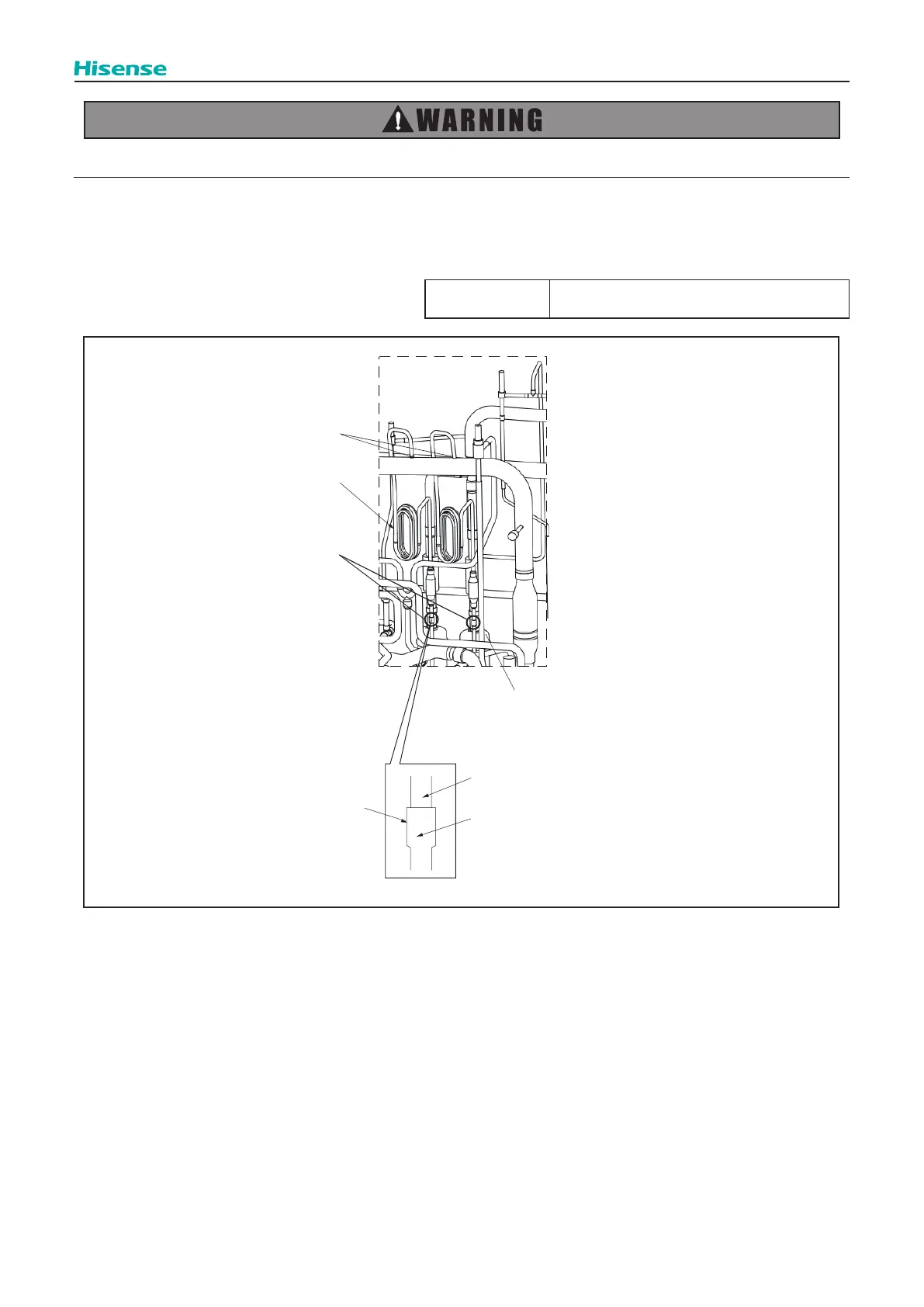

(5) Brazing (G) return oil circuit from (J) oil separator outlet port and (I) suction pipe brazing port at the point indicated in the
gure. Remove (G) return oil circuit from the unit. Then seal (I) suction pipe brazing port with 3M tape. Make sure the
high pressure gas can not leak from here.
Tool Adjustable Pipe Cutter, 3M Tape
(J) Brazing for
Oil Separator Outlet
(G) Return Oil Circuit
(Remove after cutting.)
(H) Oil Separator
(H) Oil Separator
(J) Brazing for
Oil Separator Outlet
(G) Return Oil Circuit
Detail of Cutting Position
(I) Brazing for
Oil Separator Outlet
