75
Transportation and Handling
2.2 Hanging Method
When hanging the unit, ensure a balance of the unit, check to ensure safety and lift up smoothly.
(1) Do not remove any packing materials.
(2) Hang the unit in packaged state with two wire ropes, as shown in Fig.2.1.
Do not apply any
force here.
(both sides)
Do not remove
corrugated paper frame
and plastic bands
Corrugated Paper Frame
Wooden Pallet
Wire Rope
Carefully guide the sling belts through
both side slots of the wooden pallet.
Bottom corners: Attach four
cardboard paddings with
thickness 19/32 in. (15mm)
on both sides at this point for
protection.
Apply ropes on the splints or
corrugated paper with
thickness greater than
19/32in. (15mm).
Angle of wire rope
greater than 60°

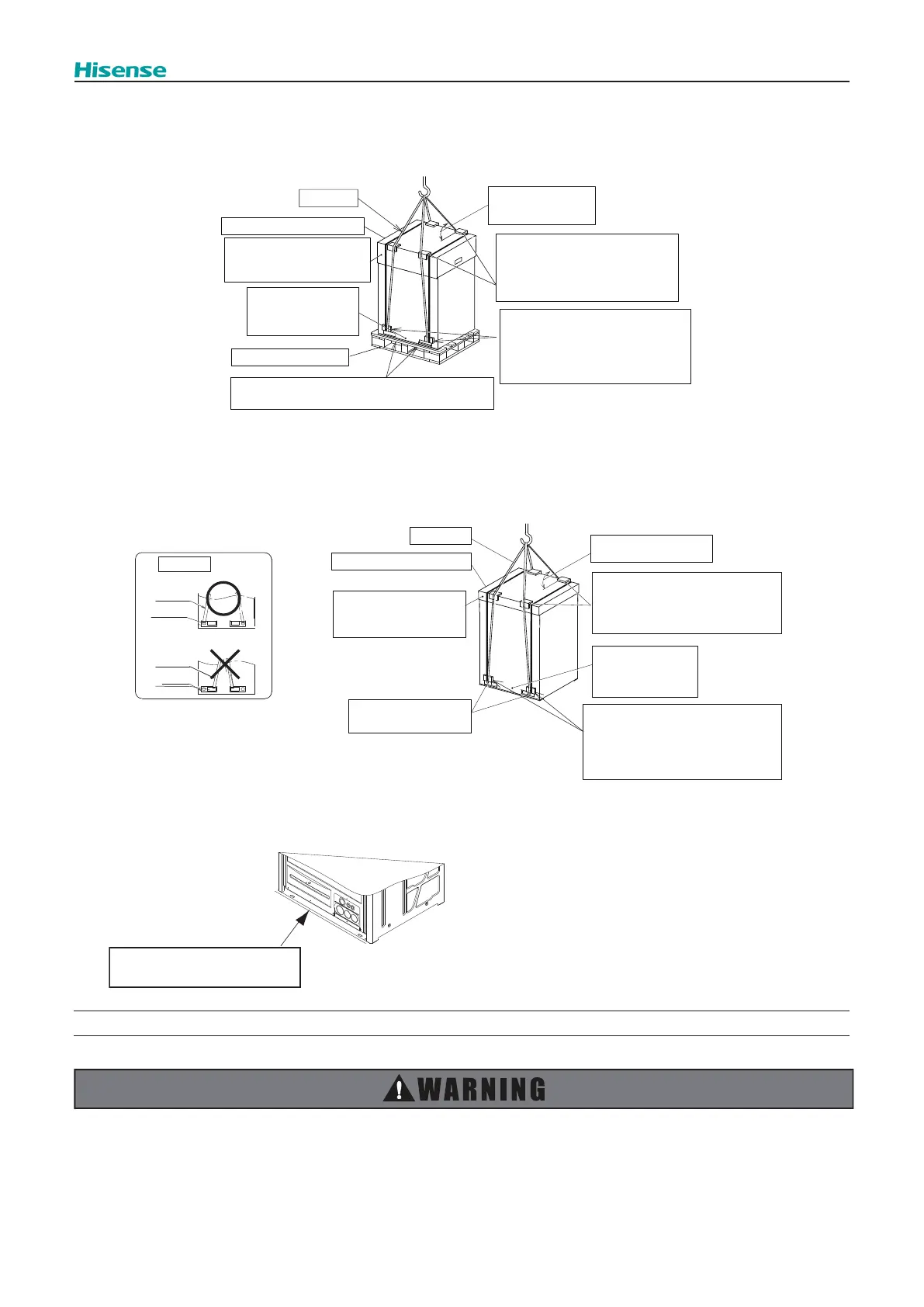

Fig. 2.1 Hanging Work for Transportation
(3) Hang the unit without wooden pallet, as shown in Fig.2.2.
CORRECT
Wire Rope
INCORRECT
Wire Rope
Square Hole
Apply wire ropes
through circular holes
Do not remove
corrugated paper frame
and plastic bands
Wire Rope
Rope Position
Corrugated Paper Frame
Apply rope on the splints or
corrugated paper with thickness
greater than 19/32in. (15mm)
Greater
than 60°
Do not apply any
forces here.
(both sides)
Bottom corners: Attach four
cardboard paddings with
thickness greater than
19/32 in. (15mm) thick on both
sides at this point for protection.
Circular Hole
Fig.2.2 Hanging Work without Wooden Pallet
Do not apply excessive force on the square holes with forks
or other objects. The bottom of the unit may be deformed.
● Do not push the bottom by fork.
● Do not use roller.
NOTE
In case of transportation after unpacking, protect the unit with the splints or cloth.
Check to ensure that no foreign matters left in the outdoor unit before installation and test run. Otherwise, it may
lead to a re, failure or injuries , etc.
Do not apply excessive
force (both sides)
To Next Page
