Servicing
TURN OFF all the power switches.
2.10 Removing Compressor
(1) Remove the front service cover according to the item 2.1 “Removing Front Service Cover”.
(2) Remove the electrical box cover according to the item 2.5 “Removing Electrical Box Cover”.
(3) Remove the electrical box according to the item 2.6 “Removing Electrical Box”.
(4) Remove the e-box stay according to the item 2.7 “Removing E-Box Stay”.
In the case that the outdoor unit is installed closely to the wall, remove the refrigerant piping and move the outdoor unit
away from the wall.
(5) Release the bind lace for the sound proof cover of the compressor and remove the sound proof cover.
(6) Remove the Td thermistor on the top of the compressor.

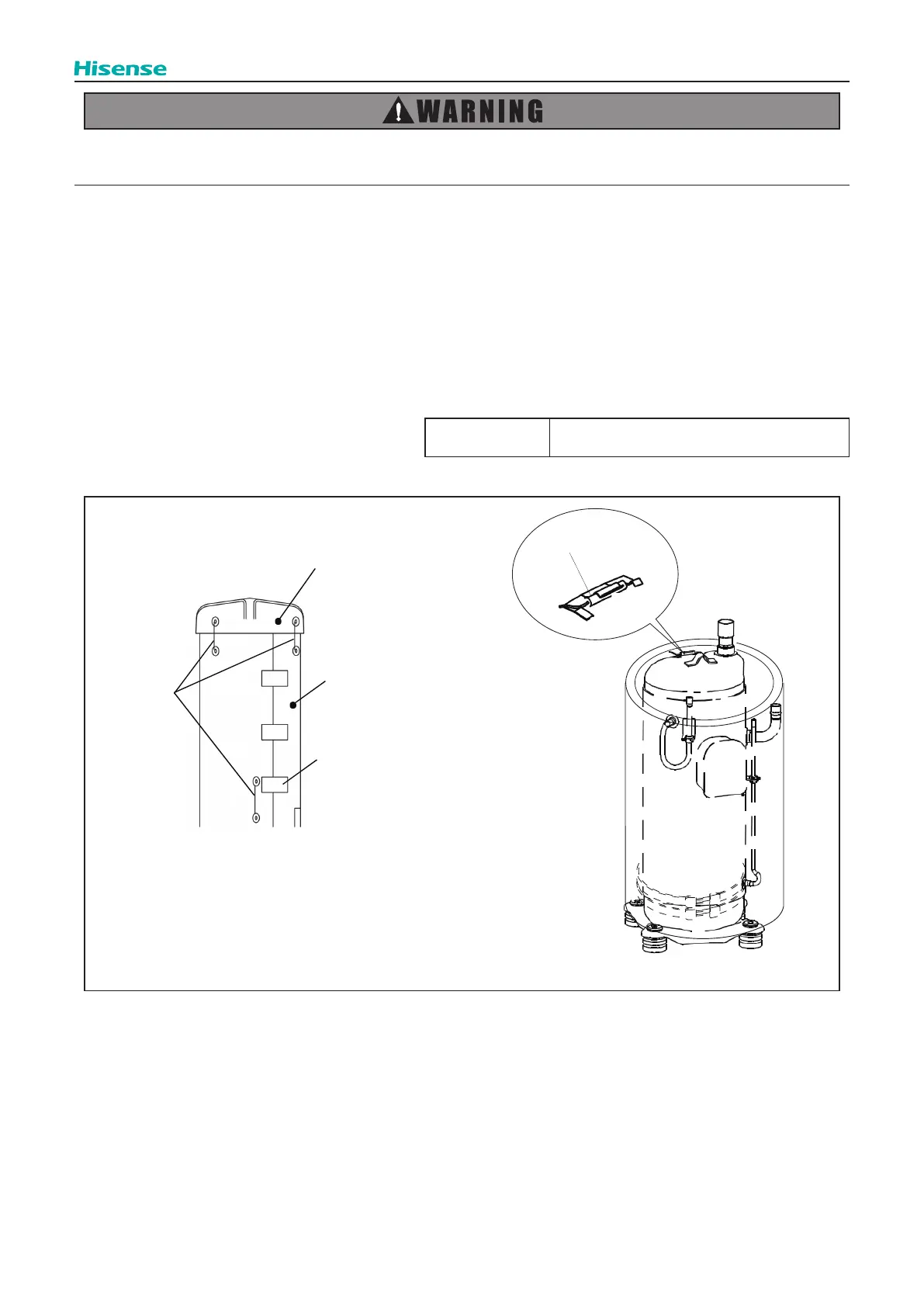

Tool Screw-driver & Diagonal Pliers
Sound Proof Cover
Bind Lace
RC Cover
Td Thermistor
Nylon strap
