Servicing
TURN OFF all the power switches.
2.17.3 Mount the electrical box in the reverse procedure.
NOTE:
1. Check to ensure that the tube end of waterproof vinyl pipe and the connectors are in the electrical box. Fix them
rmly with a cord clamp when wiring up as shown in the gure below.
2. Fix the wiring connecting each electrical part and the electrical box with a plastic band to avoid direct contact with
the compressor, piping and plate edges.
3. Fix the wiring neatly with a cord clump and make sure that the wiring will not be held down by the electrical box
cover. Otherwise, the wiring may be damaged while the cover is closed.
4. Fix the fan motor wiring with a cord clamp as shown in the gure.
NOTE:
1. When reassembling the electrical component, match the terminal Nos. with the mark band Nos.. If they are
incorrectly connected, malfunction may occur or the electrical components may be damaged.
2. The setting of dip switches diers according to the model. When replacing the outdoor unit PCB, refer to “Field
Work Instruction.”
Tool Phillips Screwdriver, Pincher
Cord Clamp
Electrical Box
More than
25/65in. (10mm)
More than 25/65in. (10mm) of
waterproof vinyl pipe should be in the
electrical box.
Tube End of Waterproof Vinyl Pipe

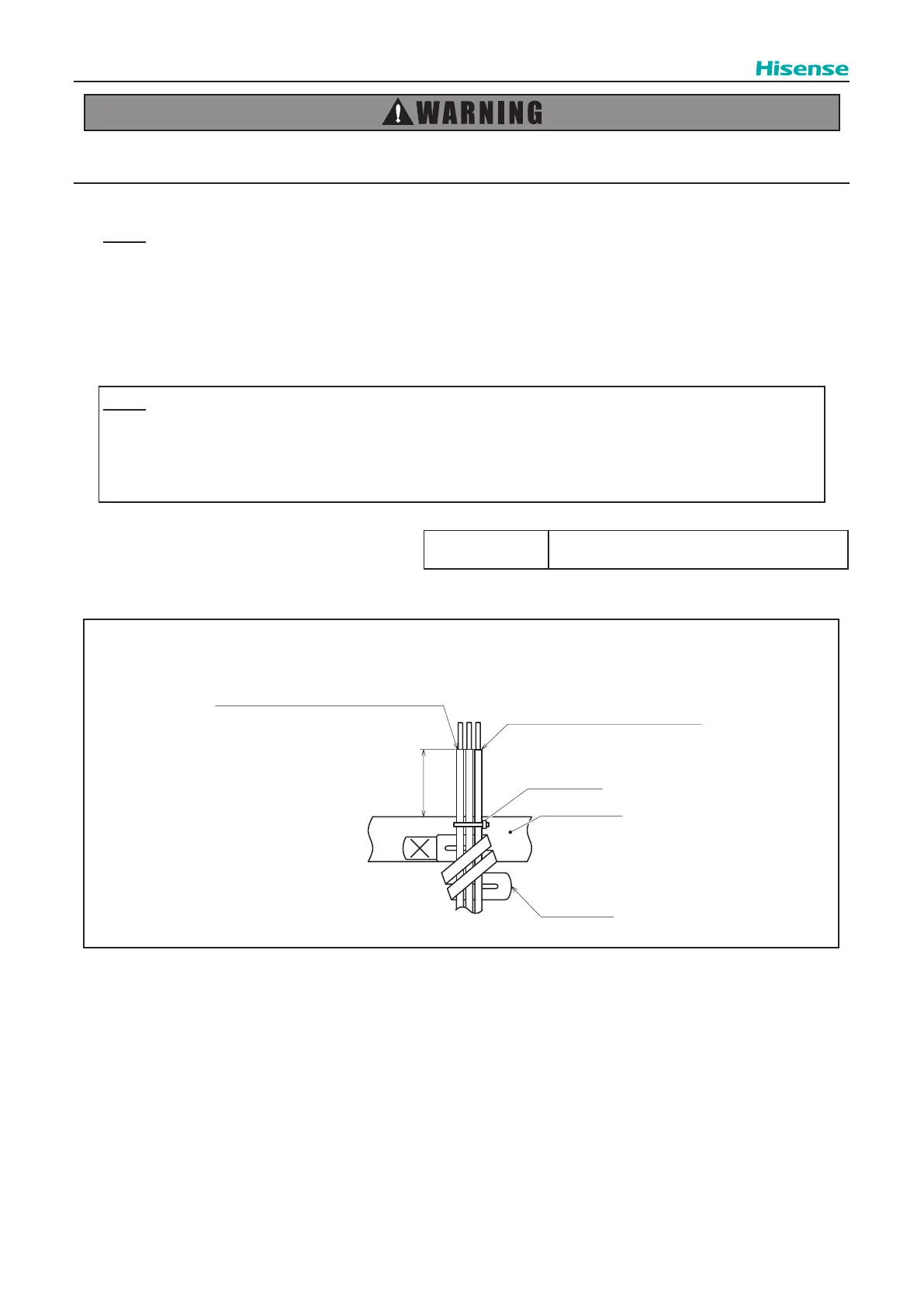

Details of Fixing the Vinyl Pipe Edge
Plastic Band
To Next Page
