76
Outdoor Unit Installation
3. Outdoor Unit Installation

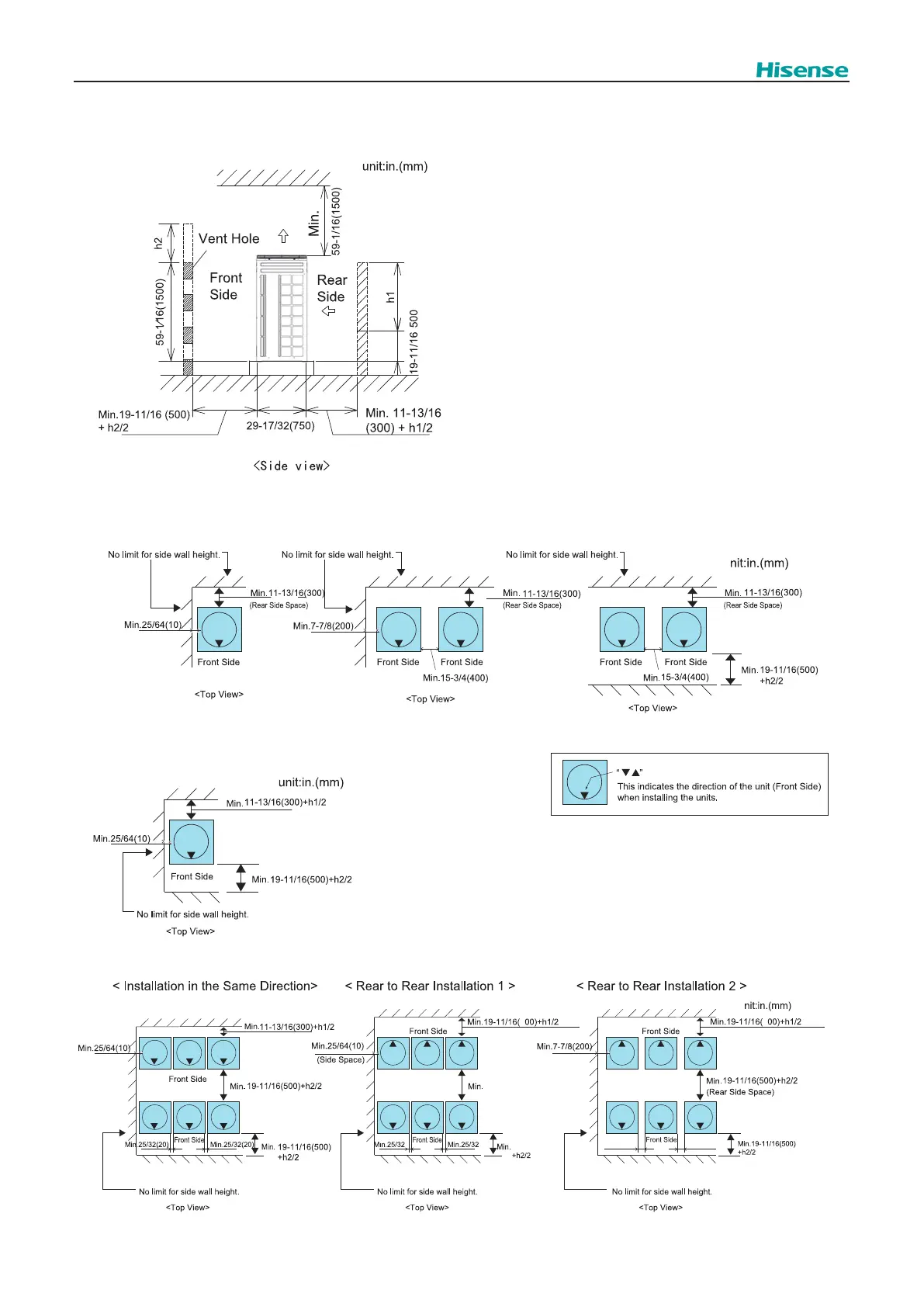

3.1 Service Space
Make the service space when outdoor unit is installed as follows.
(
)
In case of no walls at the front and the rear side of the unit,
the space of 19-11/16in.(500mm) for the front side and
11-13/16in.(300mm) for the rear side is required.
When the wall of front side is higher than 59-1/16in.
(1500mm) , the space of 11-13/16+h1/2in. for the front side
is required.
When the wall of rear side is higher than 19-11/16in., the
space of 11-13/16+h1/2in. for the rear side is required.
When installing the wall in front of the unit, make the vent
hole on the wall
When the space to the obstacle above the unit is less than
59-1/16in. or the space above the unit is closed, set up the
duct at the air outlet side in order to prevent short circuit.
When there are obstacles above the unit, the four (front,
rear, right and left) sides of the unit shall be open in
principle.
(1) Walls on 2 Directions
In case that the units are installed adjacent to tall buildings and there are no walls in 2directions, the minimum rear side
space is 11-13/16in.(300mm).
u
(2) Walls on 3 Directions
Single Installation
Multiple / Serial Installation
<Installation in the Same Direction> <Rear to Rear Installation 1 > <Rear to Rear Installation 2 >
u
Min. 15-3/4
5 +h2/2 +h2/25
31-1/2(800)
19-11/16(500)
Min. 15-3/4
