219
Servicing
TURN OFF all the power switches.

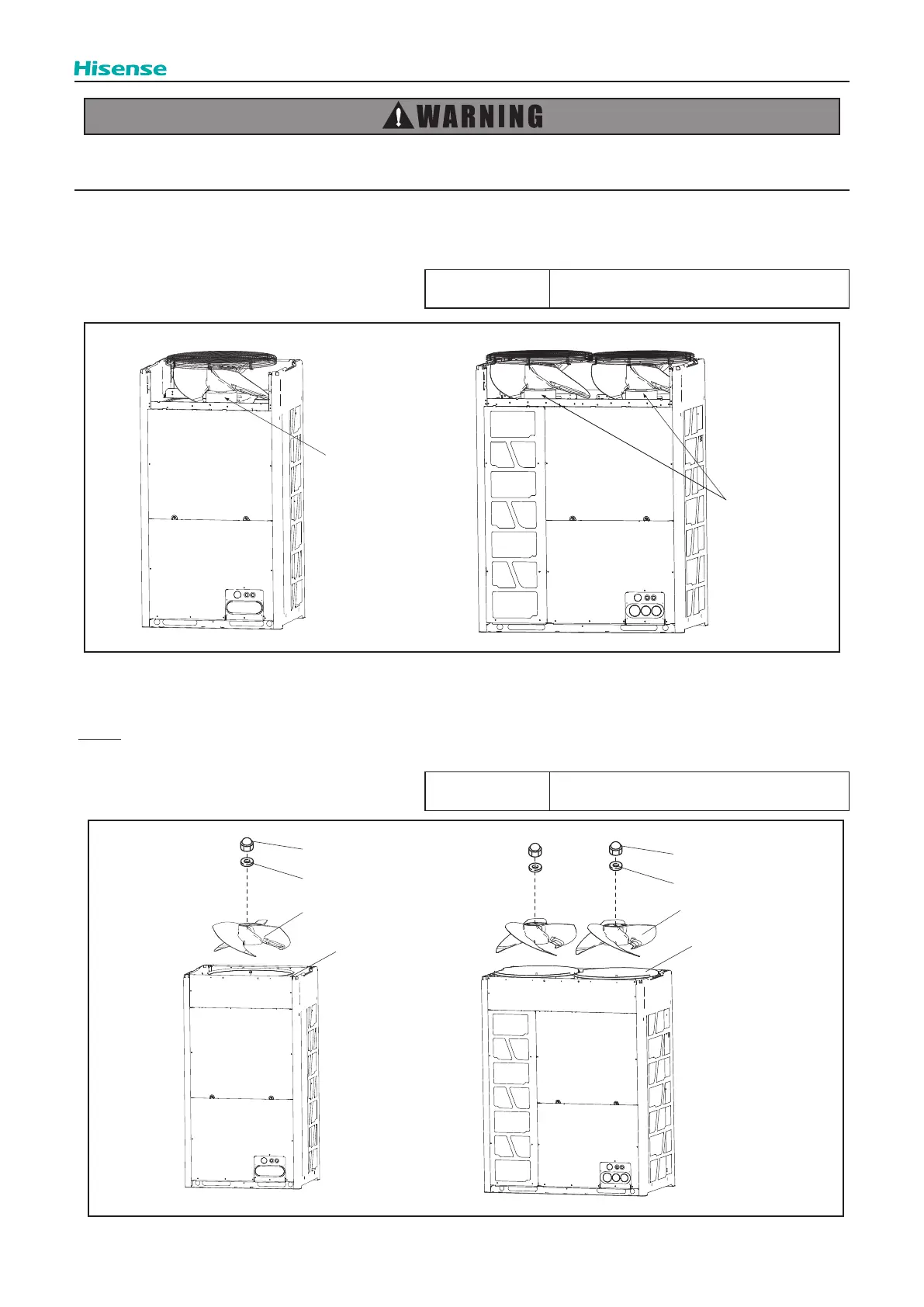

2.9 Removing Outdoor Fan
(1) Remove the air grille according to the item 2.8 “Removing Air Grille”.
Tool
Adjustable Wrench, Spanner, Puller,
Phillips Screwdriver, Nippers, Box Wrench
Tool
Adjustable Wrench, Spanner, Puller,
Phillips Screwdriver, Nippers, Box Wrench
Fan Motor
Fan Motor
(2) Remove the closing nut and the awasher xing in the propeller fan onto the motor shaft with an box wrench.
(3) Remove the propeller fan from the motor shaft (Lift the propeller fan up). When attaching the propeller fan to the motor
shaft, make the D-Cut at the boss portion connected to the D-Cut of the fan motor shaft.
NOTE:
DO NOT apply an excessive force to the shroud (plastic part) . Otherwise, deformation and breakage may occur.
Propeller Fan
Closing Nut
Flat Washer
Shroud
Closing Nut
Flat Washer
Propeller Fan
Shroud
