Servicing
TURN OFF all the power switches.
2.14 Removing High Pressure Switch, High Pressure Sensor, Low Pressure Sensor and
Thermistor
(1) Remove the front service cover according to Item 2.1 “Removing Front Service Cover”.
(2) High Pressure Switch (PSH1 and PSH2), High Pressure Sensor, Low Pressure Sensor and Thermistor (Tg, Tsc, Tchg,
Tbg ,Td and Te) are xed as shown in the gure below.
Tool Adjustable Wrench or Spanner

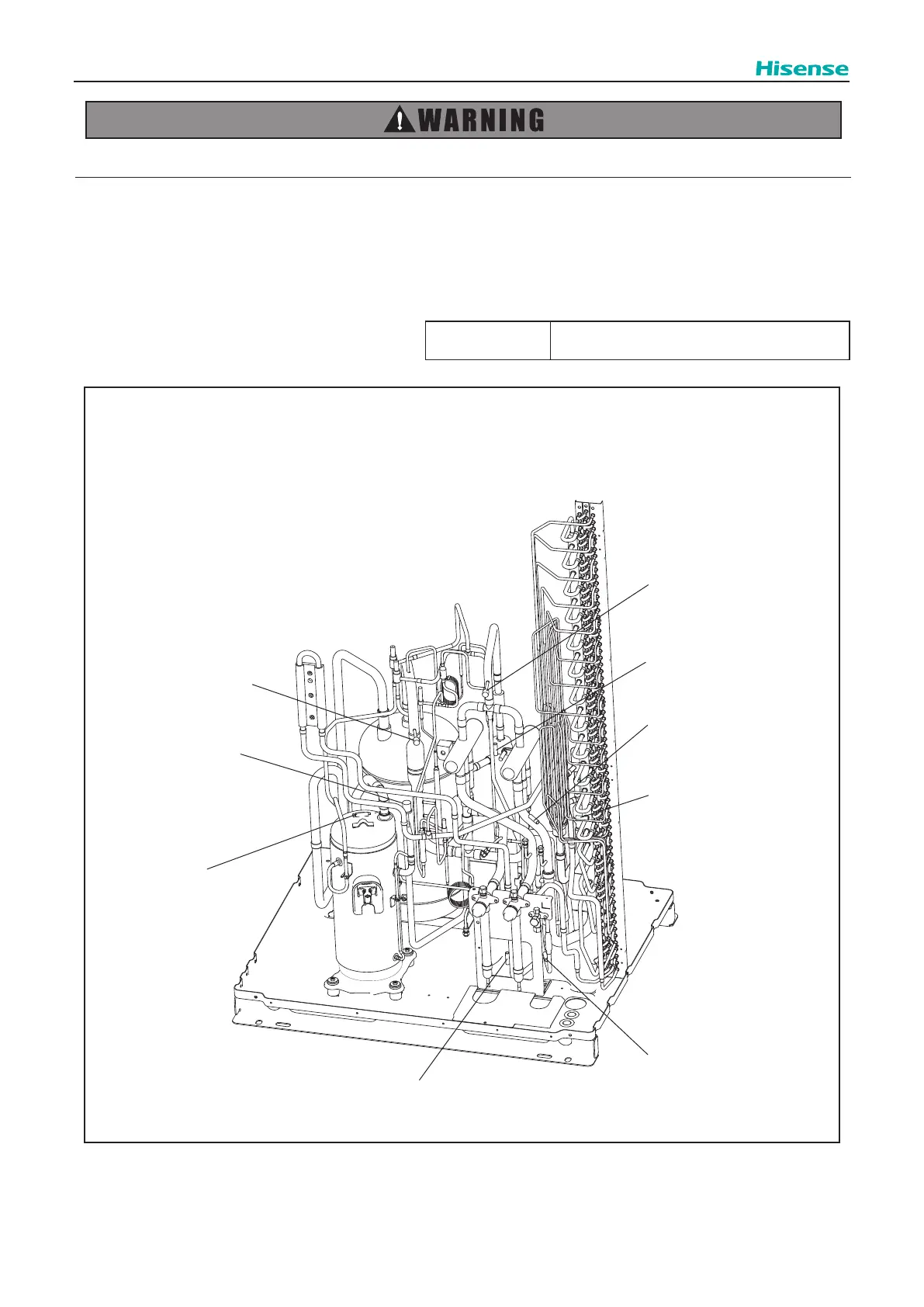

<High Pressure Switch, High/Low Pressure Sensor Position>
● AVWT-72~96FFFH
Tchg Thermistor
( Sub Cooling
Main Line)
PSH1(High
Pressure Switch)
Te Thermistor
(Evaporation
Liquid Line)
Td Thermistor
(Compressor)
High Pressure Sensor
Tbg Thermistor
( Sub Cooling
Bypass
Line)
Tg Thermistor
( Evaporation
Gas Line)
Low Pressure Sensor
Tsc Thermistor
( Inlet Pipe of The
Sub Cooler)
To Next Page
