General Data
29
24
24

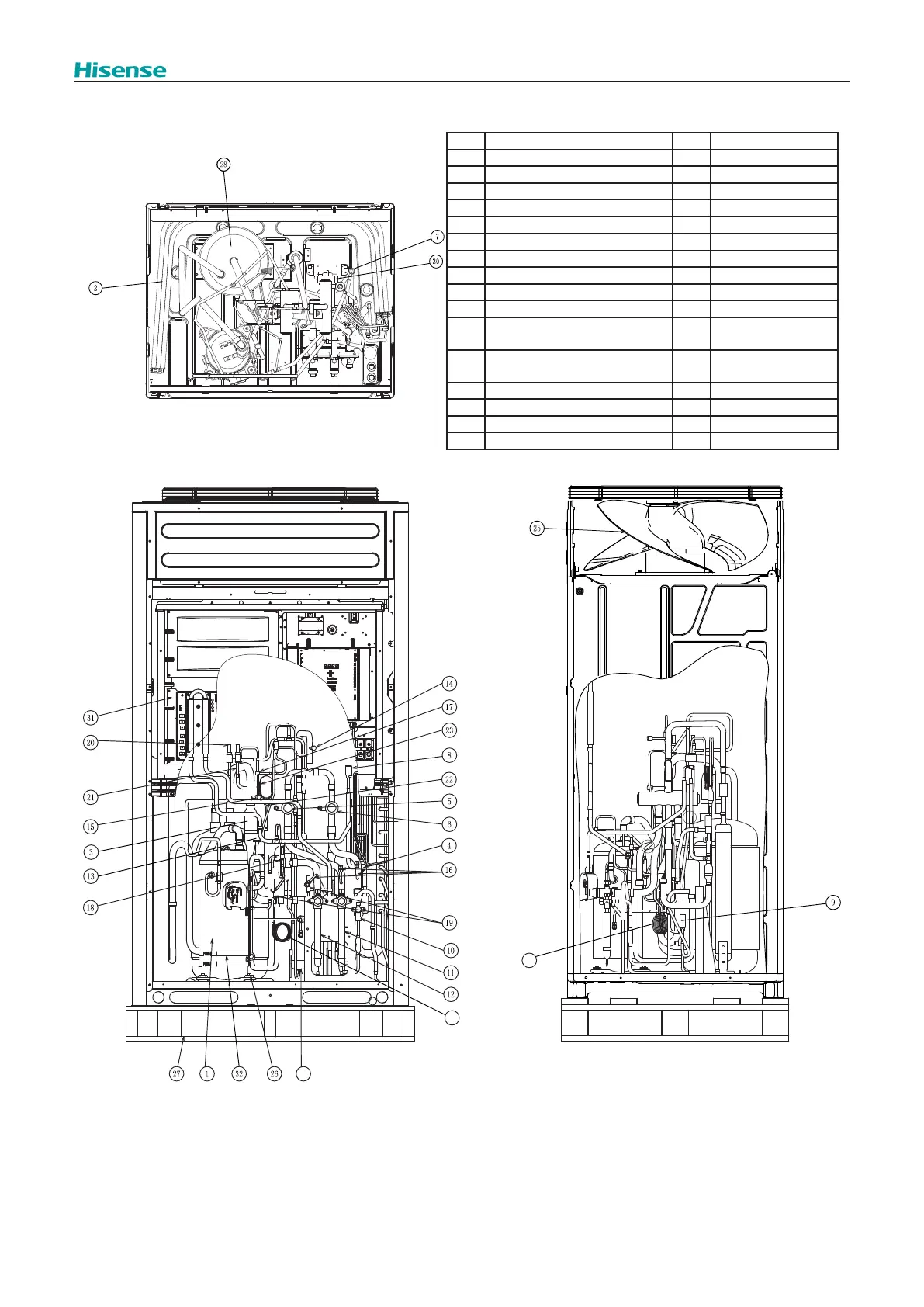

2.6 Structure
AVWT-72*, AVWT-96*
SN Part Name SN Part Name
1 Compressor 17 Solenoid valve (SVA)
2 Heat exchanger 18 Solenoid valve (SVC)
3 Strainer 19 Solenoid valve (SVG)
4 Splitter 20 Solenoid valve (SVJ)
5 4-way reversing valve (21-1) 21 Solenoid valve (SVS)
6 4-way reversing valve (21-2) 22 Capillary tube (SVA)
7 Electronic expansion valve (EVO) 23 Capillary tube (SVF)
8 Electronic expansion valve (MV5) 24 Capillary tube (SVG)
9 Electronic expansion valve (EVB) 25 Propeller fan
10 Stop valve (liquid) 26 Damping rubber pad
11
Stop valve
(high/low pressure gas)
27 Wooden pallet
12
Stop valve
(low pressure gas)
28 Accumulator
13 High pressure switch 29 Oil separator
14 High pressure sensor 30 Subcooler
15 Low pressure sensor 31 Electrical box
16 Check joint 32 Crankcase heater
