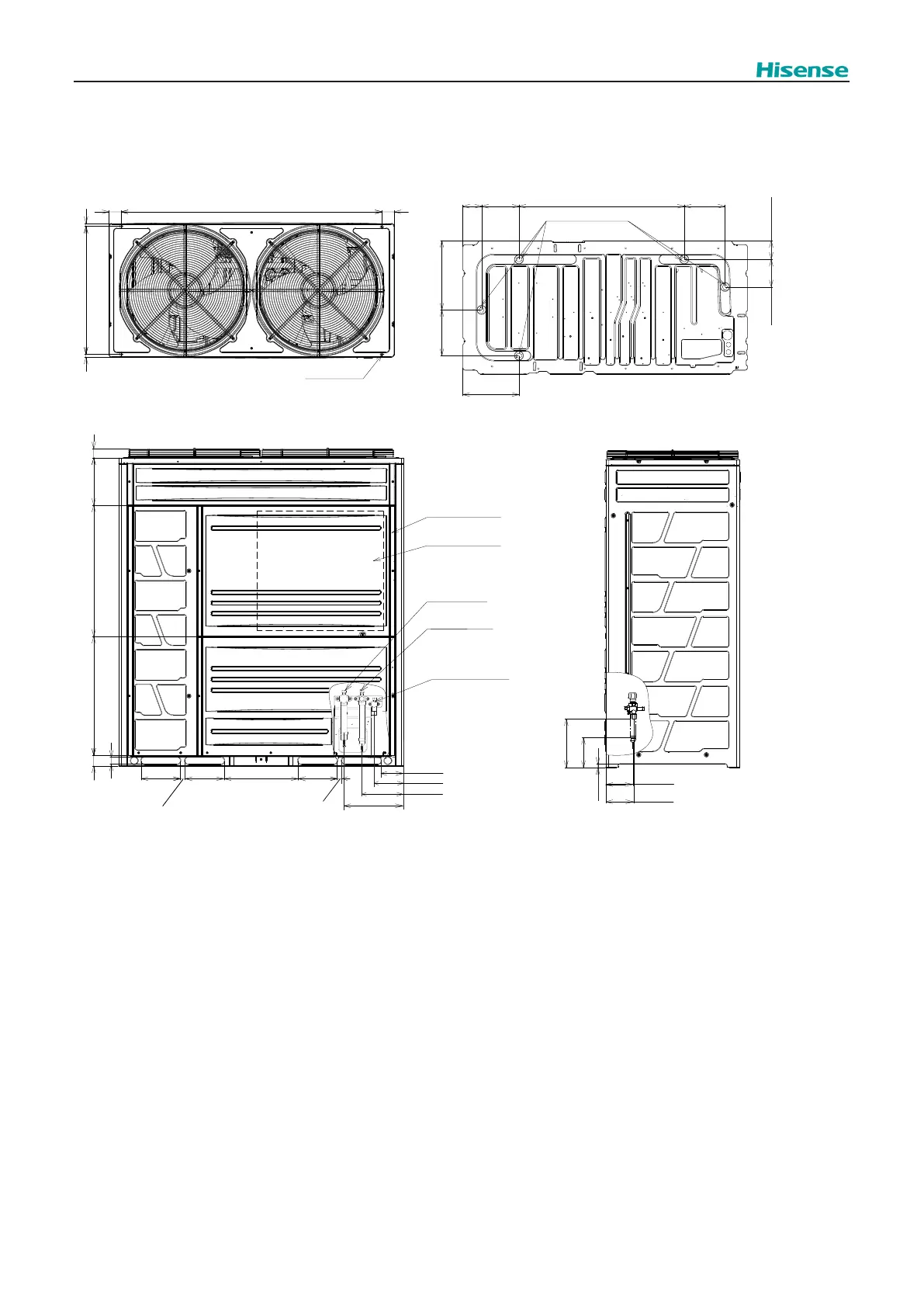

General Data
Model：AVWT-192*
unit: in.(mm)
Anchor bolt fixing hole
43/64(17)
28-17/64(718)
(Foundation bolt hole spacing)
2-43/64(68)
4×25/32(20)×19/32(15)
2-43/64(68)57-41/64(1464)
43/64(17)
Drain port (Φ1-1/32(26) × 5 )
Drain pipe connector
(optional)
8-31/32(228)
36-17/32(928)
4-11/64(106)
8-15/64(209)
12-13/32(315)
15-5/16(389)
10-1/8(257)
6-1/16(154)
10-3/4(273)
6-39/64(168)
25/32(20)
1-1/32(26)
16-19/64(414)
2-23/64(60)
1-17/32(39)
28-31/32(736)
10-15/32(266)
2-1/64(51)
Maintenance panel
Electrical box
Connection of refrigerant gas pipe
Connection by welding
Connection of refrigerant gas pipe
Connection by welding
Connection of refrigerant liquid pipe
Connection with flare opening
9-29/64(240)
1-1/32(26)
8-21/32
(220)
26-17/64
(667)
8-21/32
(220)
7-13/ 64(183)
12-43/64(322)
5(127)
8-21/ 302
(220)
5-63/64(152)
6-3/16(157)
4-11/64(106)
