Hisense AVWT-192FFFH User Manual

27

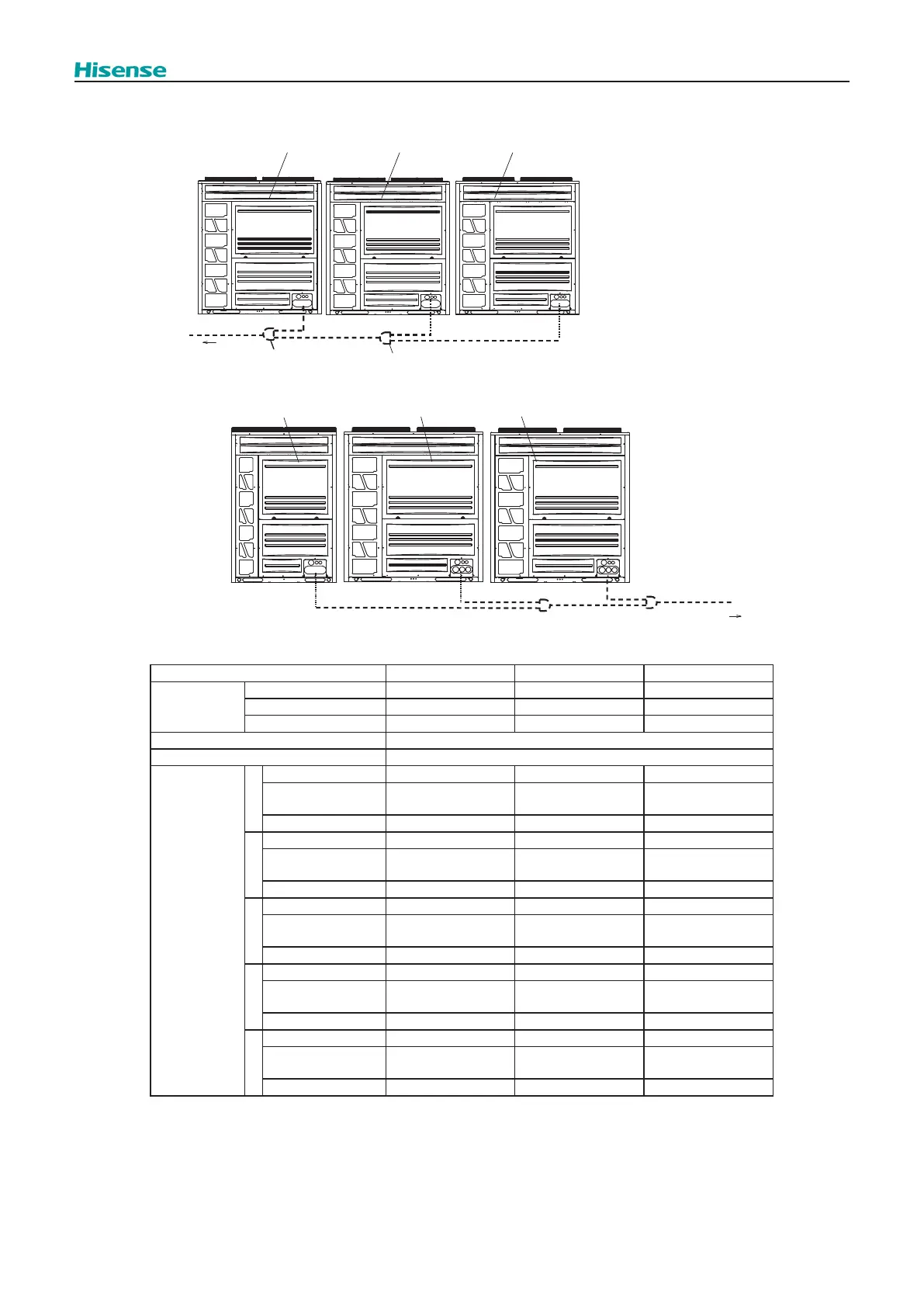

Piping System
Indoor unit on the right
side
Outdoor Unit C
e
a
b
Outdoor Unit B
Outdoor Unit A
To Indoor Units
Indoor unit on the left
side
Outdoor Unit A
Outdoor Unit B
Outdoor Unit C
d
e
c
Manifold Pipe 2
a
d
c
b
Manifold Pipe 2
Manifold Pipe 1
To Indoor Units
Manifold Pipe 1
Model (kBtu/h) 408 (34RT) 432 (36RT) 456 (38RT)
Combination of
Basic Unit
Outdoor Unit A 144 (12RT) 144 (12RT) 168 (14RT)
Outdoor Unit B 144 (12RT) 144 (12RT) 144 (12RT)
Outdoor Unit C 120 (10RT) 144 (12RT) 144 (12RT)
Manifold Pipe1 HFQ-M302F
Manifold Pipe2 HFQ-M212F
Piping Size
Φ in.(mm)
a
Low Pressure Gas 1-1/2(38.1) 1-1/2(38.1) 1-1/2(38.1)
High/Low
Pressure Gas
1-1/4(31.75) 1-1/4(31.75) 1-1/4(31.75)
Liquid 3/4(19.05) 3/4(19.05) 3/4(19.05)
b
Low Pressure Gas 1-1/8(28.6) 1-1/8(28.6) 1-1/8(28.6)
High/Low
Pressure Gas
7/8(22.2) 7/8(22.2) 7/8(22.2)
Liquid 1/2(12.7) 1/2(12.7) 1/2(12.7)
c
Low Pressure Gas 1-1/4(31.75) 1-1/4(31.75) 1-1/4(31.75)
High/Low
Pressure Gas
1-1/8(28.6) 1-1/8(28.6) 1-1/8(28.6)
Liquid 3/4(19.05) 3/4(19.05) 3/4(19.05)
d
Low Pressure Gas 1-1/8(28.6) 1-1/8(28.6) 1-1/8(28.6)
High/Low
Pressure Gas
7/8(22.2) 7/8(22.2) 7/8(22.2)
Liquid 1/2(12.7) 1/2(12.7) 1/2(12.7)
e
Low Pressure Gas 1-1/8(28.6) 1-1/8(28.6) 1-1/8(28.6)
High/Low
Pressure Gas
7/8(22.2) 7/8(22.2) 7/8(22.2)
Liquid 1/2(12.7) 1/2(12.7) 1/2(12.7)
