81
Outdoor Unit Installation
(2) Do not install the unit over the walkways. Condensate water may fall on people. In case of installing the unit in such a
place, provide the additional drain pan.
(3) When drain piping is necessary for the outdoor unit, use the drain boss set (Optional, DC-01Q)
Do not use drain boss and drain pan kit in the cold area. The drain water in the drain pipe may be frozen and then crack
the drain pipe.
(4) When installing the unit on a roof or a veranda, drain water sometimes turns to ice on a cold morning. Therefore, avoid
draining into an area where people often use because it is slippery.

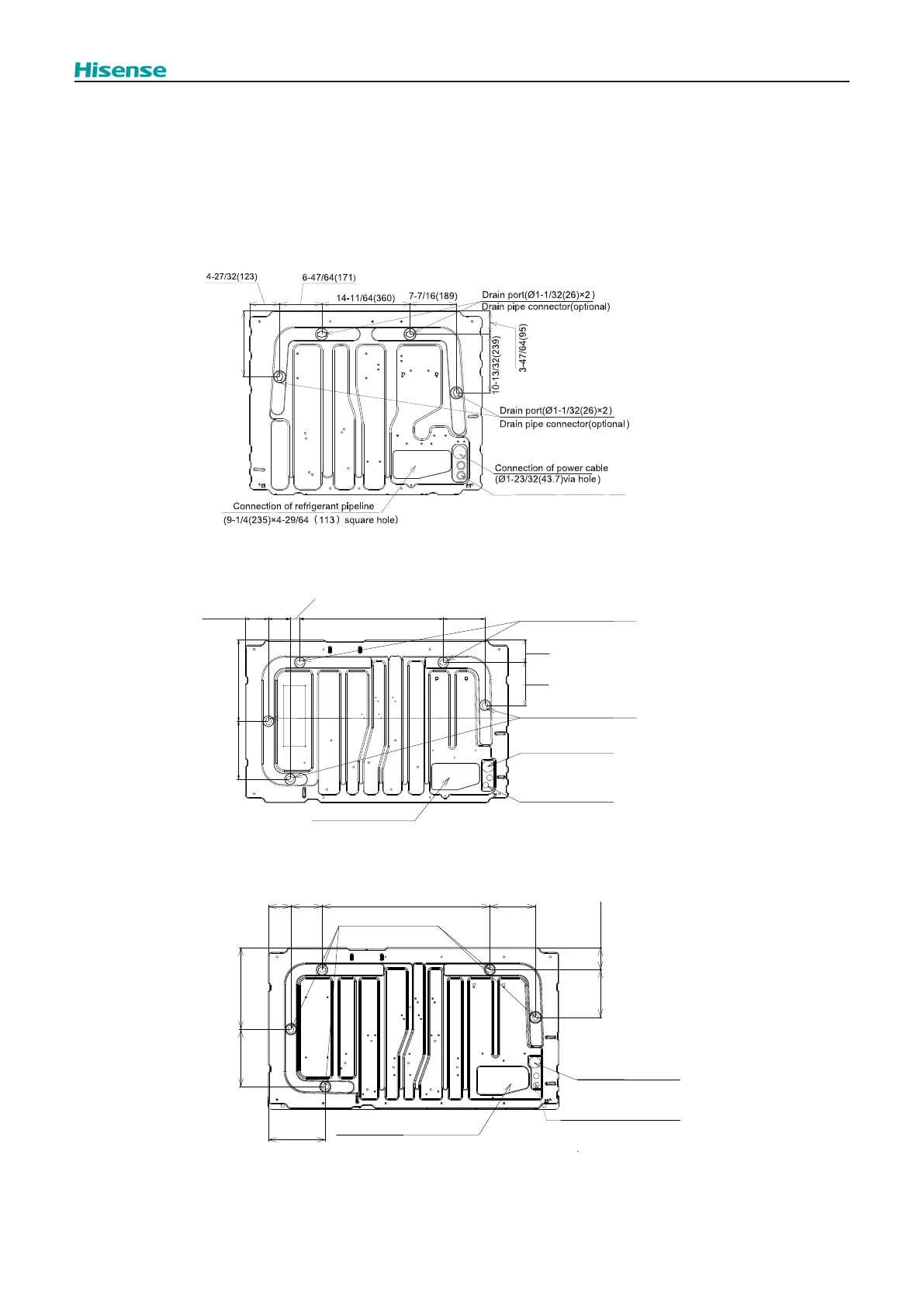

unit: in.(mm)
Model: 72~96
Model: 120
unit: in.(mm)
unit: in.(mm)
(8-21/32(220)×4-23/32(120) square hole)
Model: 144~168
Connection of communication cable
(Ø55/64(22)×2 via hole)
10-35/64(268)
4-9/64(105)
25-63/64(660)
7-9/16(192)
Drain port (Φ1-1/32(26)x 2)
Drain pipe connector (optional)
Drain port (Φ1-1/32(26)×2)
Drain pipe connector (optional)
Connection of power cable
(Φ1-23/32(43.7) via hole)
Connection of communication cable
(Ø55/64(22)×2 via hole)
Connection of Refrigerant pipeline
14-45/64(373)
10-33/64(267)
4-1/16(103)
1-49/64(45)
3-15/16
(100)
7-3/4(197)
Drain port (Φ1-1/32(26)×5)
Drain pipe connector
(optional)
Connection of power cable
Connection of Refrigerant pipeline
(9-21/64(237)×5-3/64(128) square
hole)
8-11/32(212)
30-45/64(780)
4-9/64(105)
5-45/64(145)
10-7/16(265)
14-61/64(380)
8-47/64(222)
10-33/64(267)
4-1/16(103)
(Φ1-23/32(43.7) via hole)
Connection of communication cable
(Ø55/64(22)×2 via hole)
To Next Page
