This is SM type quartz fiber optic cable with a core diameter of 8.0µmandaclad
diameter of 125
µm. The maximum allowable transmission distance between the
devices is 80km when a fiber optic cable with a transmission loss of 0.3 dB/km
(wavelength of 1550nm) or less is used.
TheboundaryfortheNWOC48istheconnectoronthesideofthisdevice.
Asinglemodefiberopticcablecanbeusedforconnectingwiththedevice.A
summary diagram is shown in Figure 3-99 below.
Table 3-105 shows the optical interface specification for NWOC48.
O21: [Direct connection between devices]
Recommended model name:

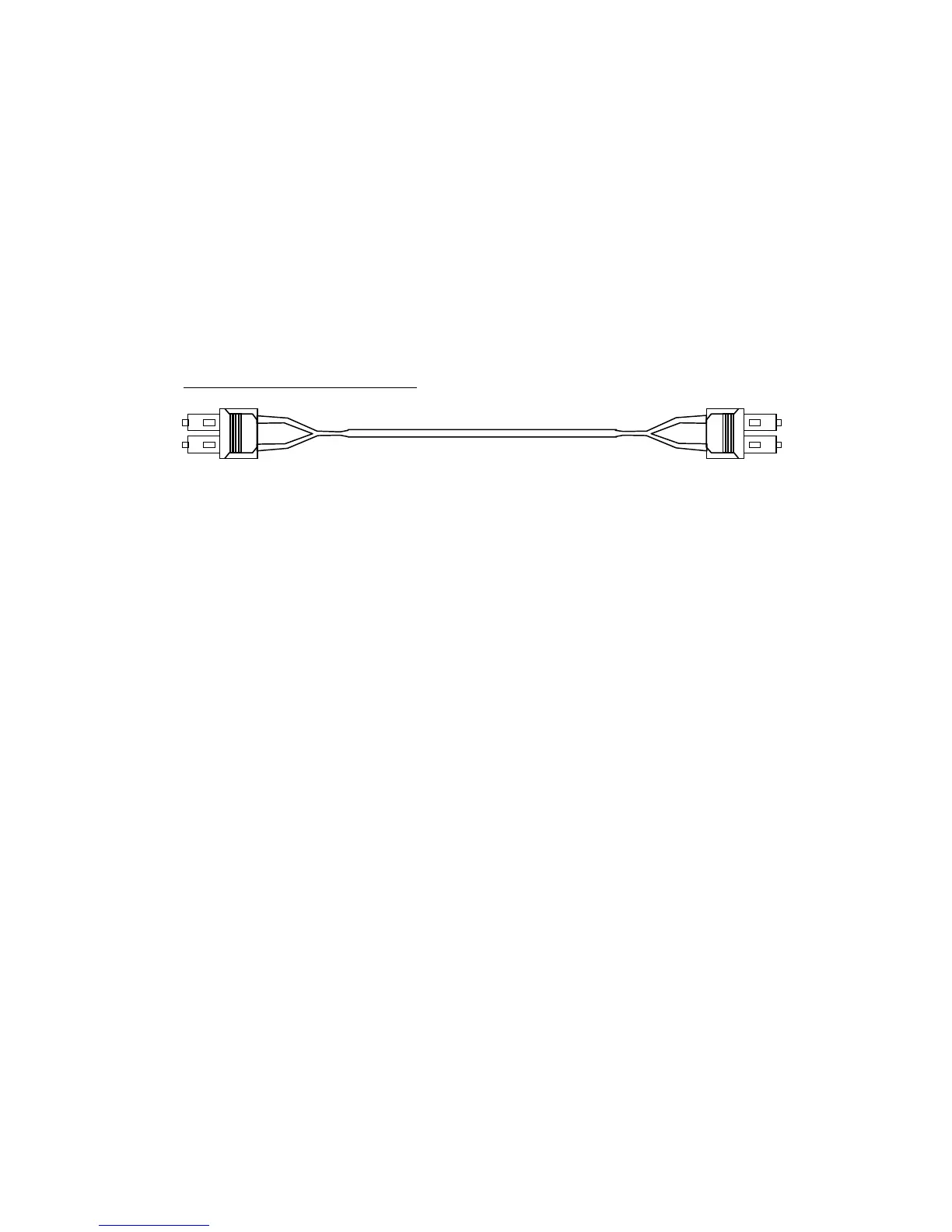

Hitachi Optical Fiber Cable C-2DSF0803(2)(D)#S/P/0. 2# [ ] M : 2-core SC connector –
2-core SC connector. (core length in brackets)
