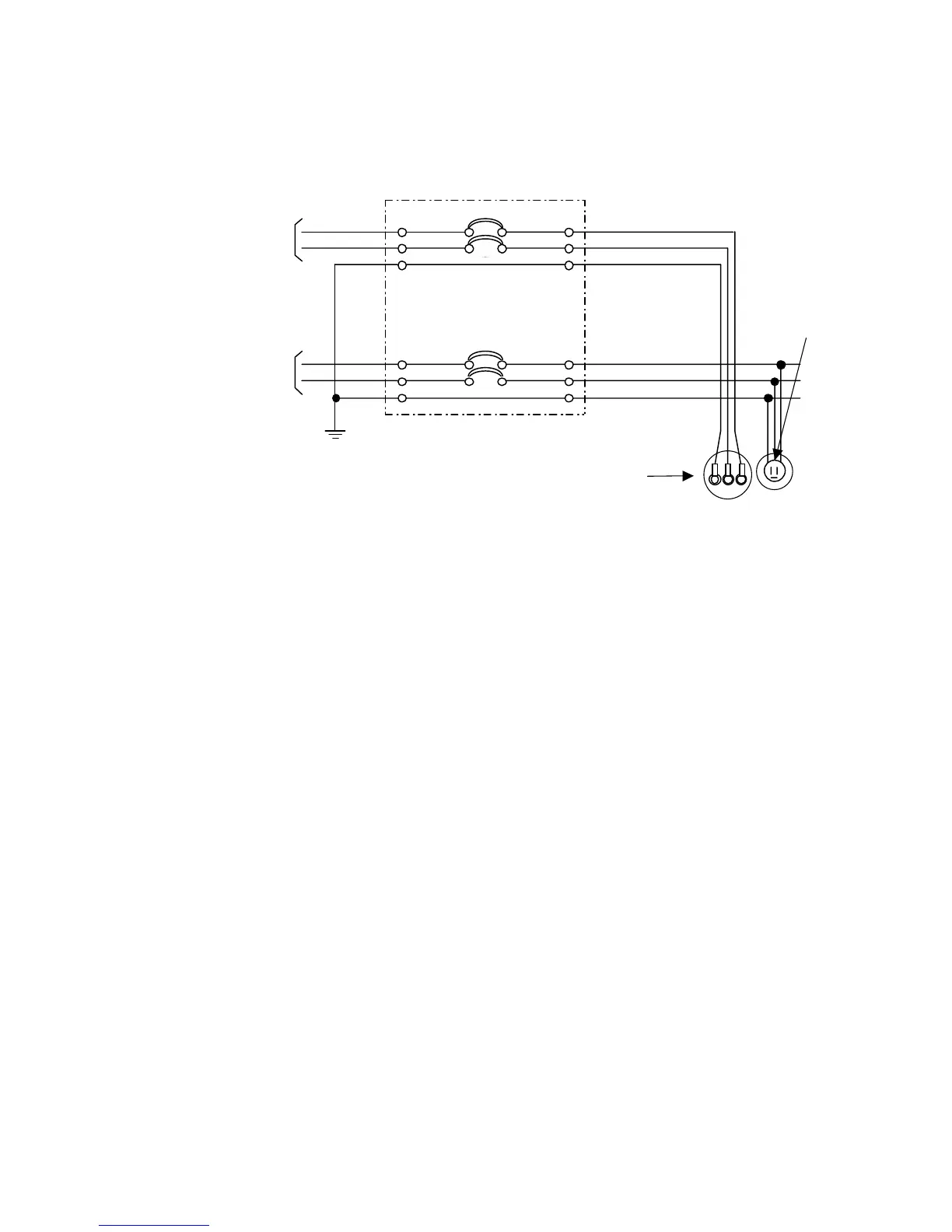

shown in Figure 5-7. Figure 5-8 shows its redundant power feeding counterpart.
–
48V or
–
60V dc
100 Vac,
single
phase,
50/60 Hz
Power distribution panel
CB: Circuit breaker
Terminal plug (6H/10/10H/20:M5, 20H:M6) for device input power:
1 for non-redundant input
NEMA 5-15R
(convenience
outlet)
Ground
CB
