(2) Installing a main memory
NOTICE
The orientation of a main memory module on a connector is fixed. When you
install a main memory module, make sure the orientation is correct. Otherwise,
failure of the equipment may result.
Do not install main memory modules with different capacities on slot A1 and
slot B1. If you do, the modules may not be recognized.
[1] Follow the instructions in “6.3.3 Installing and removing the cover of the equipment” to
remove the cover of the equipment.
[2] Insert the main memory module into the connector from right above the connector. When
the module is fully inserted, you will hear a click.

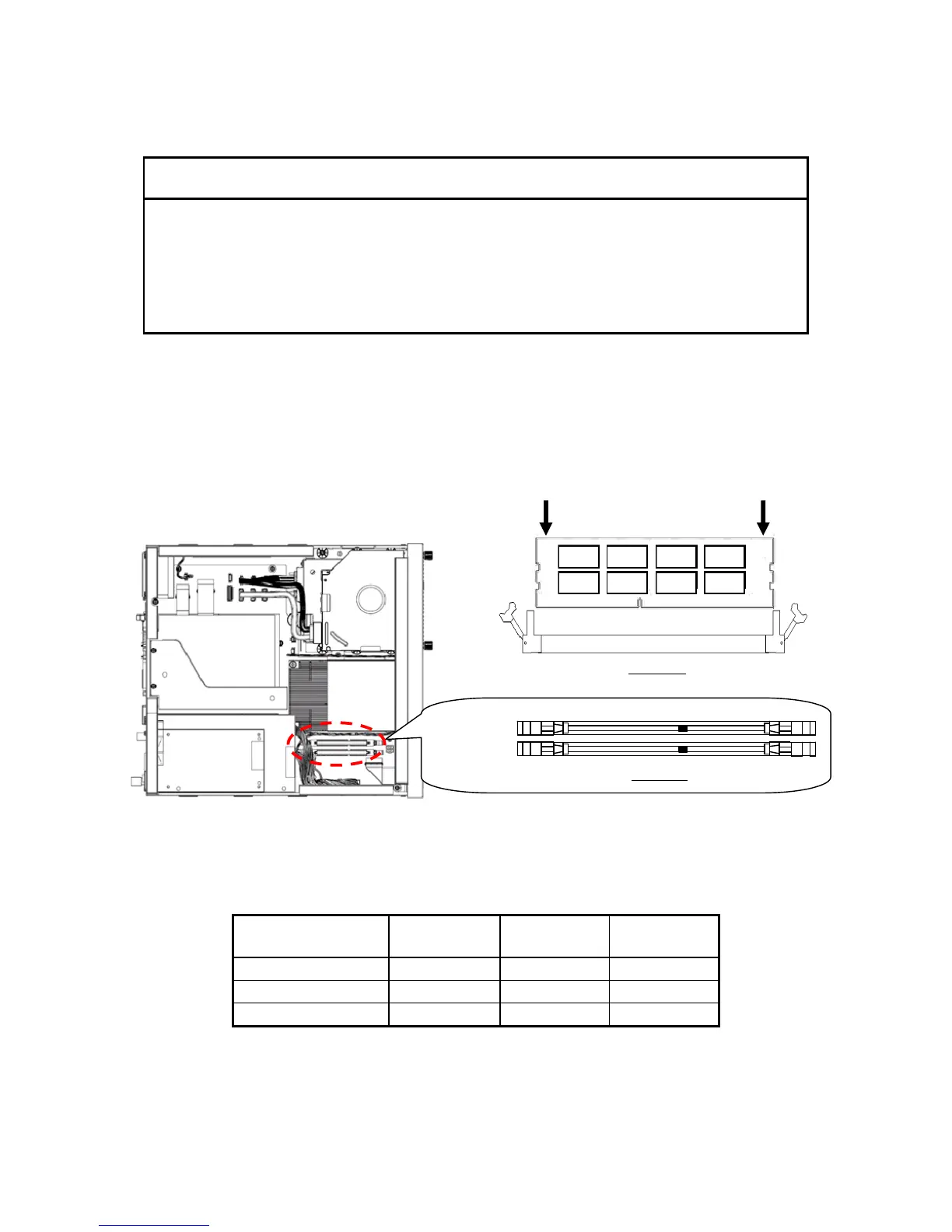

Figure 6-7 Installing a main memory
On this equipment, only the following combinations are allowed.
The number of
main memory
Slot A1
Slot B1
Total
capacity
1 4GB － 4GB
2 4GB 4GB 8GB
2 8GB 8GB 16GB
Side view
Top view
Slot A1
Slot B1
To Next Page
