Hitachi HF-W2000 User Manual

5. SPECIFICATION
5-17
5.8 Interface Specifications
5.8.1 Connector specifications
The following shows the specifications of the interfaces from this equipment to external
devices.
For information about the location of the ports, see “1.5 Name and Function of Each Part”.

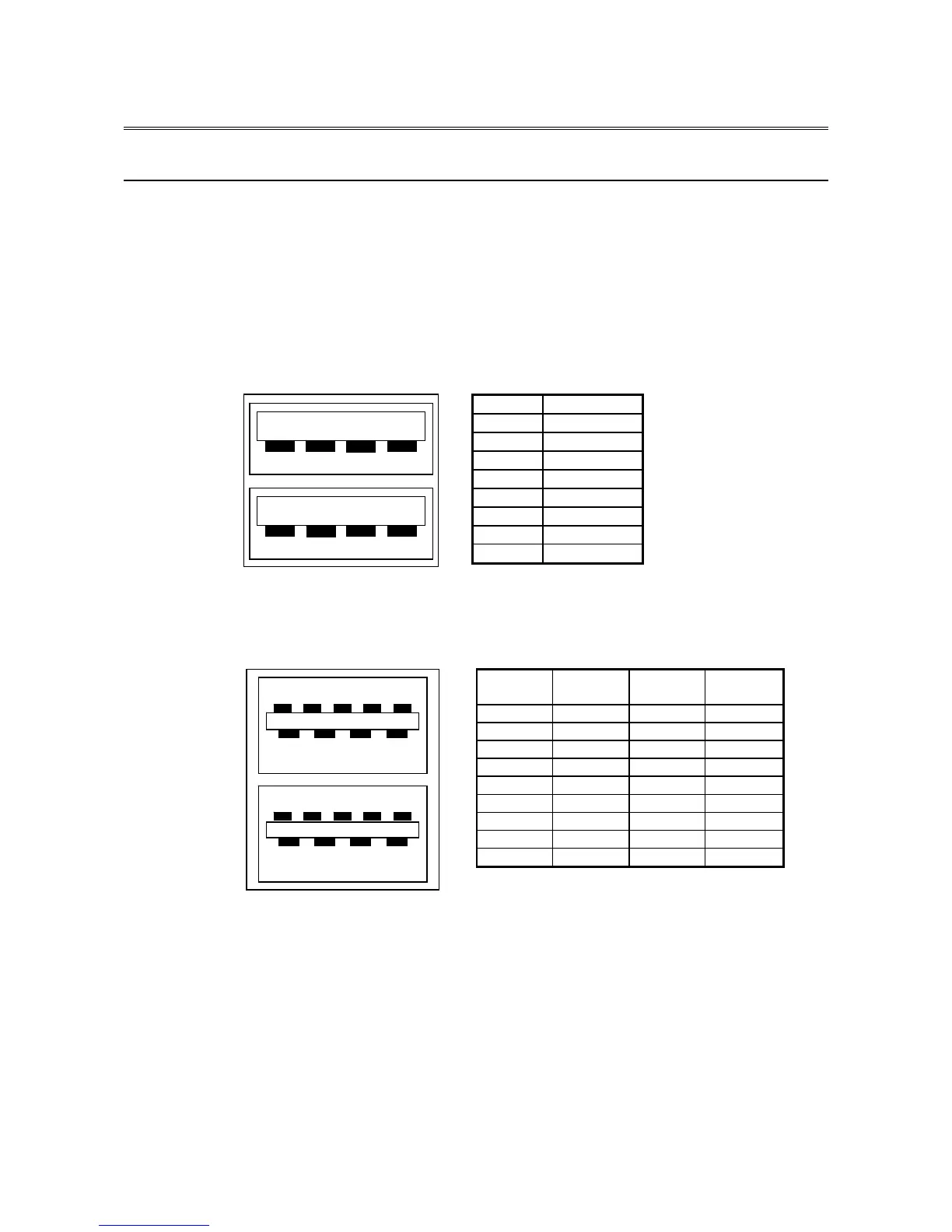

(1) Motherboard (Standard)
● USB2.0/1.1 port (front)
Pin No. Signal name
U1 +5V
U2 USBD1-
U3 USBD1+
U4 GND
L1 +5V
L2 USBD0-
L3 USBD0+
L4 GND
● USB3.0/2.0/1.1 port (front and rear)
Pin No. Signal
name
Pin No. Signal
name
L1(1) +5V U1(10) +5V
L2(2) USBD0- U2(11) USBD1-
L3(3) USBD0+ U3(12) USBD1+
L4(4) GND U4(13) GND
L5(5) SSRX1- U5(14) SSRX2-
L6(6) SSRX1+ U6(15) SSRX2+
L7(7) GND U7(16) GND
L8(8) SSTX1- U8(17) SSTX2-
L9(9) SSTX1+ U9(18) SSTX2+
U1
U2
U3
U4
L1
L2
L3
L4
U1 4
L1
4
59
59
