OPERATING THE MACHINE
5-32
SHACKLE HOLE USAGE
A shackle hole is provided on the track frame to tow light
weight objects as specified below.
IMPORTANT: Be sure to conform to the restrictions
and precautions stated below when
towing a light weight object using the
shackle hole provided on the track frame.
The track frame and/or the shackle hole
may be damaged otherwise.
•
The maximum drawbar pull is 19610 N (2.0 Metric
Tons).
•
Be sure to use a shackle.
•
Keep the tow line horizontal, straight, and parallel to
the tracks.
•
Select the slow travel mode. Slowly drive the machine
when towing.
OVERNIGHT STORAGE INSTRUCTIONS
1. After finishing the day’s operation, drive the machine
to a firm, level ground where no possibility of falling
stones, ground collapse, or floods.
Park the machine referring to the
“PARKING THE MACHINE” in the “DRIVING THE
MACHINE” section.
2. Fill the fuel tank with fuel.
3. Clean the machine.
4. If anti-freeze or long life coolant is not used in cold
weather, be sure to drain coolant from the radiator
and the engine jacket. Also, be sure to put a tag in a
visible place if the coolant has been drained.
M104-05-011
M1CC-05-013

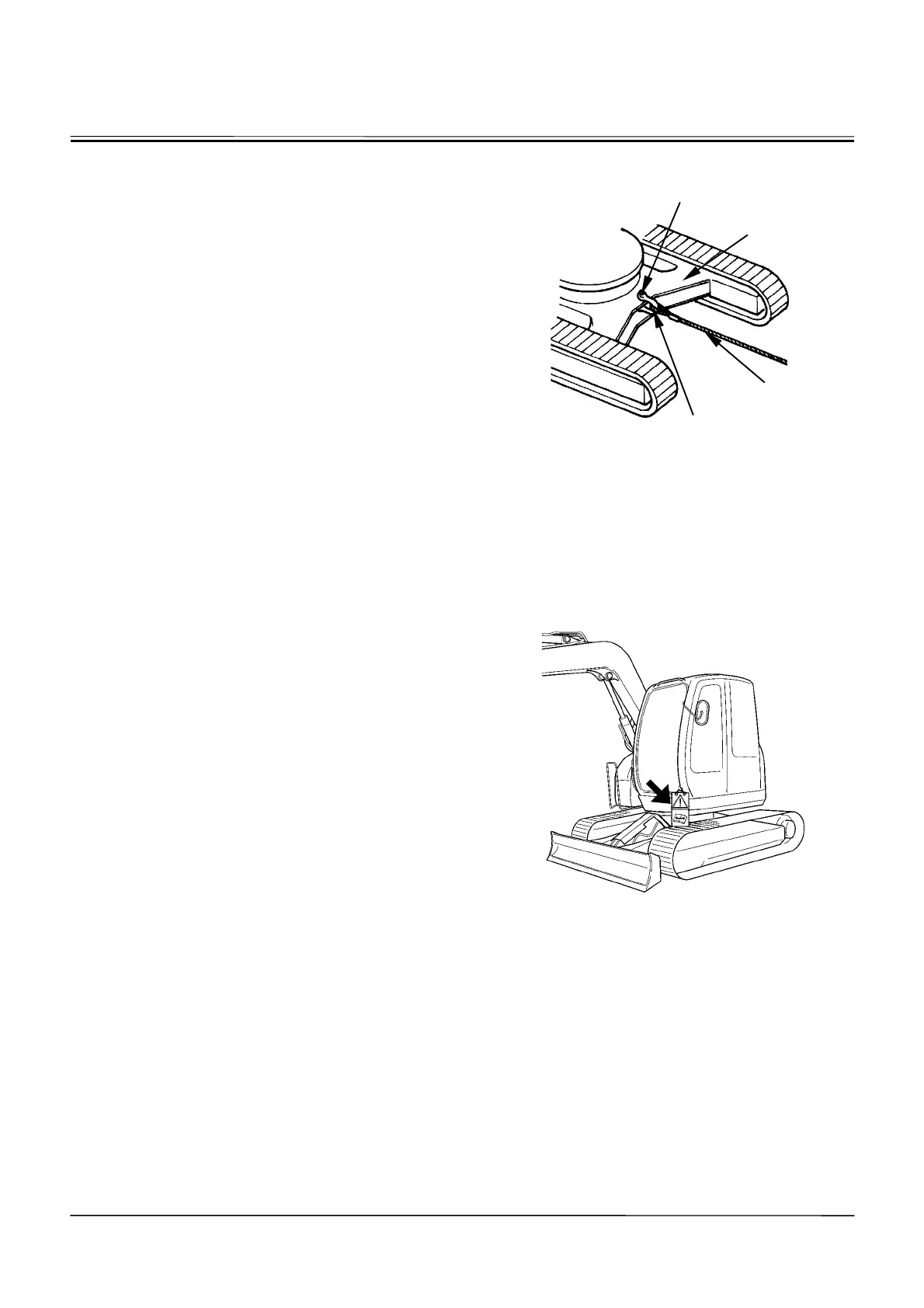

Shackle hole for towing light
weight objects.
Shackle
Wire Rope
Track Frame
