Hitachi ZAXIS 70 - OPERATORS STATION

OPERATOR'S STATION
1-2

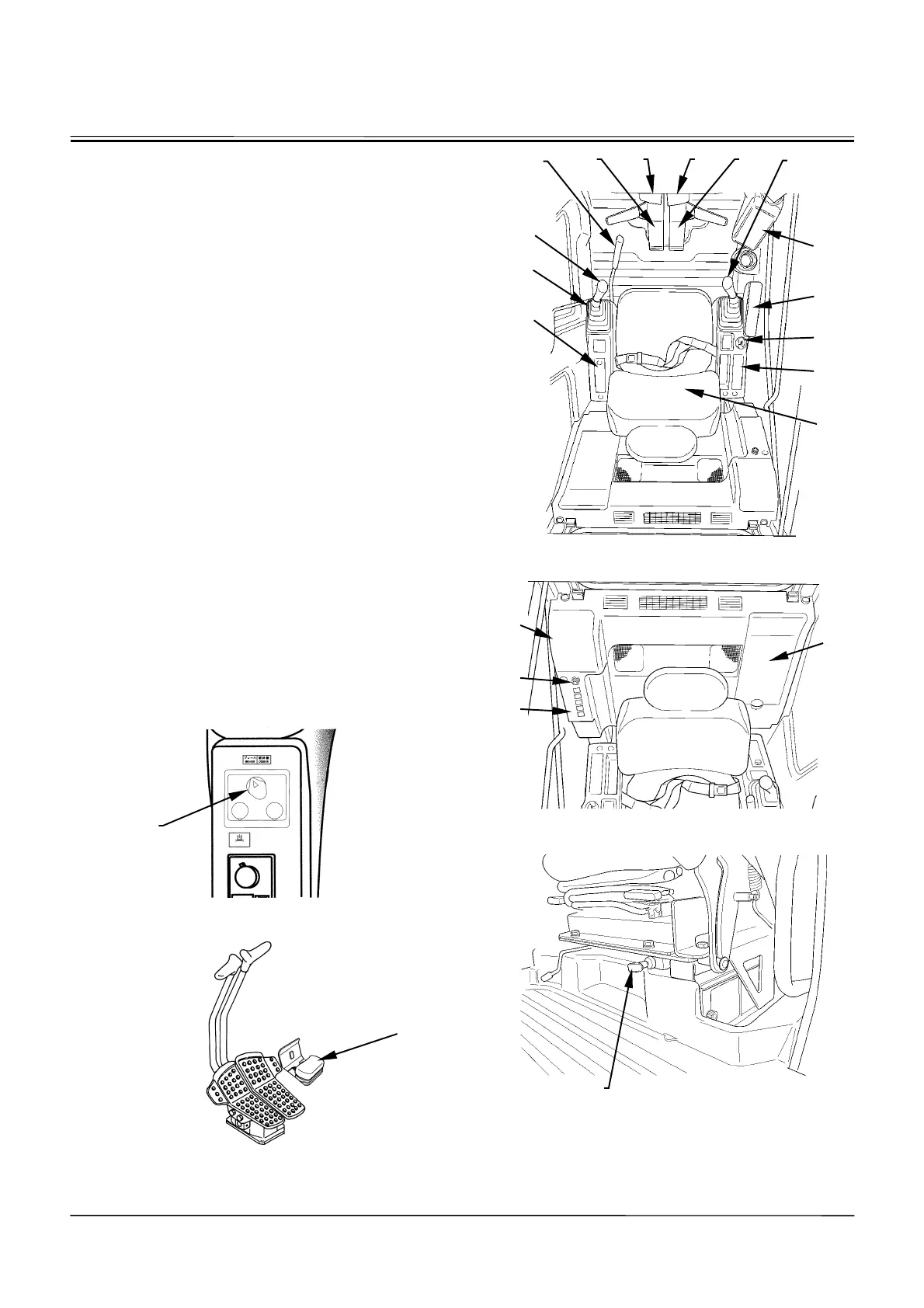

CAB FEATURES
1- Left Control Lever/Horn Switch
(On Top of Lever)
2- Left Travel Pedal
3- Left Travel Lever
4- Right Travel Lever
5- Right Travel Pedal
6- Right Control Lever
7- Monitor Panel
8- Switch Panel
9- Key Switch
10- Air Conditioner Panel --- If Equipped
11- Operator’s Seat
12- Radio
13- Cab Door Release Lever
14- Pilot Control Shut-Off Lever
15- Fuse Box
16- Hot & Cool Box --- If Equipped
17- Cigar Lighter
18- Rear Switch Panel (Optional)
19- Engine Stop Knob
20- Switch Panel 2 (Optional)
21- Boom Swing Pedal (ZAXIS80SB, 80SBLC)
M1CC-13-022
M1CC-13-014
M1GF-01-004
M1GF-01-005
M1SE-01-002
