Hitachi ZAXIS 70 - Lifting Capacities

OPTIONAL ATTACHMENTS AND DEVICES
13-25

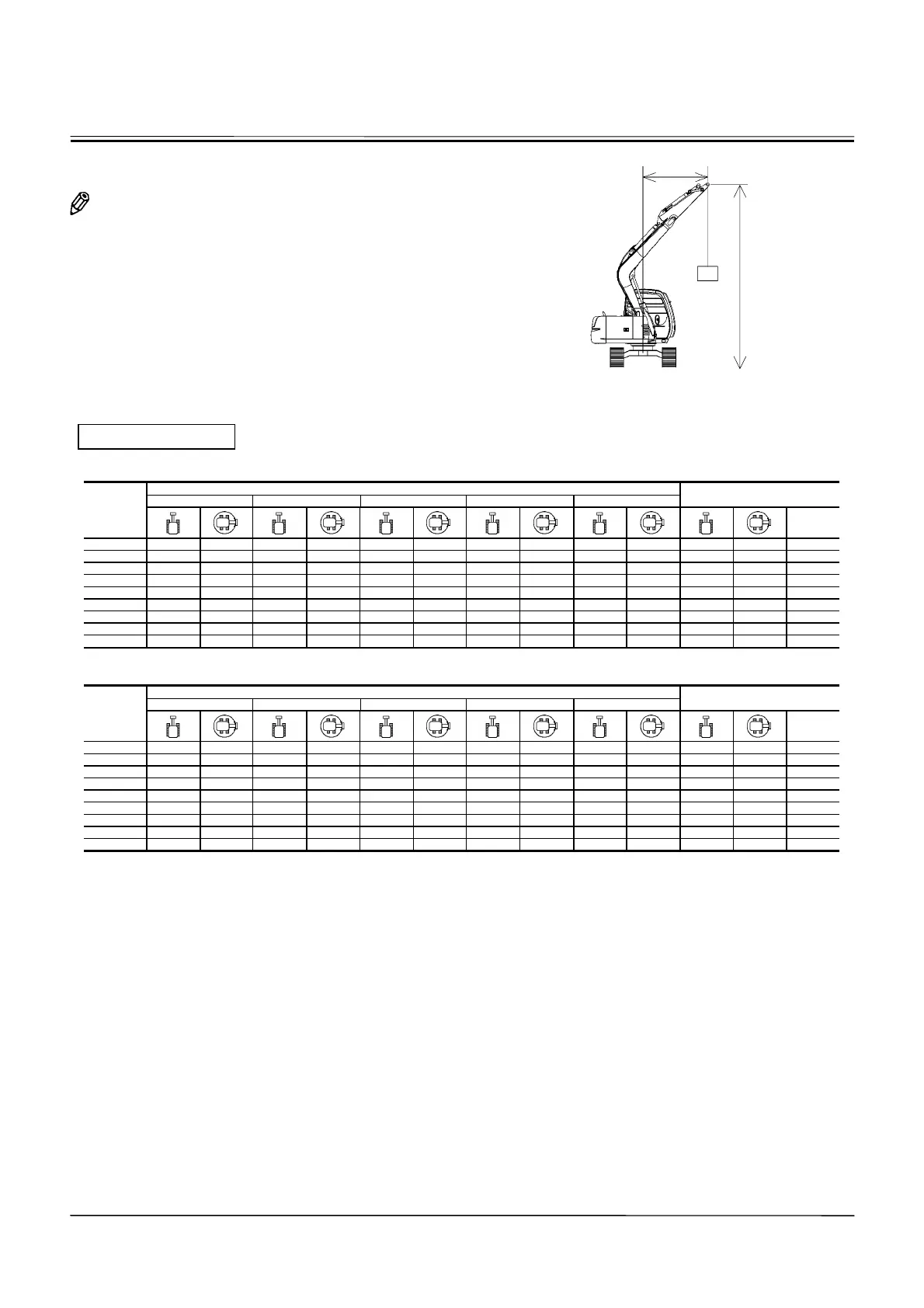

LIFTING CAPACITIES
NOTE: 1. Lifting capacity of the ZX series does not
exceed 75% of tipping load with the machine
on firm, level ground or 87% of full hydraulic
capacity. (ISO 10567)
2. * Indicates load limited by hydraulic capacity.
M1CC-13-024
A : Load radius
B : Load point height
C : Lifting capacity
METRIC MEASURE
ZAXIS70 Monoblock boom, Arm 1.62 m, G 450 mm
Unit; kg
A; Load Radius
1m 2m 3m 4m 5m
Max.
B;
Load
Point
Height
m
REACH
m
5 1630 * 1630 * 3.79
4 1510 * 1320 4.55
3 3020 * 3020 * 2190 * 2190 * 1360 1120 5.00
2 2820 * 2330 1870 1530 1250 1030 5.22
1 2780 2210 1810 1470 1220 1000 5.25
0 (Ground) 2720 2150 1770 1430 1260 1030 5.08
－
1 2810 * 2810 * 4380 * 4240 2700 2130 1750 1410 1410 1140 4.69
－
2 4840 * 4840 * 4450 * 4300 2730 2160 1770 1440 1770 1430 4.01
－
3 3270 * 3270 * 2300 * 2300 * 2.86
ZAXIS70 Monoblock boom, Arm 2.12 m, G 450 mm
Unit; kg
A; Load Radius
1m 2m 3m 4m 5m
Max.
B;
Load
Point
Height
m
REACH
m
5 1430 * 1430 * 1360 * 1360 * 4.44
4 1360 * 1360 * 1450 * 1450 * 1390 1150 1270 * 1100 5.11
3 2160 * 2160 * 1810 * 1810 * 1650 * 1610 1380 1130 1170 960 5.51
2 2460 * 2380 1890 1540 1340 1100 1090 890 5.72
1 2810 2230 1810 1470 1300 1060 1060 860 5.74
0 (Ground) 2420 * 2420 * 2710 2140 1750 1410 1270 1030 1090 880 5.58
－
1 2260 * 2260 * 3730 * 3730 * 2670 2100 1720 1390 1260 1020 1190 960 5.23
－
2 3720 * 3720 * 4860 * 4200 2670 2110 1720 1390 1410 1140 4.64
－
3 5760 * 5760 * 4010 * 4010 * 2720 2160 1990 1600 3.69
C
B
A
