Hitachi ZAXIS 70 - Closing Upper Front Window

OPERATOR'S STATION
1-38

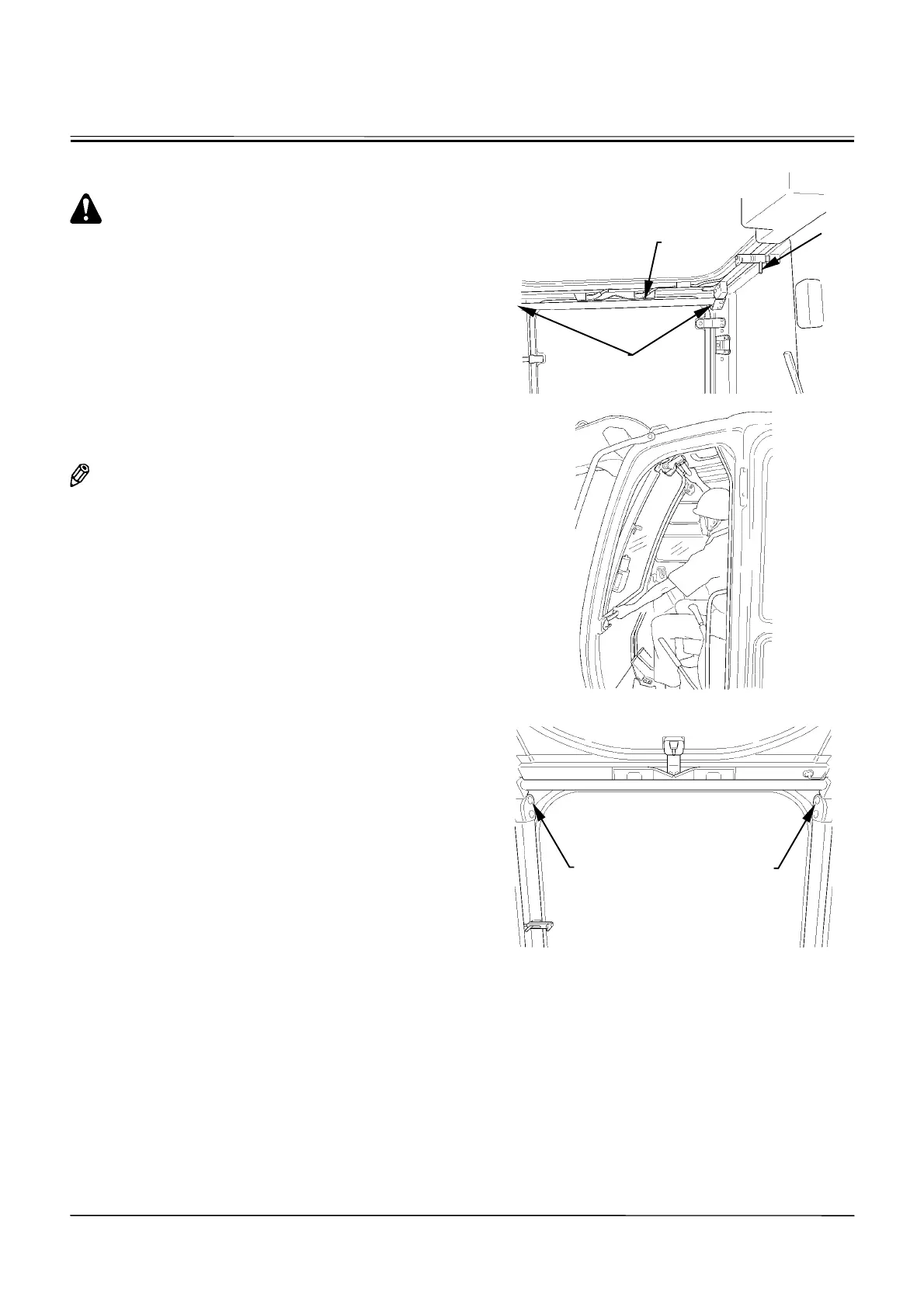

CLOSING UPPER FRONT WINDOW
CAUTION: Avoid possible injury while closing
window.
Upper front window comes down very forcefully.
Close window only when sitting in the operator's
seat. Guide window down slowly.
1. Pull out lock pin (3) to unlock window.
2. Slightly move the window forward while pushing lock
release lever (2) to release auto lock (4).
3. Pull window down slowly until it securely catches into
auto lock (5).
NOTE: The wiper and washer won’t operate until the
upper front window is completely closed.
M1CC-01-031
M1CC-01-020
M1CC-01-021
5
2
4
3
5
