OPERATOR'S STATION
1-49
ADJUSTING CONSOLE HEIGHT
Adjust the console height to the operator’s comfort and/or
work conditions. Adjusting console height can be achieved
using three positions provided vertically at 20 mm intervals.
CAUTION: Before loosening the console, sup-
port the console. Otherwise, the console may
suddenly drop, possibly causing personal injury.
Adjusting Procedures
1. Lower the bucket to the ground. Stop the engine.
2. Move the pilot control shut-off lever to the LOCK po-
sition.

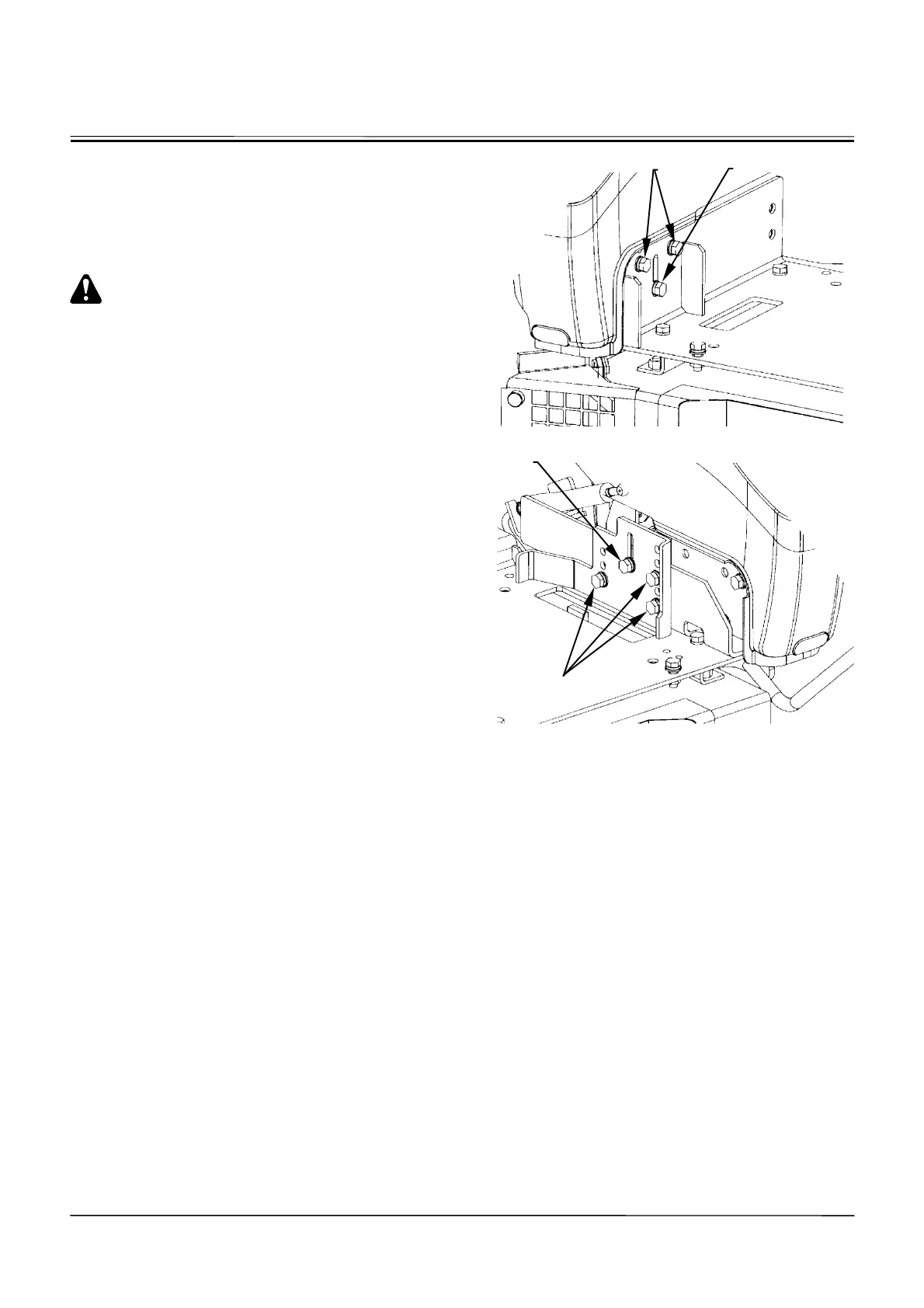

3. Remove right console holding bolt (1). Loosen bolts
(2) to adjust the console height.
4. Remove left console holding bolts (3). Loosen bolt (4)
to adjust the console height.
5. After adjusting, tighten bolts (1, 2, 3, and 4).
Tightening Torque: 50N
m (5 kgf
m)
M1CC-01-040
M1CC-01-041
4
3
2
2
To Next Page
