OPTIONAL ATTACHMENTS AND DEVICES
13-4

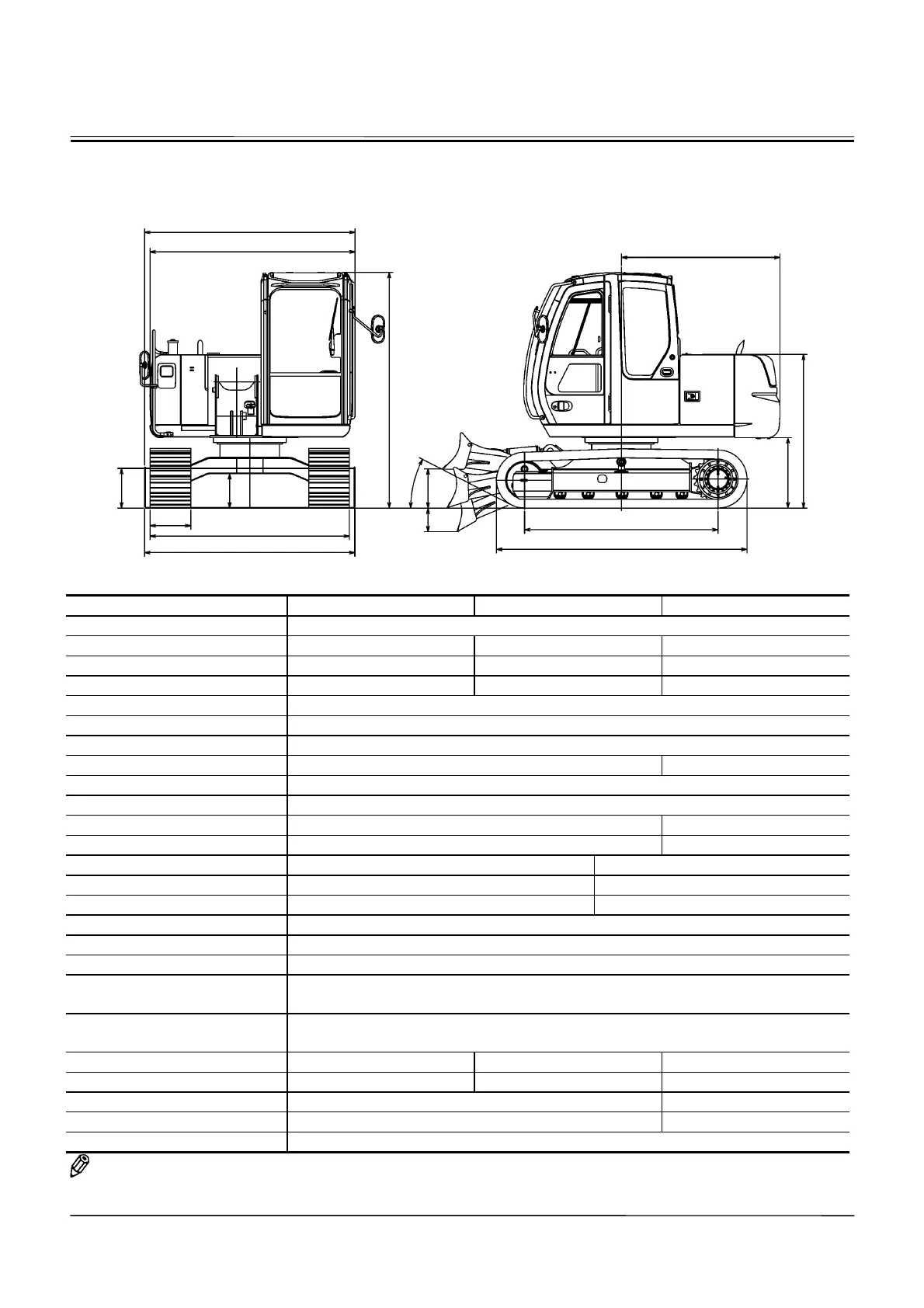

SPECIFICATIONS
ZAXIS70, 70LC, 85US (with Blade)
M1CD-12-004
Model ZAXIS70 ZAXIS70LC ZAXIS85US
Front-End Attachment 1.62 m (5 ft 4 in) Arm
Standard Bucket Capacity (Heaped) 0.28 m
3
(0.37yd
3
) 0.33 m
3
(0.43yd
3
) 0.28 m
3
(0.37yd
3
)
Operating Weight 6970 kg (15400 lb) 7070 kg (15600 lb) 7600 kg (16760 lb)
Basic Machine Weight 5620 kg (12400 lb) 5700 kg (12600 lb) 6300 kg (13890 lb)
Engine Isuzu CC-4JG1 40.5 kW (55 PS)/2100 min

1
(rpm)
A : Overall Width 2320 mm (7 ft 7 in)
B : Cab Height 2600 mm (8 ft 6 in)
C : Rear End Swing Radius 1750 mm (5 ft 9 in) 1210 mm (4 ft 0 in)
D : Minimum Ground Clearance
*
360 mm (1 ft 2 in)
E : Counterweight Clearance
*
760 mm (2 ft 6 in)
F : Engine Cover Height 1680 mm (5 ft 6 in) * 1740 mm (5 ft 9 in)
G : Overall Width of Upperstructure 2260 mm (7 ft 5 in) 2320 mm (7 ft 7 in)
H : Undercarriage Length 2765 mm (9 ft 1 in) 2920 mm (9 ft 7 in)
I : Undercarriage Width 2200 mm (7 ft 3 in) 2320 mm (7 ft 7 in)
j : Sprocket Center to Idle Center 2140 mm (7 ft 0 in) 2290 mm (7 ft 6 in)
K : Track Shoe Width 450 mm (18 in)
L: Blade Width 2320 mm (7 ft 7 in)
M: Blade Height 435 mm (1 ft 5 in)
N: Blade Bottom Highest Position
(above ground level)
*
400 mm (1 ft 4 in)
O: Blade Bottom Lowest Position
(above ground level)
*
280 mm (11 in)
P: Maximum Approach Angle 26.2 degree (tan
θ
=0.49) 28.7 degree (tan
θ
=0.55) 26.2 degree
Ground Pressure 32 kPa (0.33 kgf/cm
2
, 4.6 psi) 30 kPa (0.31 kgf/cm
2
, 4.4 psi) 33 kPa (0.34 kgf/cm
2
)
Swing Speed 11.3 min

1
(rpm) 11 min

1
(rpm)
Travel Speed 5.0/3.4 km/h (3.1/2.1mph) 5.0/3.3 km/h (3.1/2.1 mph)
Gradeability 35 degree (70 %)
NOTE:
*
The dimensions do not include the height of the shoe lug.
G
A
B
K
L
I
D
M
P
O
N
H
J
E
F
C
