Hitachi ZAXIS 70 - Removing and Storing Lower Front Window; Opening Side Windows

OPERATOR'S STATION
1-39

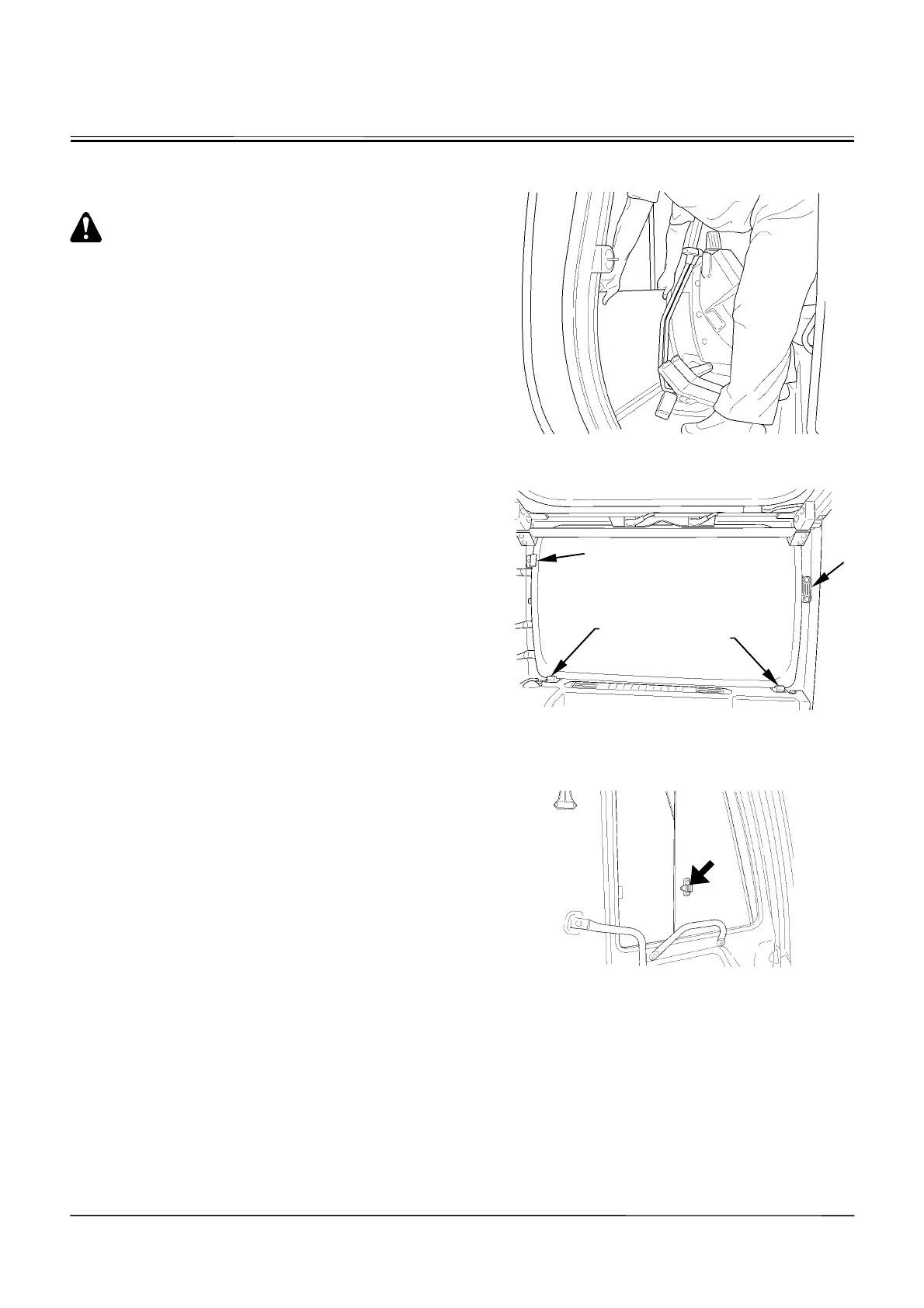

REMOVING AND STORING LOWER FRONT
WINDOW
CAUTION: Take care not to pinch yours fingers
when handling the lower front window.
1. Open the upper front window beforehand when re-
moving the lower front window.
2. While pulling the lower front widow upward, remove
it.
3. Store the removed windowpane in the storing position.
After inserting the windowpane into rubbers (2 and 3),
slide it sideways securely into rubber (1). Then, push
fastener (4) to lock.
OPENING SIDE WINDOWS
Opening Cab Door Window
Slide rear pane to the front.
M1CC-01-022
M1CC-01-023
M1CC-01-026
2
1
3
4
Cab Door Window
