OPERATOR'S STATION
1-3

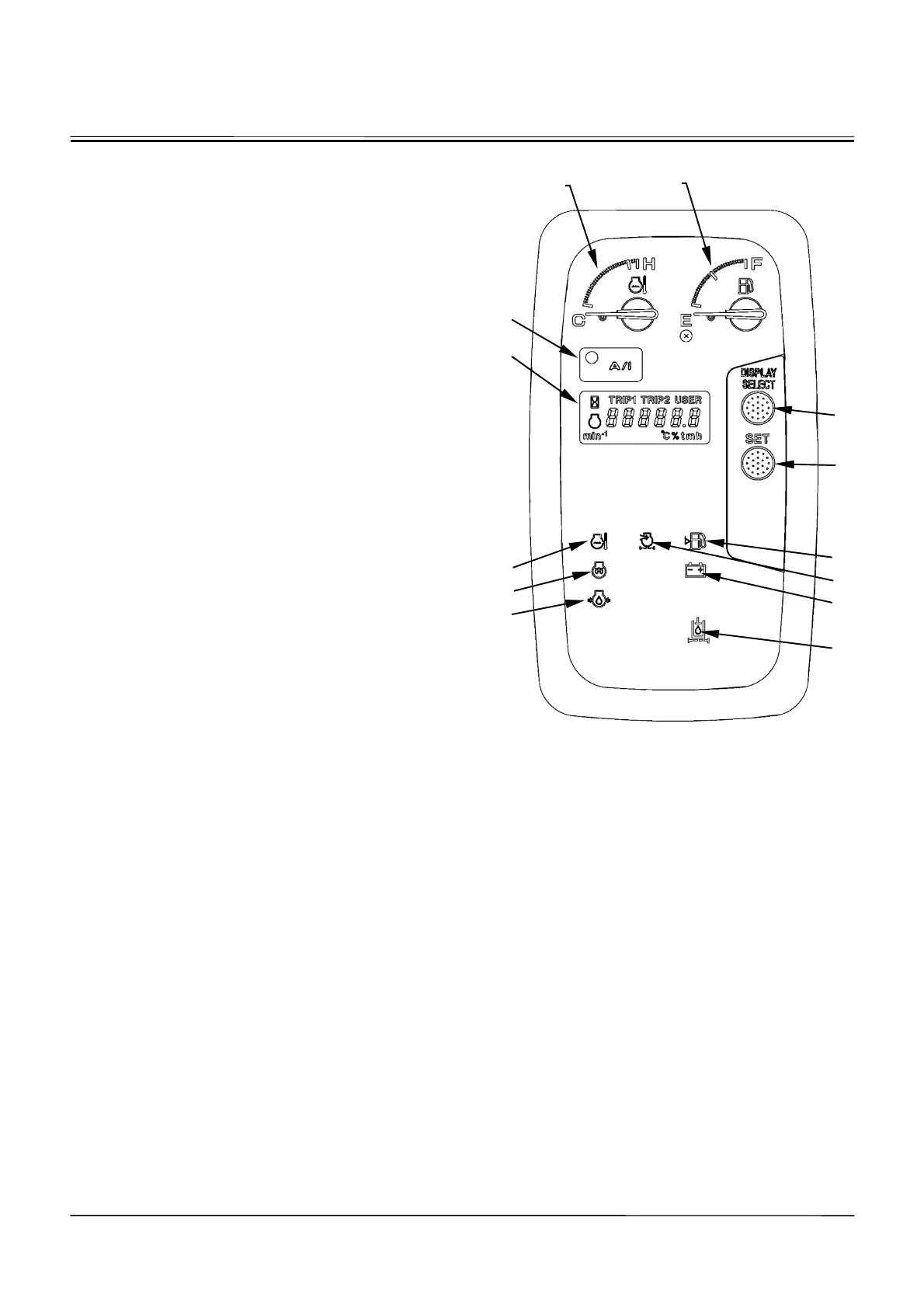

MONITOR PANEL
1- Coolant Temperature Gauge
2- Fuel Gauge
3- Display Selection Switch
4- Set Switch
5- Fuel Level Indicator
6- Air Filter Restriction Indicator
7- Alternator Indicator
8- Hydraulic Oil Filter Restriction Indicator (Optional)
9- Engine Oil Pressure Indicator
10- Preheat Indicator
11- Overheat Indicator
12- Liquid Crystal Display (LCD) (Hour Meter, etc.)
13- Auto-Idle Indicator
