OPERATOR'S STATION
1-18
CIGAR LIGHTER
Operation
IMPORTANT: In case cigar lighter (2) doesn’t pop out
automatically 30 seconds after pushing
cigar lighter (2) in, pull out cigar lighter
(2) manually. Then, consult the your
nearest Hitachi dealer.
1. Turn key switch (1) to the ACC or ON position.
2. Press and release cigar lighter (2) knob.
3. Cigar lighter (2) knob will return to the original posi-
tion when cigar lighter (2) becomes usable. Pull the
cigar lighter out to use.
4. After using cigar lighter (2), insert cigar lighter (2) into
the panel until the knob is seated in the original posi-
tion.
Using Cigar lighter (2) Port as External Power
Source
Use cigar lighter (2) port to supply power to lighting
equipment for servicing the machine.
IMPORTANT: Only 24 V electric power is available
from the cigar lighter port on this ma-
chine. Never connect accessories that
use power other than 24 V. Damage to
the batteries and accessories may result.
Don’t supply power to accessories for a
long time without running the engine.
Failure to do so may discharge the bat-
teries.
1. Pull cigar lighter (2) knob out.
2. Correctly insert the accessory socket into cigar lighter
(2) port.
3. Turn key switch (1) to the ACC or ON position. Power
is supplied to the connected accessory.
4. After using the accessory, disconnect the accessory
socket and insert cigar lighter (2) into the port.

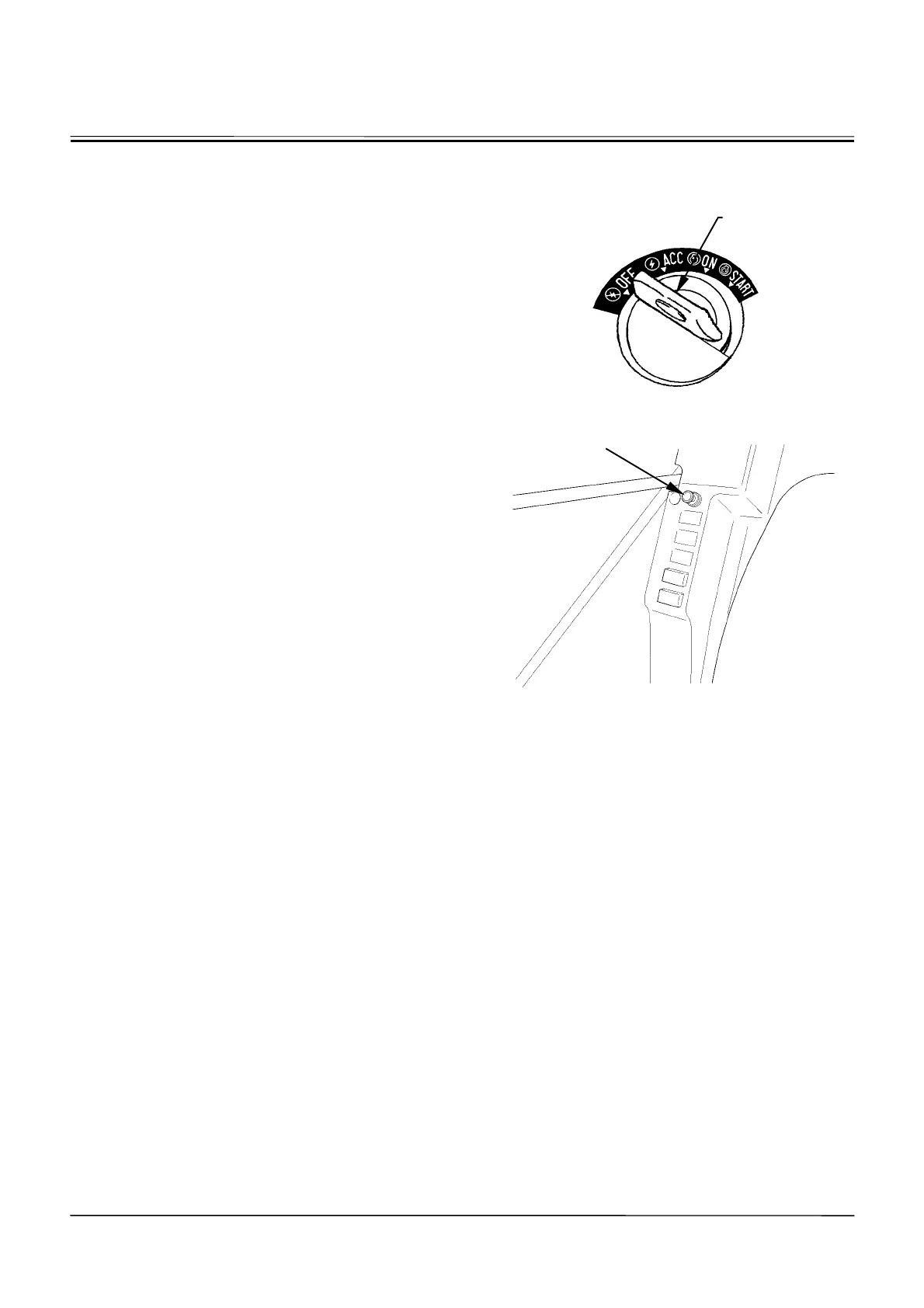

M178-01-049
