MAINTENANCE
7-7
HOOD AND ACCESS COVERS
ZAXIS70, 70LC, 80SB, 80SBLC, 80LCK
CAUTION:
•
Do not keep the hood and access covers open
when the machine is parked on a slope, or
while the wind is blowing hard. The hood or
access covers may close accidentally, possibly
resulting in personal injury.
•
When opening or closing the hood and access
covers, take extra care not to catch fingers
between the base machine and the hood or
access covers.
x

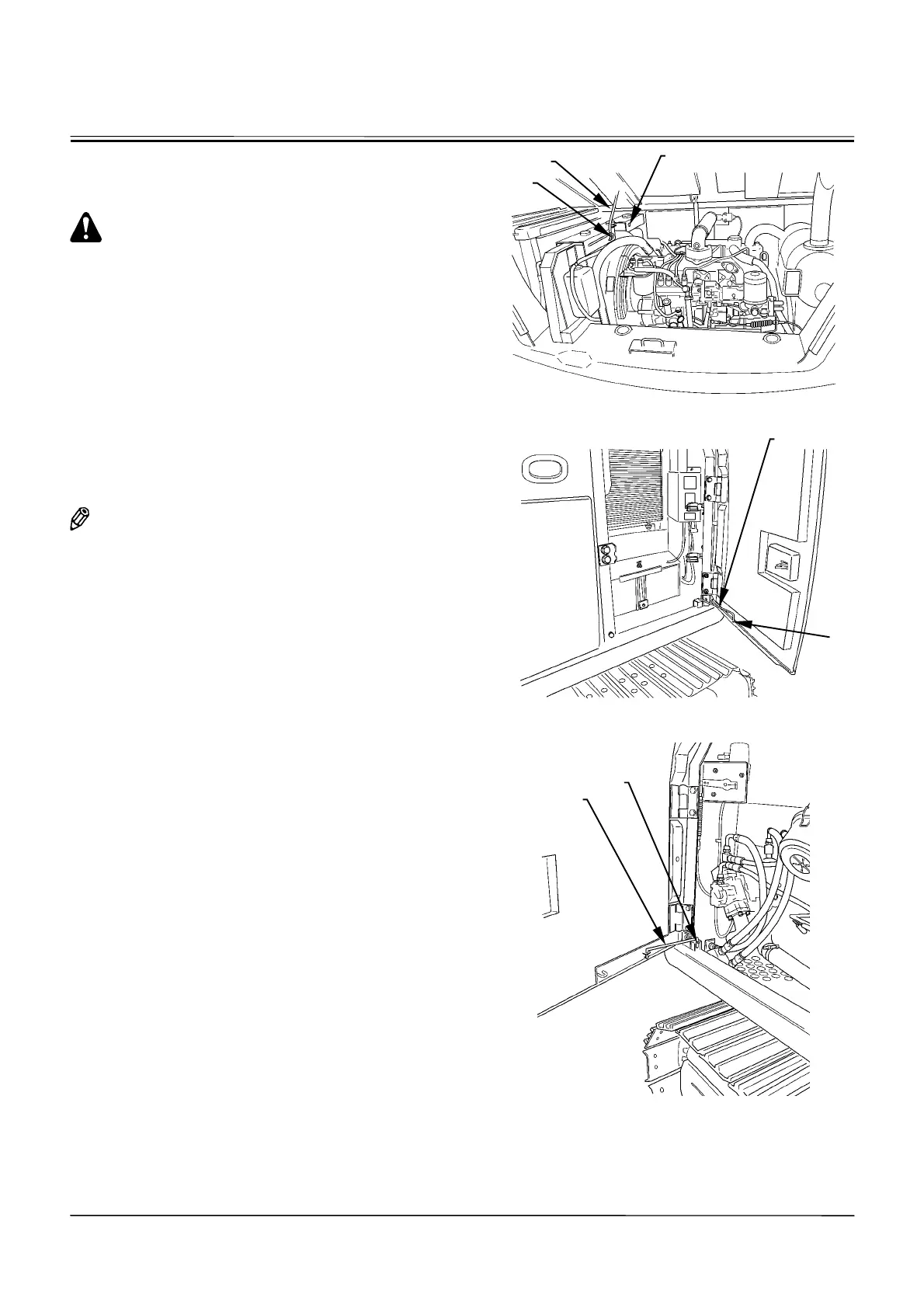

When the engine access cover is opened, raise the
cover until stay (1) is secured with catch (2).
NOTE: Work on the engine only after providing a safe
footing such as a stepladder. In case working
on the engine is required, remove stay (1) from
catch (2). While raising the engine access cover,
insert stay (1) into holder (3) to secure the en-
gine access cover.
Be sure to close the engine access cover only after in-
serting stay (1) into catch (2).
x
After opening the right and/or left access cover, be sure
to secure the cover by inserting rod (4) into frame lock
hole (5).
M1CD-01-011
M1CD-01-006
M1CD-07-036
3
1
Engine Cover
Right Cover
Left Cover
2
4
5
5
4
To Next Page
