Hitachi ZAXIS 70 - Switch Panel and Controls

OPERATOR'S STATION
1-10

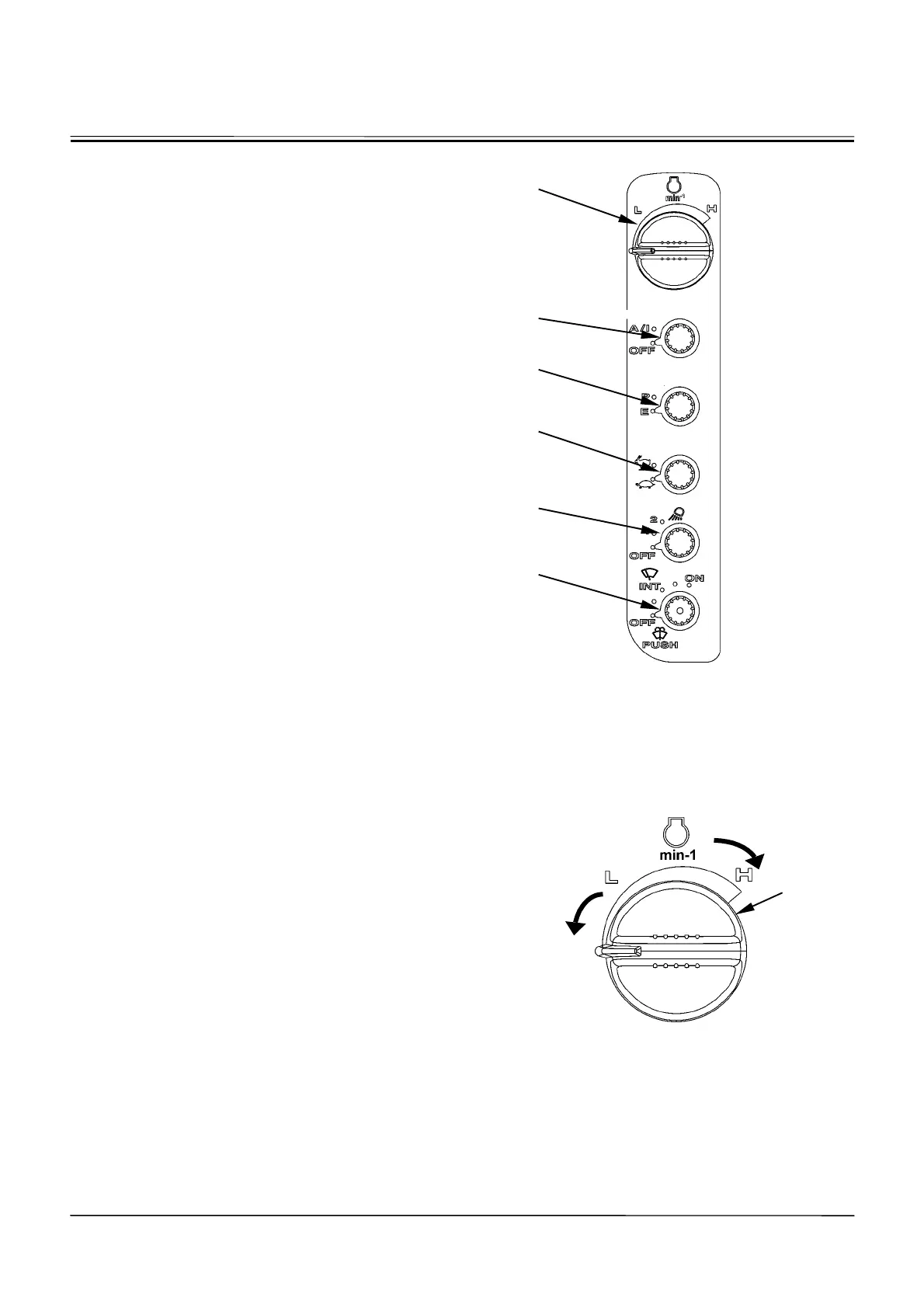

SWITCH PANEL
1- Engine Control Dial
2- Auto-Idle Switch
3- Power Mode Switch
4- Travel Mode Switch
5- Work Light Switch
6- Wiper/Washer Switch
ENGINE CONTROL DIAL
Use engine control dial (1) to adjust engine speed.
Turn it clockwise to increase engine speed or counter-
clockwise to decrease engine speed.
•
The fully clockwise position : Fast idle
•
The fully counterclockwise position : Slow idle
M1CC-01-101
M178-01-011
1
Slow Idle
1
2
6
Fast Idle
3
4
5
