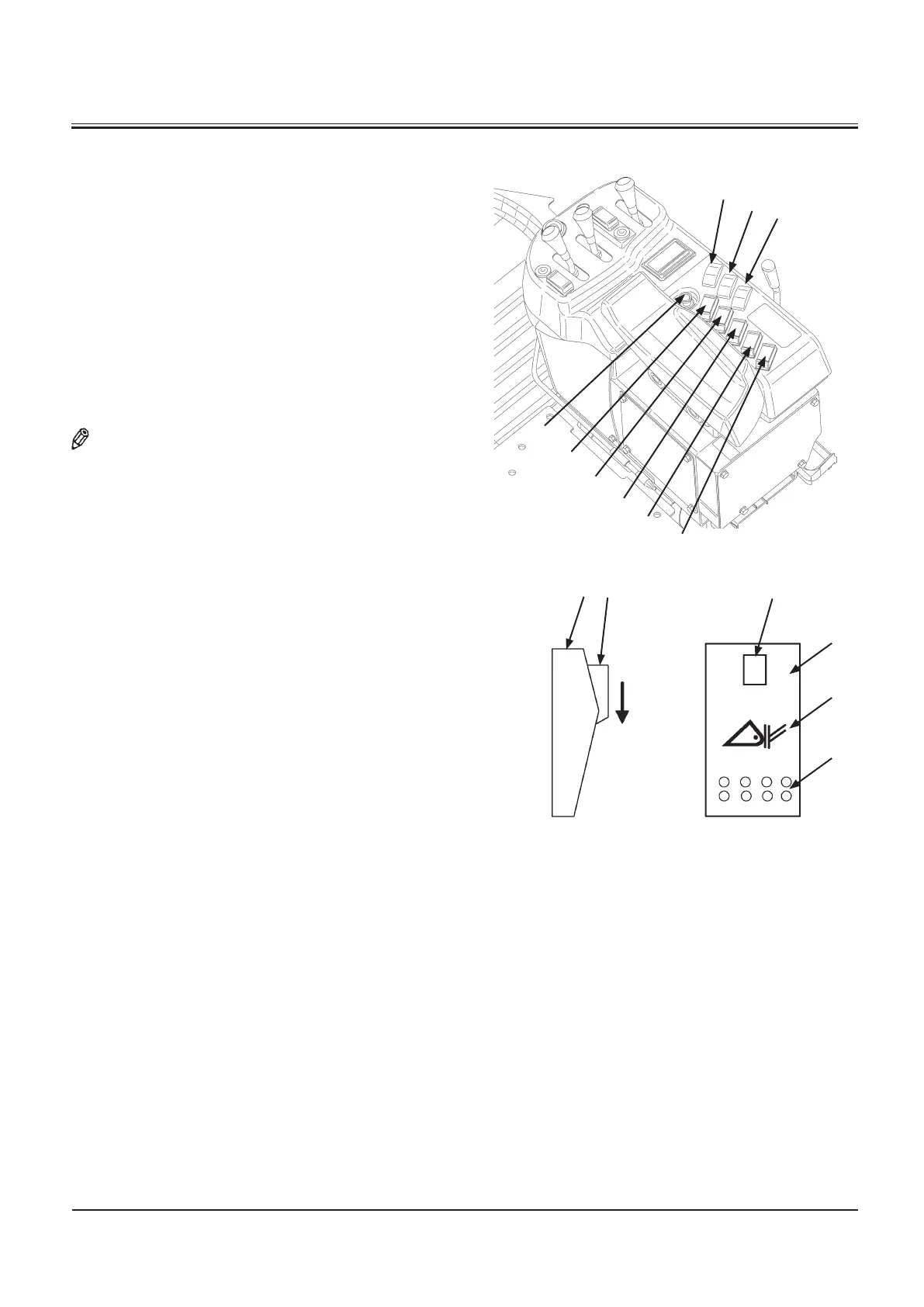

1- Quick Coupler Switch (Optional)
2- Lift Arm Auto Leveler Downward Set Switch (Optional)
3- Lift Arm Auto Leveler Upward Set Switch (Optional)
4- Cigarette Lighter
5- Forward/Reverse Selector Switch
6- Ride Control Switch (Optional)
7- Fog Lamp Switch (Optional)
8- Fan Reversing Switch
9- Emergency Steering Operation Check Switch
NOTE: Optional lift arm auto levelers are comprised of two
units, each one of “LOWER” and “RAISE” switches.
This switch is used to remove or install the pins when replacing
the attachment such as the bucket. While sliding lock switch
(10) on switch (1) toward you, press switch near side (13) to re-
move the pins. Press switch distant side (11) to install the pins.
When deactivating the switch function in the half way, press
switch center (12).
11- Pin installation
12- Neutral
13- Pin removal
M4GB-01-007
M4GB-01-080
Deactivate
