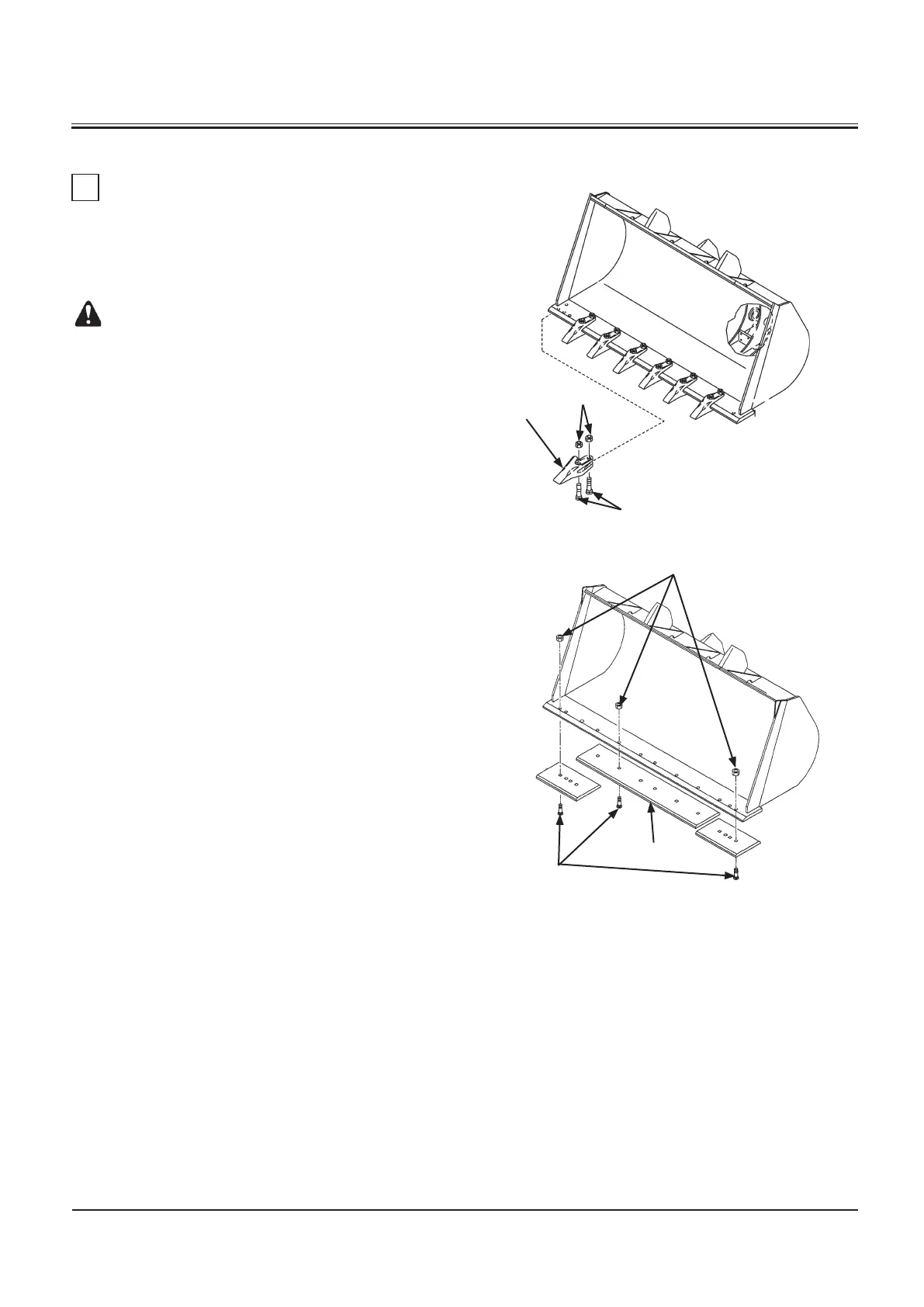

Check bucket teeth for wear and looseness.
1. Raise the bucket to an appropriate height with the buck
-
et bottom parallel to the ground. Insert blocks under the
bucket to support it.
Stop the engine.
2. Loosen bolts (1) and nuts (2). Remove bucket teeth (3) or
cutting edge (4).
3. Install new teeth (3) or cutting edge (4). If the reverse side
of a cutting edge is not worn much, use it again with the
face reversed. If both sides are worn out, replace it with a
new one.
4. Tighten nuts (2).
Tightening torque:
Bucket teeth: 1068 N•m (109 kgf•m)
Cutting edge: 1940 N•m (198 kgf•m)
5. Retighten mounting nuts (2) after a few hours of opera
-
tion.
