The inclination of the seat surface can be changed. While
pulling up lever (5) provided in the front of the seat, press or
release the seat surface to adjust the inclination of the seat
surface from 3° to 11° in 4 steps.
A: 3°
B: 2.5°
The fore-aft position of only the seat surface can be
changed. While pulling up lever (6) provided in the front the
seat, slide the seat in the front or rear direction to adjust the
seat depth up to 60 mm by 15 mm interval.
The angle of the armrest can be adjusted by turning knob (7)
provided under the armrest.
A: Raise
B: Lower
The reclining angle can be adjusted up to 10° forward and
34° backward by 2° intervals respectively by pulling up re
-
clining adjusting lever (8). After moving the reclining to the
desired position, return the reclining adjusting lever to the
original position. Check that the reclining angle is locked in
the desired position.

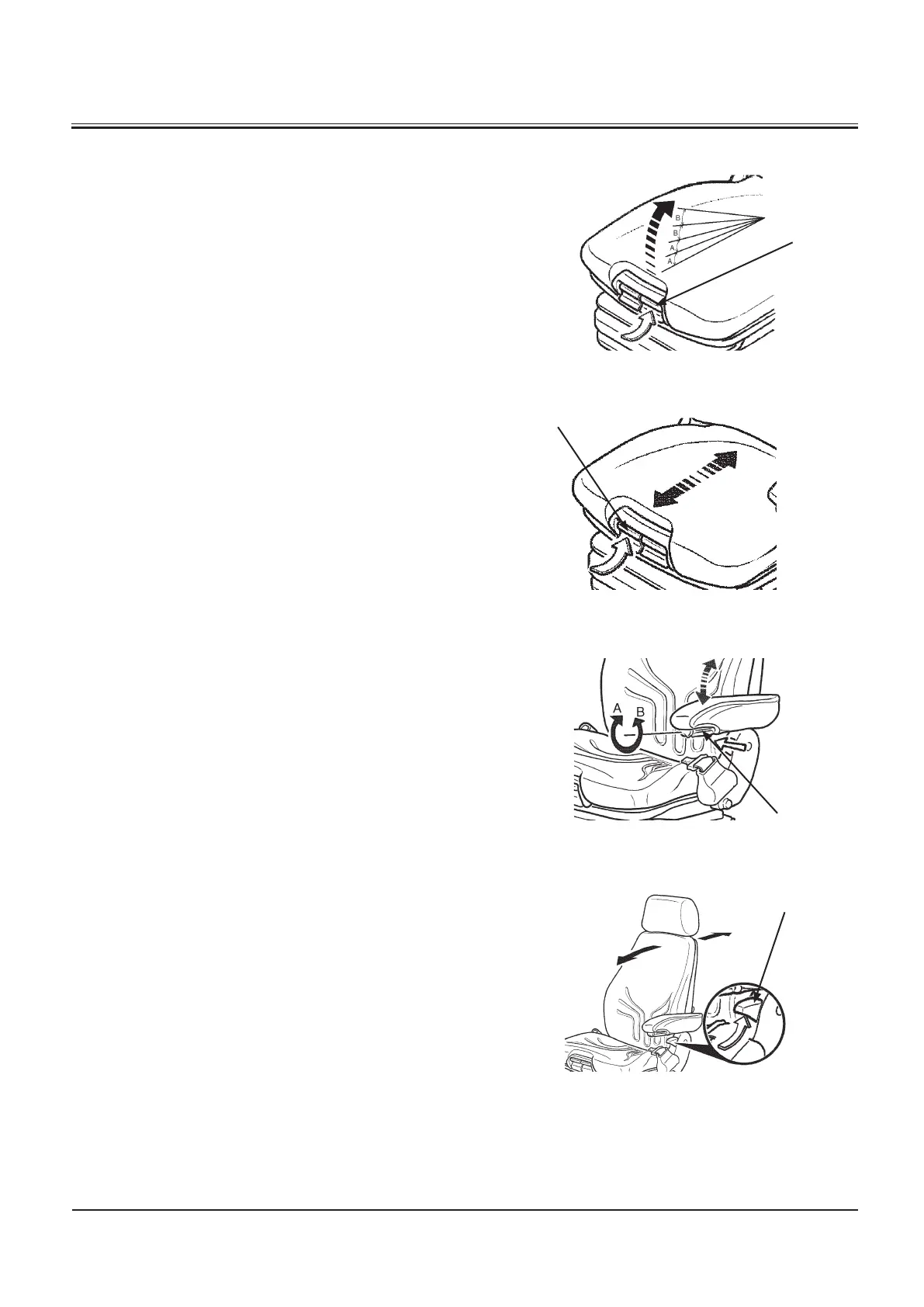

M4GB-01-093
