7-9

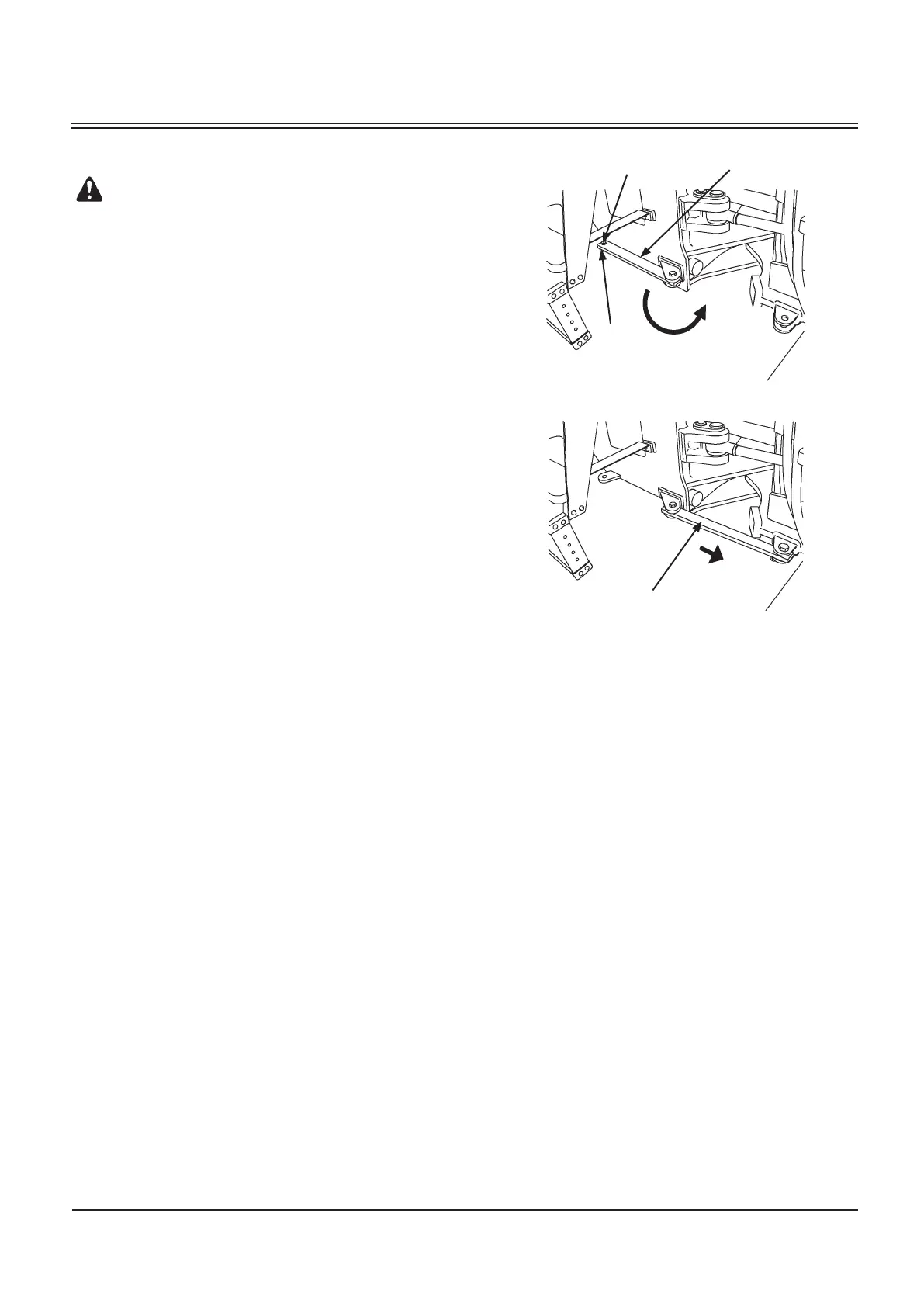

1. Align the front and rear vehicle frame centers with each
other.
2. Remove β-form pin (2) to remove set pin (1) from the
hole.
3. Pull out and rotate articulation lock bar (3) to align it with
the front frame hole.
4. Install set pin (1) into the front frame hole and the articu
-
lation lock bar (3) tip end hole. Install β-form pin (2) to
lock the articulation lock bar (3) in position.
M4GB-01-136
M4GB-01-135
Front
Attachment side
To Next Page
