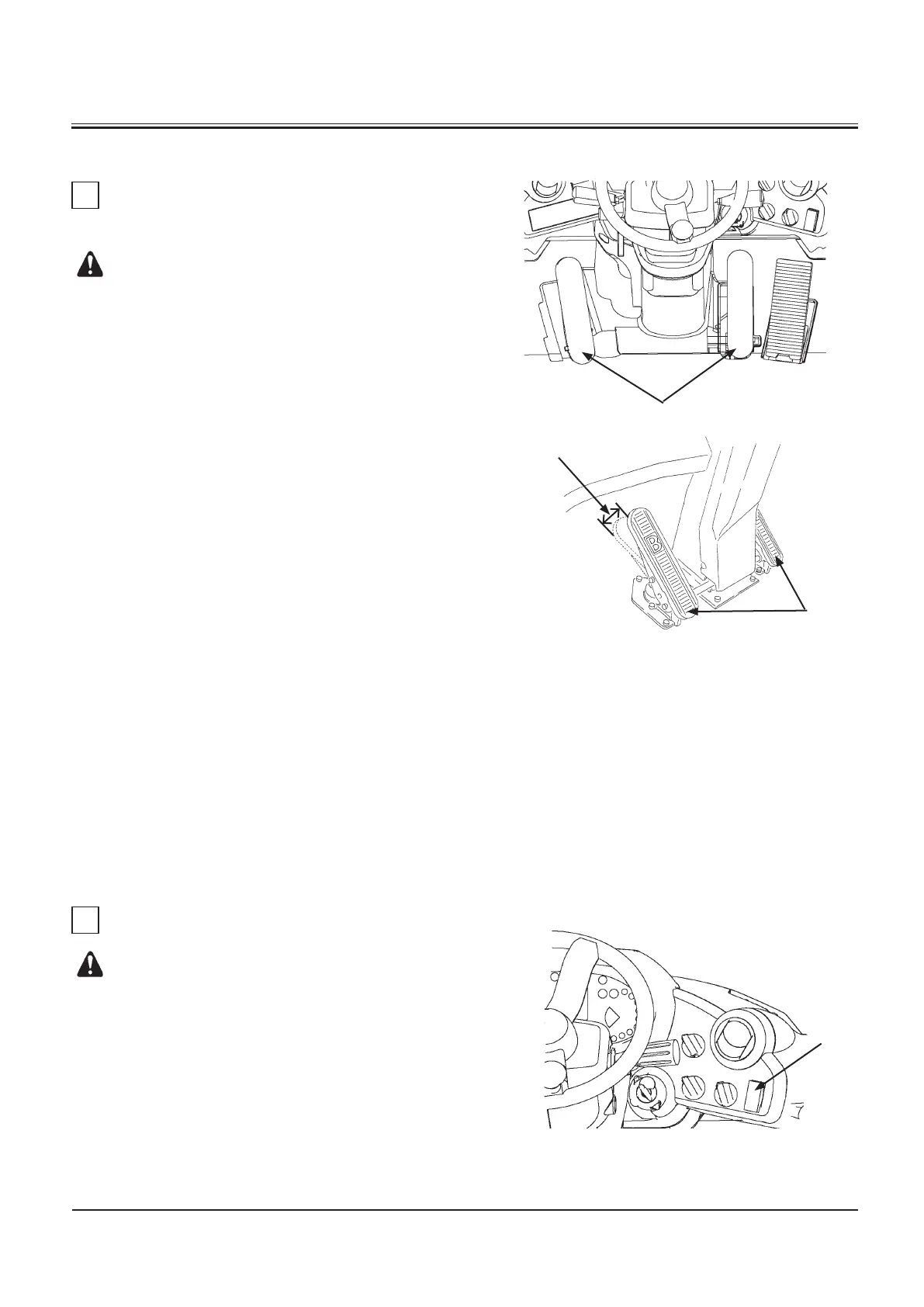

While stepping on brake pedal (1), check the pedal movement,
the brake performance, and the play in the pedal stroke for any
abnormality.
The machine must be stopped within 5 m range after the
brake is applied while driving at the speed of 20 km/h on a
flat dry paved surface road.
Measure the pedal stroke at pedal tip (2) by pressing the
pedal with hand until the hand feels an intermittent repul
-
sion from the pedal.
If the play is outside the specified range, consult your near
-
est Hitachi dealer. In case abnormal pedal operation and/or
performance is noticed, consult your nearest Hitachi dealer.
Get the machine checked and repaired.
Park the machine with no load applied on a 15° inclining dry
surface slope. The machine must not move with the parking
brake switch (4) ON. Should the machine move during inspec
-
tion, consult your nearest Hitachi dealer. Get the brake system
checked and repaired.
