1-69

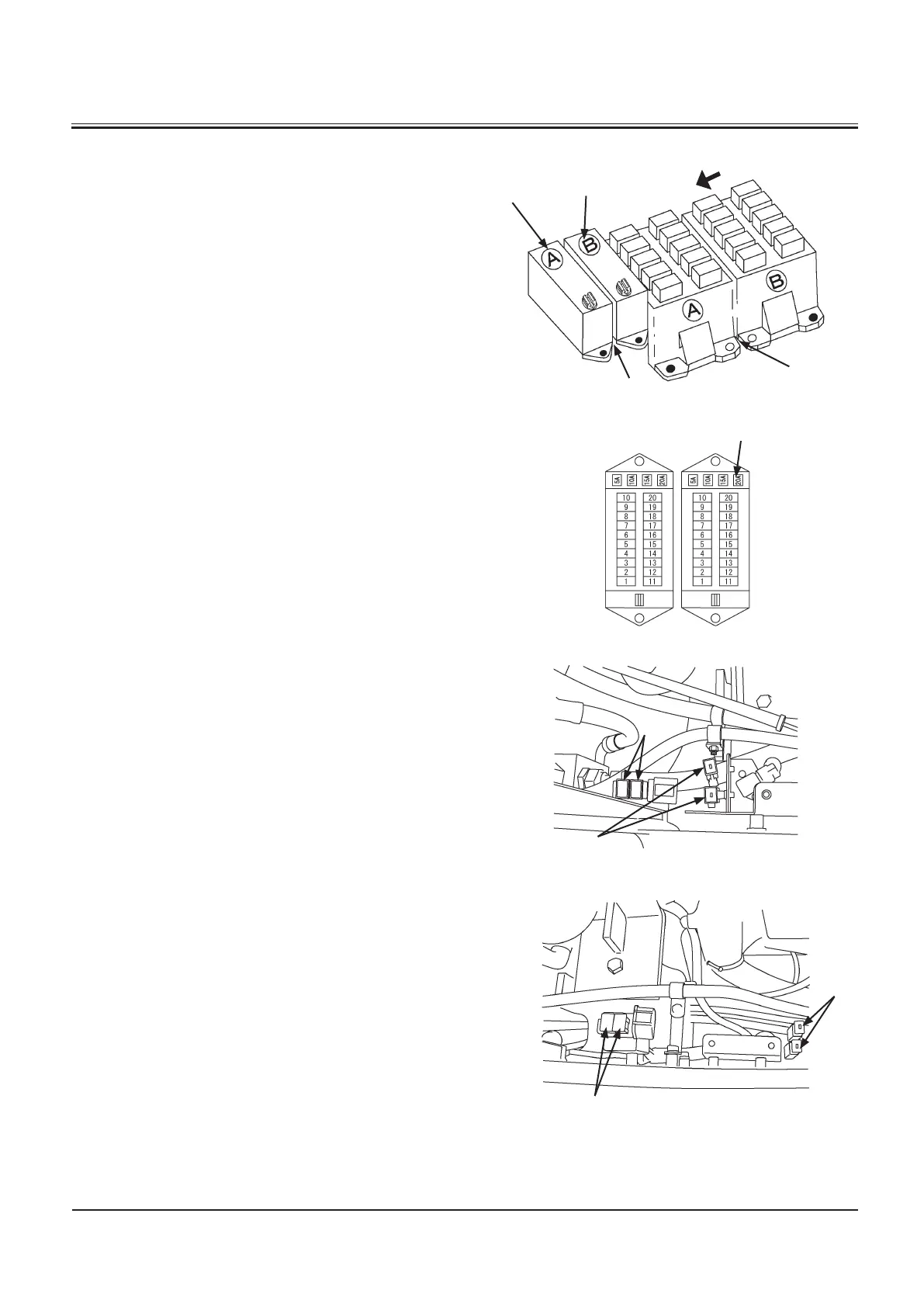

The fuses function as a safety valve to prevent excess current
from flowing in the electrical system. Slow blow fuses (1, 2, 3,
and 4) are used. Each fuse capacity varies depending on its
corresponding circuit. Be sure to replace the blown fuses only
with the specified ones. When checking fuses, check the slow
blow fuses and (1 and 2) and fuses A and B in this order..
ZW180: 1- 120A
2- 65A
ZW220/ZW250: 1- 100A
2- 65A
ZX310: 1- 120A
2- 65A
Front Attachment
b-Side
a-Side
Relay Boxes
Fuse Boxes
M4GB-01-107
Fuse Box A Fuse Box B
M4GB-01-108
A 30A-fuse is provided on
the ZW180, ZW220 and 250.
M4GB-01-110
M4GB-01-109
ZW180, ZW220, ZW250
ZW310
To Next Page
