1- Weight support adjustment
2- Height Adjustment
3- Inclination Adjustment
4- Fore-aft Depth Adjustment
5- Fore-Aft Position Adjustment
6- Armrest Angle Adjustment
7- Armrest Adjustment
8- Reclining Angle Adjustment

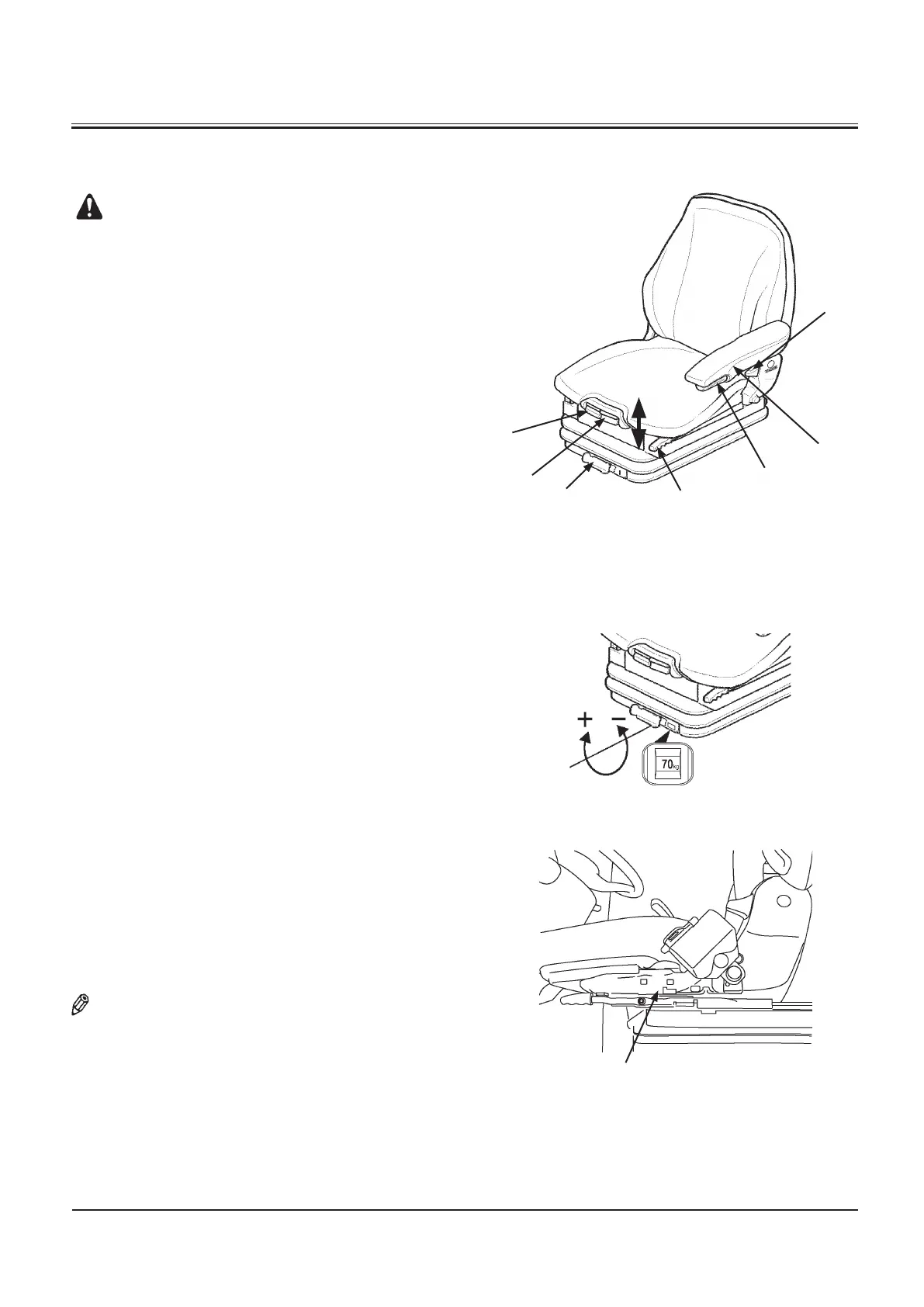

Adjust the weight support to protect the operator’s body.
Turn lever (1) to set the scale (10 kg intervals) to the correct
operator’s weight.
Adjustment range: 50 kg to 130 kg
Lift both side bottom (9) of the entire seat to the desired
height using your entire body force. After a click (locking)
sound is heard, slowly release the seat. After the seat is
lifted to the highest position beyond the adjustable range, it
is possible to lower the seat to the lowest position. The seat
height can be set in 3 steps in the 60 mm range between
the highest and lowest positions.
NOTE: When adjusting the seat height, hold the seat with
both hands and lift the seat using your entire body
force.
M4GB-01-100
M4GB-01-101
M4GB-01-102
