M4GB-07-001
Item Page Item Page
1 Grease (Front Joint Pin) 7-22 11 Grease (Rear Axle Support Pin) 7-25
2 Grease (Frame Hinge Pin)
7-24
12 Axle Gear Oil (Final drive, Differential
gear)
7-36
3 Transmission Oil Filter 7-34 13 Grease (Front Axle Support pin) 7-25
4 Hydraulic Oil Filter (Suction) 7-45 14 Transmission Oil 7-34
5 Hydraulic Oil Filter (Main) 7-47 15 *Engine Oil Filter 7-30
6 Hydraulic Oil 7-42 16 Hydraulic Oil Filter (Pilot) 7-46
7 Coolant(Long-Life Coolant) 7-69 17 Grease (Steering Cylinder Pin) 7-23
8 *Fuel Filter, Fuel Pre-Filter 7-53 to 61 18 Grease (Propeller Shaft) 7-25
9 Fuel Oil (Diesel Fuel) 7-53 19 Grease (Propeller Shaft center support) 7-26
10 Engine Oil 7-28
* mark: Indicates that the location of the parts differs depending on the machine models.
•

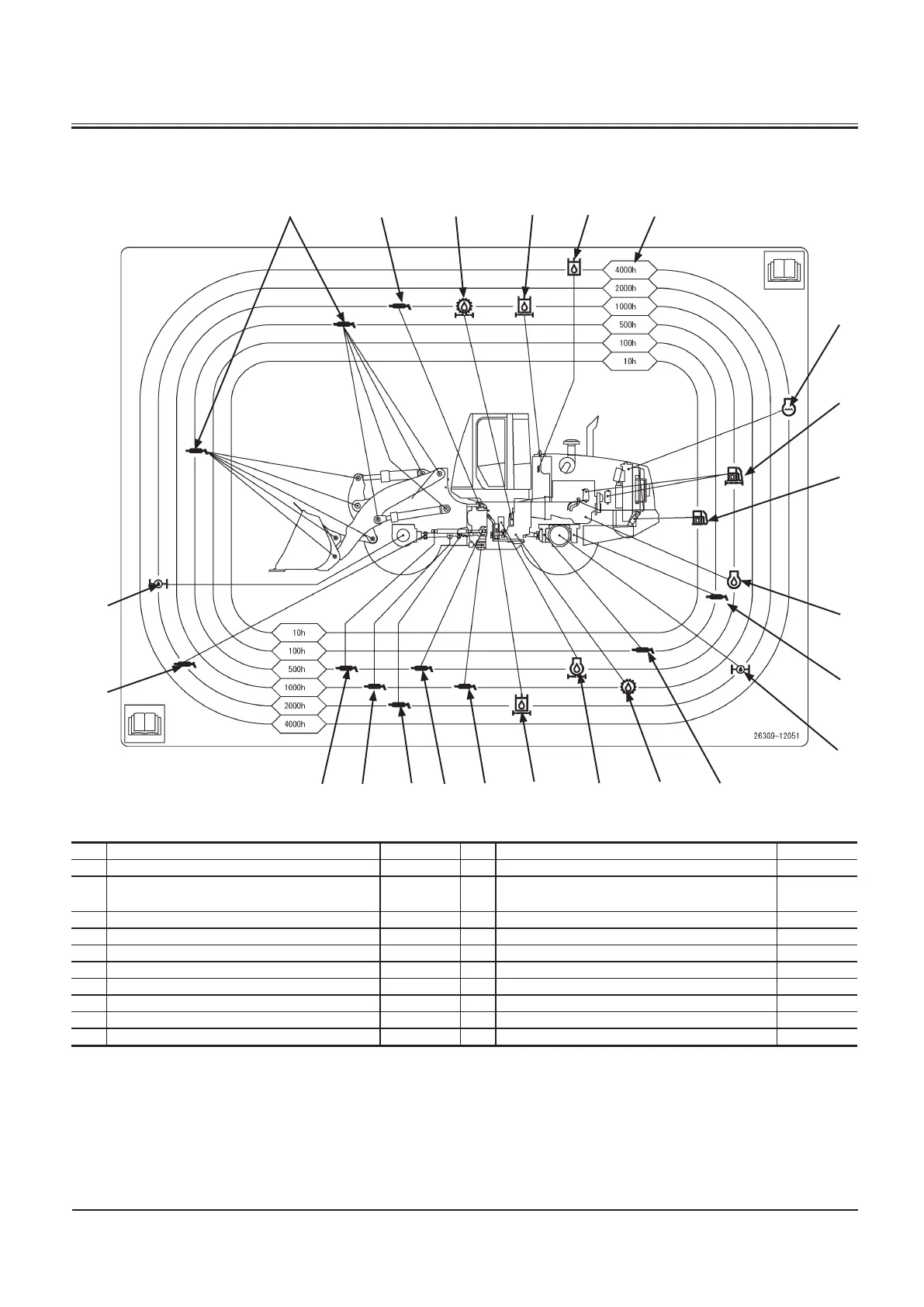

Maintenance Guide Table
Sample: ZW220 and ZW250
Lubrication Interval
To Next Page
