2. Specifications
2.3. Characteristics of I/O conversion
R200 Analog Input Module 2MLF-AV8A, AC8A User's Guide 29
September 2010 Honeywell
Digital output value for voltage input characteristics is as specified below.
(Resolution (based on 1/16000): 0.25mV)
Digital output range
Analog input voltage (V)
0.952 1 2 3 4 5 5.047
Unsigned value
(-192 ~ 16191)
-192 0 4000 8000 12000 16000 16191
Signed value
(-8192 ~ 8191)
-8192 -8000 -4000 0 4000 8000 8191
Precise value
(952 ~ 5048)
952 1000 2000 3000 4000 5000 5048
Percentile value
(-120 ~ 10119)
-120 0 2500 5000 7500 10000 10119
2. If the range is DC 0 ~ 5V

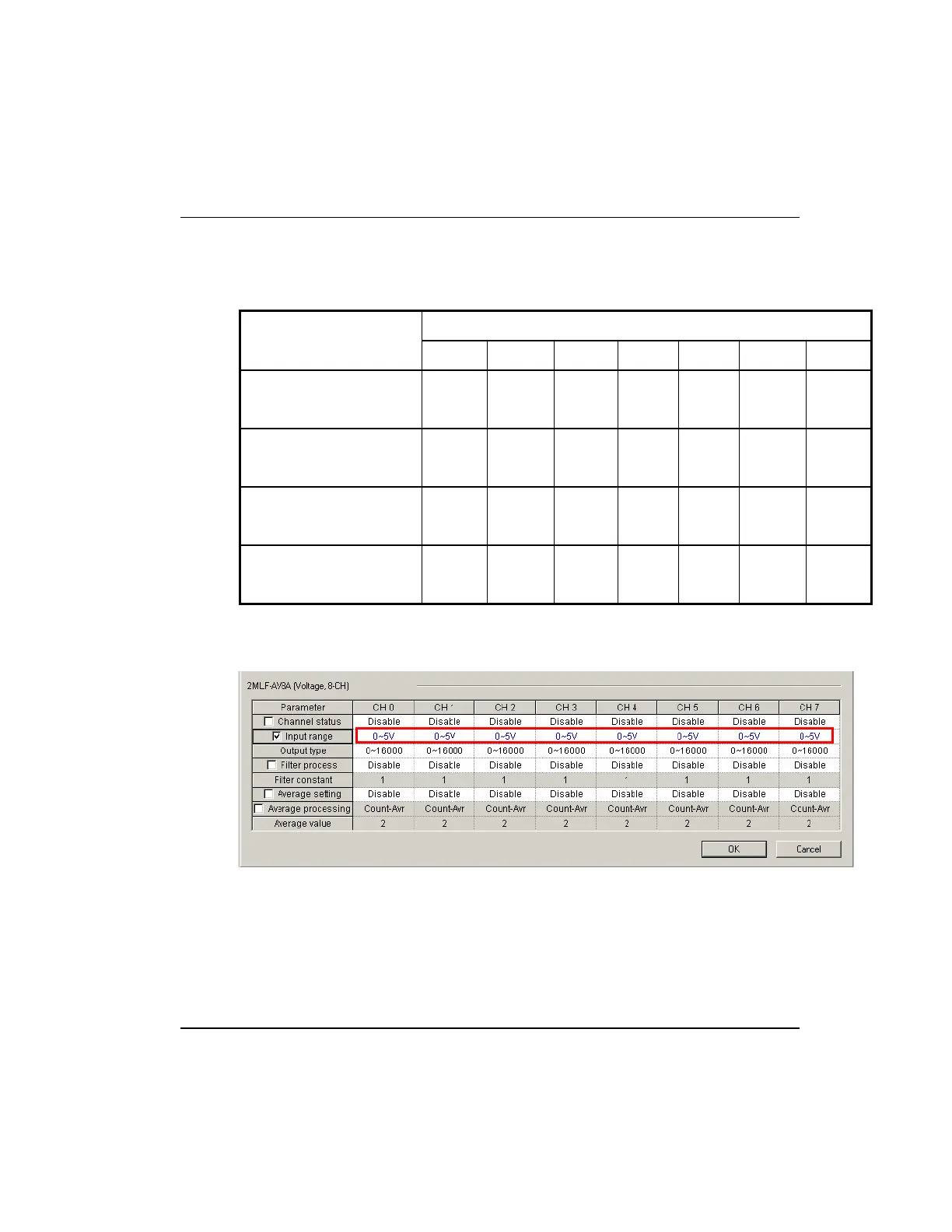

On the I/O Parameters Setting window, set Input Range to 0 ~ 5V.
