2. Specifications
2.3. Characteristics of I/O conversion
30 Analog Input Module 2MLF-AV8A, AC8A User's Guide R200
Honeywell September 2010

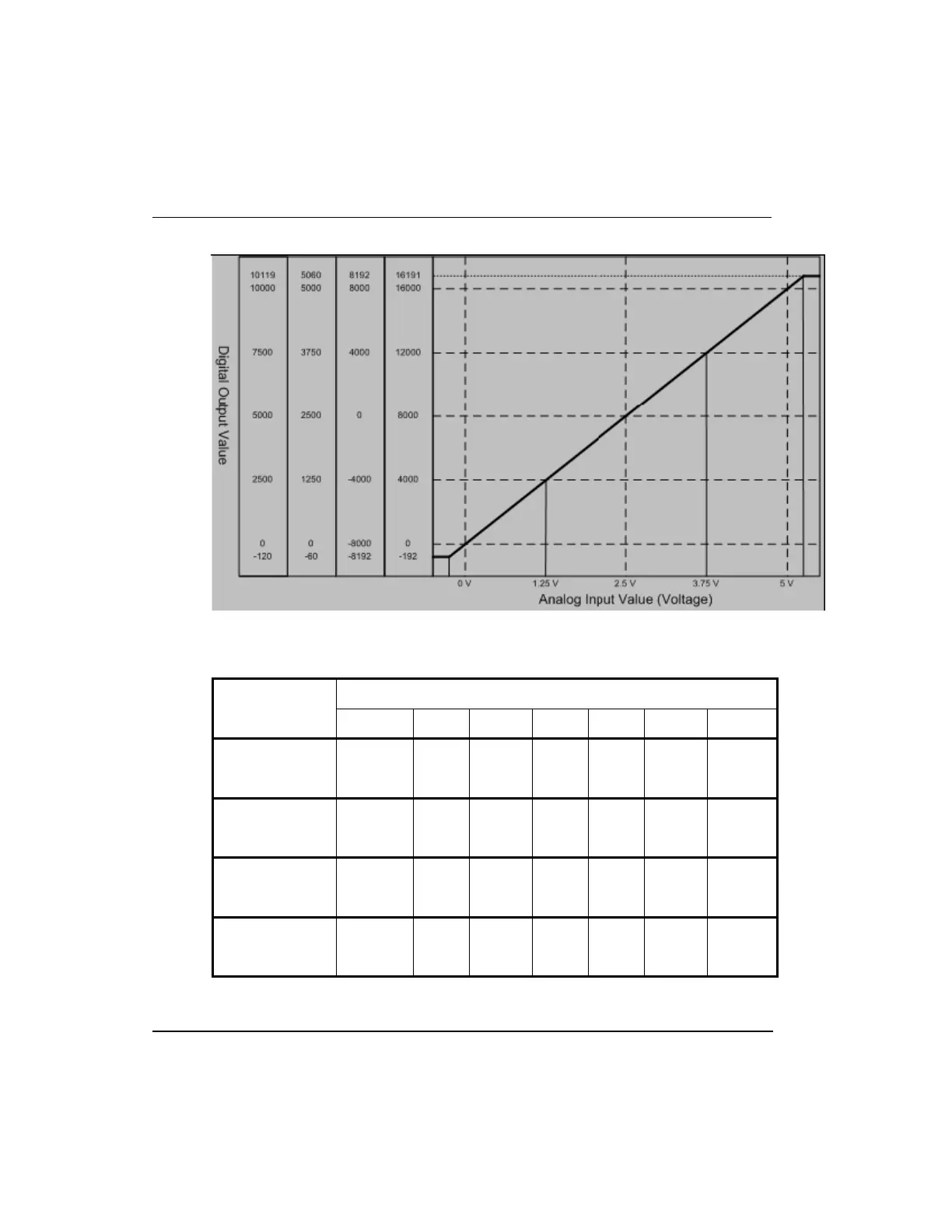

Digital output value for voltage input characteristics is as specified below.
(Resolution (based on 1/16000): 0.3125mV)
Digital output
range
Analog input voltage (V)
-0.06 0 1.25 2.5 3.75 5 5.05
Unsigned value
(-192 ~ 16191)
-192 0 4000 8000
1200
0
16000 16191
Signed value
(-8192 ~ 8191)
-8192
-
8000
-4000 0 4000 8000 8191
Precise value
(-60 ~ 5060)
-60 0 1250 2500 3750 5000 5060
Percentile value
(-120 ~ 10119)
-120 0 2500 5000 7500 10000 10119
3. If the range is DC 0 ~ 10V
