Extinguishing Control Computer 8010 – 19-Inch
FB 798955.GB0 / 09.07 41

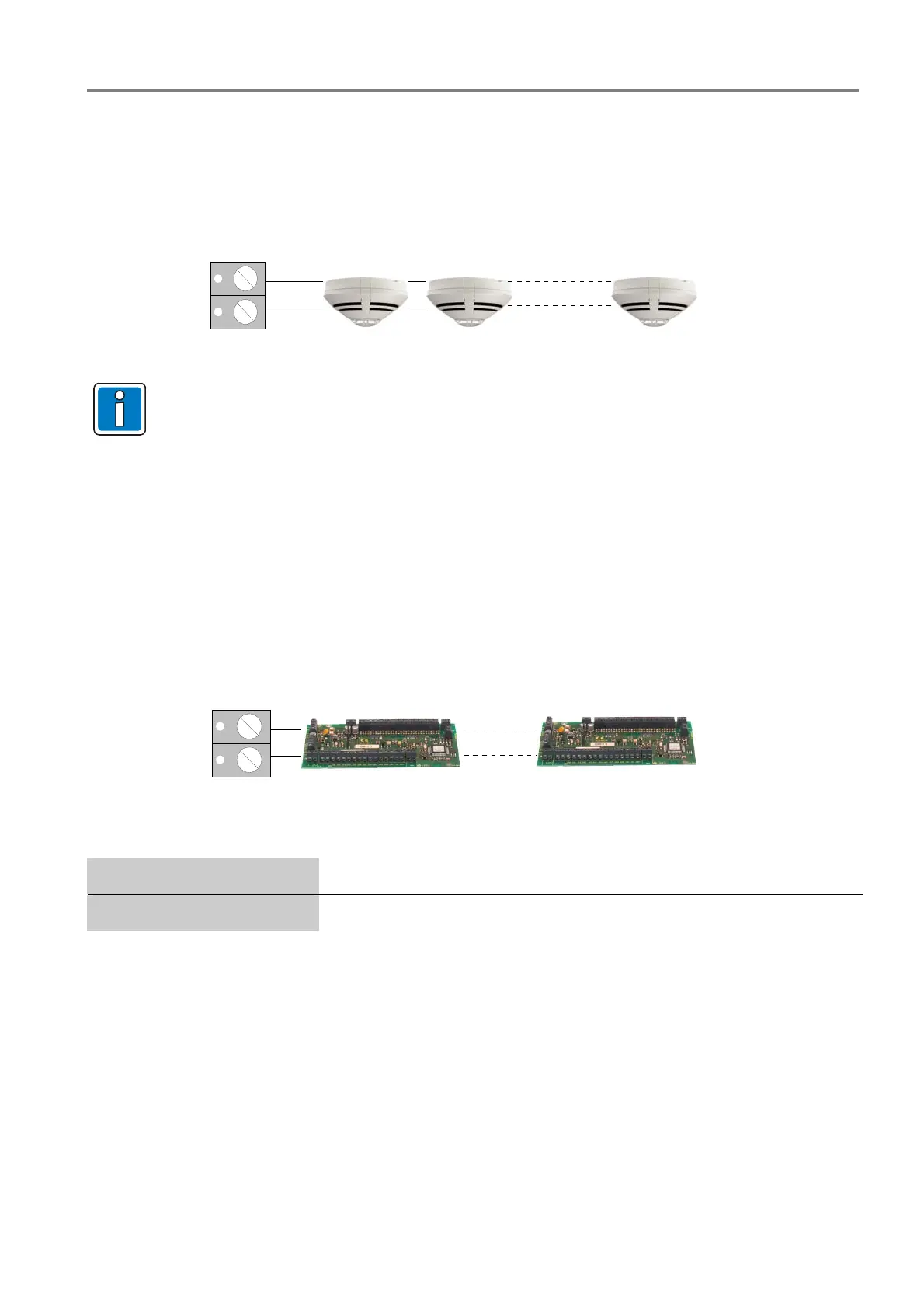

Automatic Fire alarm detectors series 9200 / IQ8Quad (only LMST 8010 - series 3)
Connection of max. 30. automatic Fire alarm detectors series 9200 (with integrated isolator in the detector base)
or 30 Fire alarm detectors IQ8Quad without alarm device (isolator integrated by factory default) per detector
zone.
+
-
Detector zone X
Only fire alarm detectors series 9000 could be connected to the detector zone inputs 1 to 8 of
the
Extinguishing Control Computer 8010 - series 2.
esserbus
®
transponder (only LMST 8010 - series 3)
Required operation mode programming Î esserbus
®
-zone
Connection of max. 30 esserbus
®
transponders (with isolator board) per detector zone input. The total number
of outputs must not exceed 1000 outputs per Extinguishing Control Computer. Connected esserbus
®
transponders must be programmed as an esserbus
®
zone in the customer data.
+
-
Detector zone X
Connectable esserbus
®
transponders:
Part No. 808610 / 808610.10
esserbus
®
transponder 12 relays
Part No. 808611 / 808611.10
esserbus
®
transponder 32 Optocoupler
