132 N4680 2D Decoded Scan Engine User Guide
PDF417

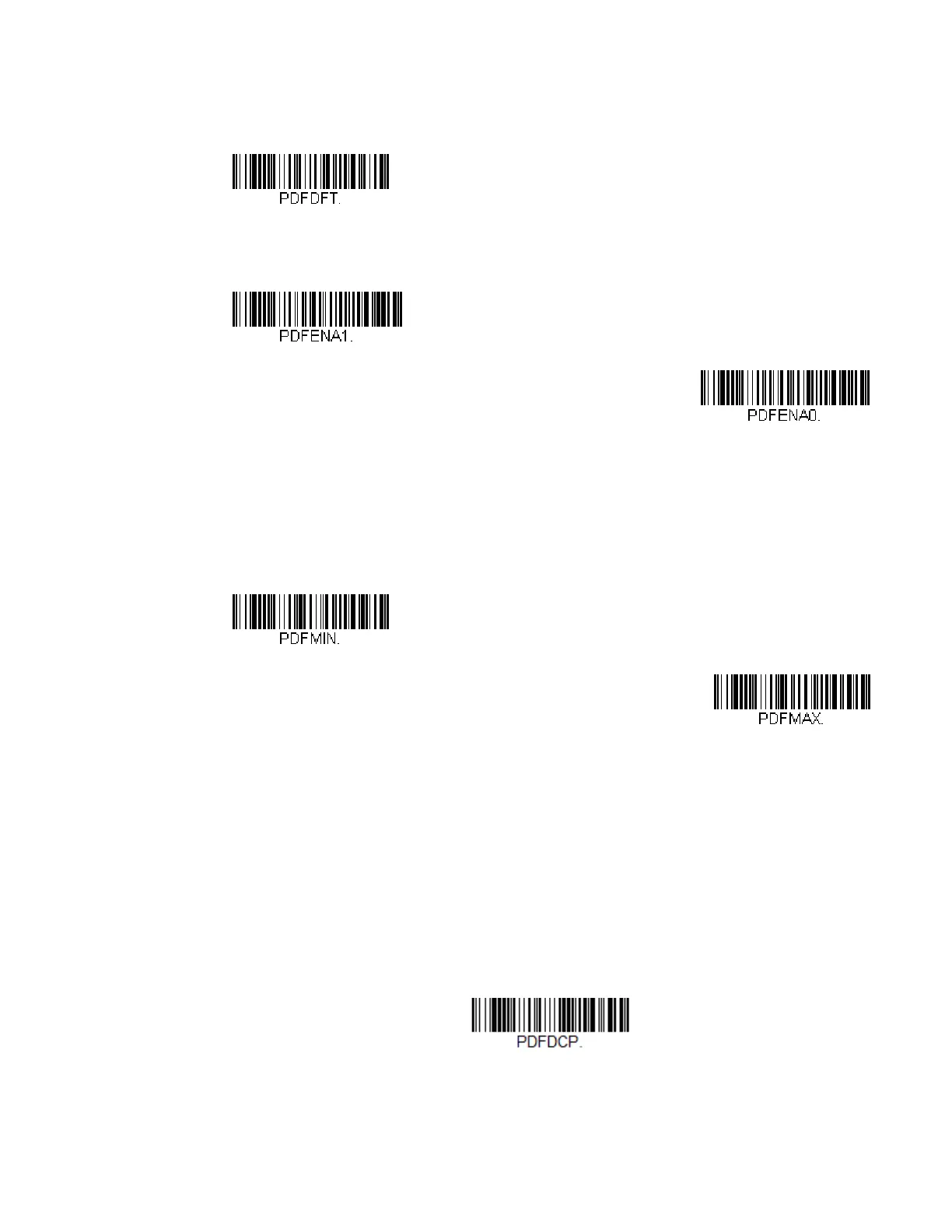

< Default All PDF417 Settings >
PDF417 On/Off
PDF417 Message Length
Scan the bar codes below to change the message length. Refer to Message Length
Description (page 86) for additional information. Minimum and Maximum lengths
= 1-2750. Minimum Default = 1, Maximum Default = 2750.
PDF417 Code Page
PDF417 Code pages define the mapping of character codes to characters. If the
data received does not display with the proper characters, it may be because the
bar code being scanned was created using a code page that is different from the
one the host program is expecting. If this is the case, scan the bar code below,
select the code page with which the bar codes were created (see ISO 2022/ISO 646
Character Replacements on page 222), and scan the value and the Save bar code
from the Programming Chart on the inside the back cover of this manual. The data
characters should then appear properly.
To Next Page
