134 N4680 2D Decoded Scan Engine User Guide
MicroPDF417 Code Page
MicroPDF417 Code pages define the mapping of character codes to characters. If
the data received does not display with the proper characters, it may be because
the bar code being scanned was created using a code page that is different from

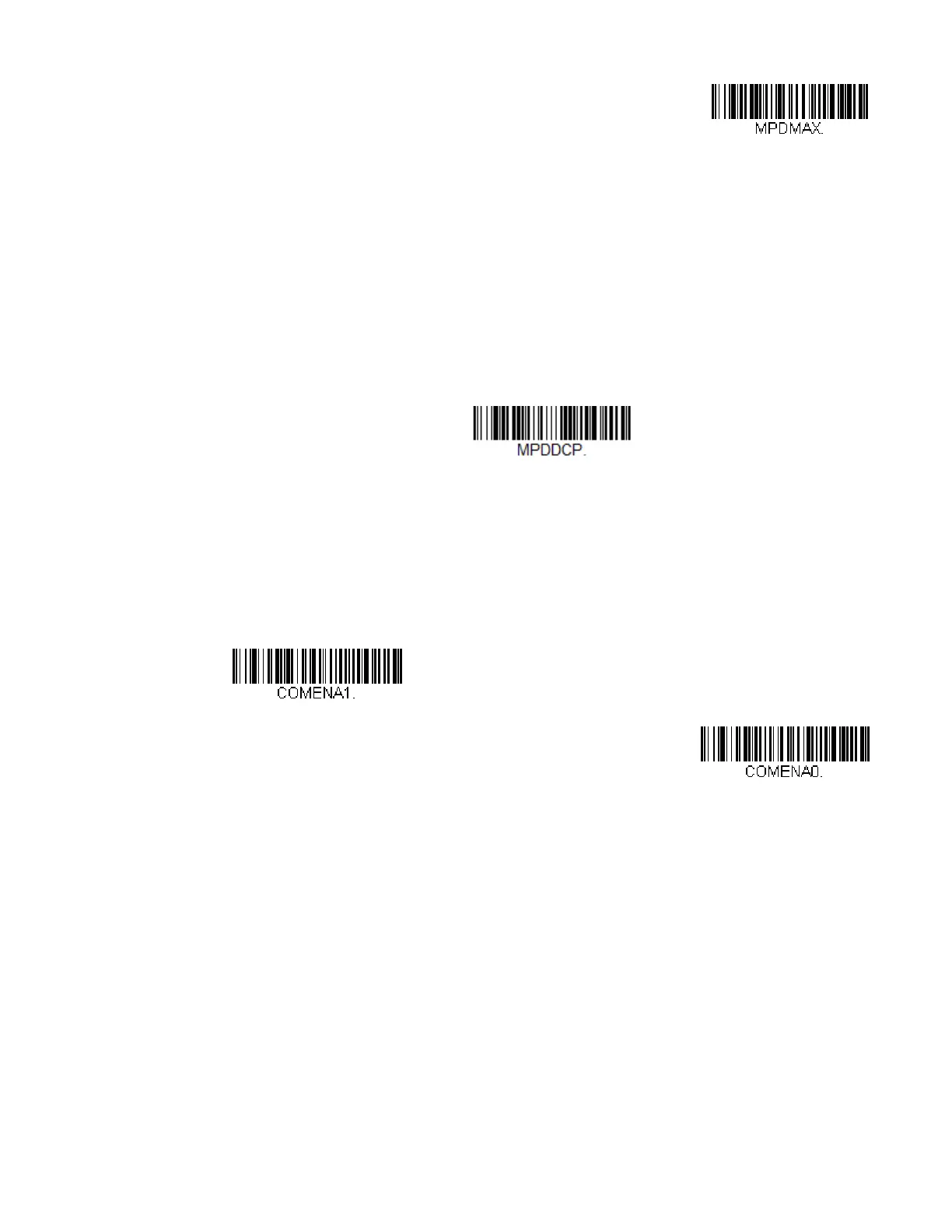

the one the host program is expecting. If this is the case, scan the bar code below,
select the code page with which the bar codes were created (see ISO 2022/ISO 646
Character Replacements on page 222), and scan the value and the Save bar code
from the Programming Chart on the inside the back cover of this manual. The data
characters should then appear properly.
GS1 Composite Codes
Linear codes are combined with a unique 2D composite component to form a new
class called GS1 Composite symbology. GS1 Composite symbologies allow for the
co-existence of symbologies already in use. Default = Off.
To Next Page
